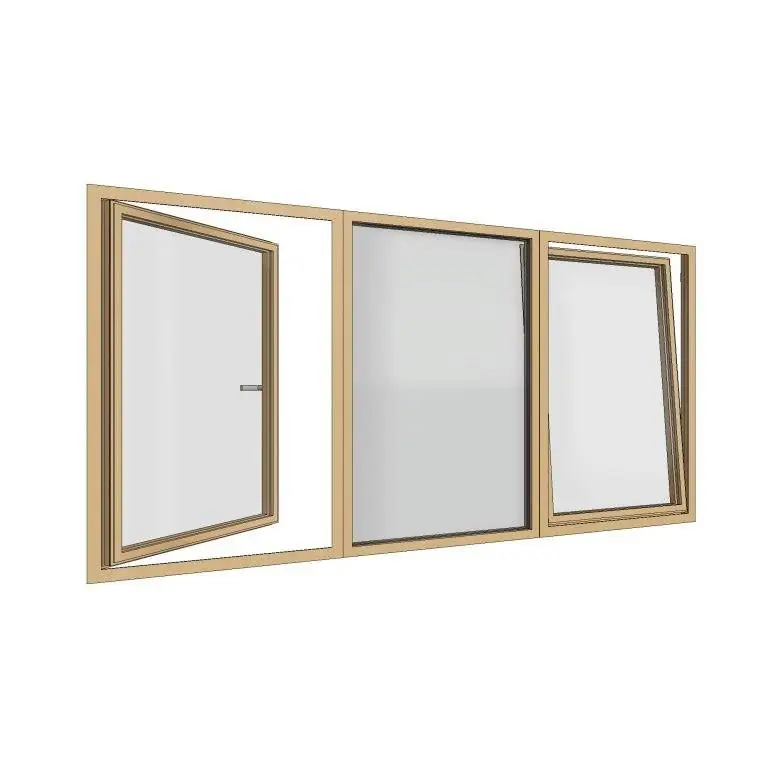

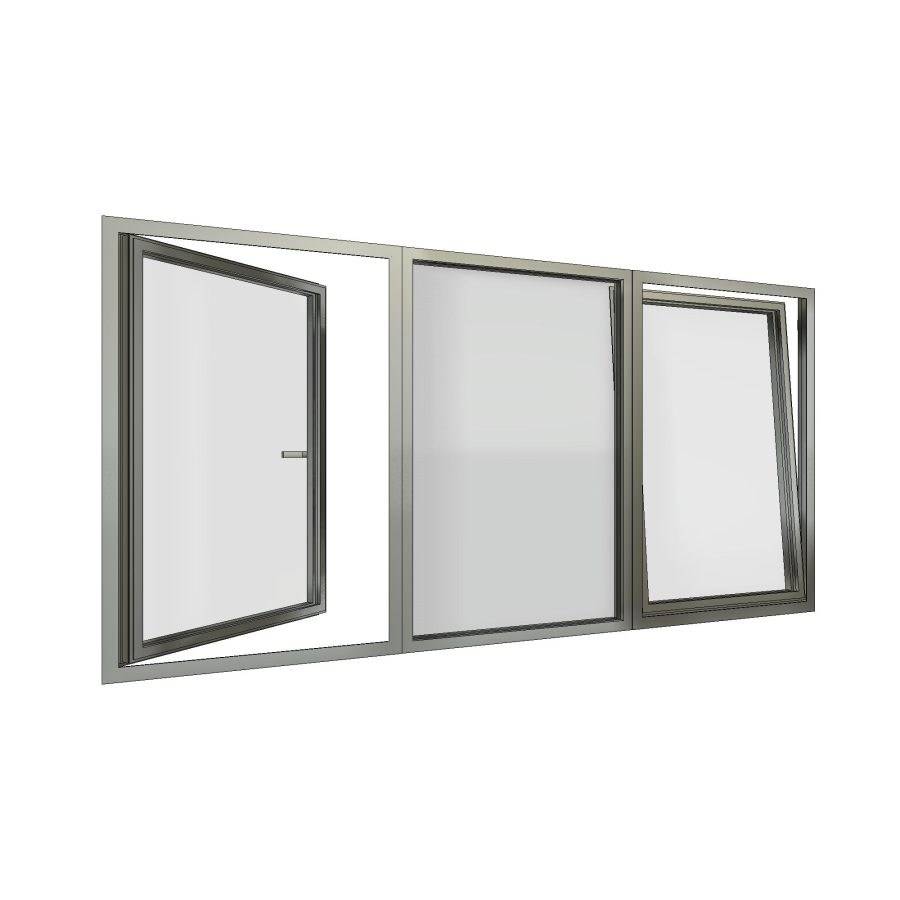

Triple sash window, is a type of window that can have 1,2 or 3 operable sashes. A tilt and turn window can open inward from side hinges or tilt inward at the top like a hopper window. It can be also fitted with fixed window. Rain protection and draft-free ventilation are both provided by the tilt position. Tilt & Turn windows operate as casement windows in the turn position, swinging their entire glass surface open. Available in quadruple, triple, or double glazing.
pw series double wood windows
Wooden frames look beautiful on any property and are very eye-catching.
Compared to uPVC, windows with wooden frames are significantly more environmentally friendly. Because wood is naturally insulating, it helps keep the heat inside your home.
In consequence, this lowers carbon emissions and consequently your electricity bill while maintaining a comfortable indoor temperature in your home.
Our windows and doors are built to be energy efficient.
Our energy-efficient windows and doors keep heated and cooled air inside your homes, saving you money on your monthly energy bills.
It depends on the type of window you replace and your climate. Energy Star studies show double pane versus single pane windows can reduce energy costs by 21% to 31%
The most environmentally friendly window material is wood. Windows today require little maintenance, whether they are PVC-u or factory-finished wood.
They only require a yearly cleaning of the frames and lubrication of the hardware. Factory-finished wood windows will require an initial fresh coat of paint after about ten years, depending on exposure conditions. On the other hand, uPVC windows do not require re-coating but will eventually lose their finish.
The natural insulating properties of wood help to maintain a comfortable indoor temperature. To keep wooden window frames in good condition, they need to be weatherproofed on a regular basis.
Used where no thermal barrier is needed, especially indoors
Standard window and balcony door glazing with increased efficiency starting with Ug as low as 0.18
Passive house high efficient energy saving, increased security and decrease of noise
| Specification | A series | C series | S series | Steel | Wood |
|---|---|---|---|---|---|
| Thermal Uw values up to | 0.15 | 0.15 | 0.13 | 0.20 | 0.14 |
| Passive option | ✔ | ✔ | ✔ | ✔ | |
| Hidden sash | ✔ | ✔ | ✔ | ||
| Nailing Flange | ✔ | ✔ | ✔ | ||
| Max dimensions of single panel (in inches) | |||||
| Fixed window | 142 x 110 | 142 x 110 | 142 x 110 | 110 x 98 | 71 x 98 ½ |
| Operable window | 67 x 118 | 59 x 102 | 59 x 102 | 55 x 90 ½ | 55 x 67 |
| Swing doors | 55 x 118 | 59 x 106 | 50 ½ x 97 | 35 ½ x 94 ½ | 43 ½ x 98 ½ |
| Sliding doors | 130 x 126 | 157 ½ x 157½ | 118 x 106 | – | 128 x 106 |
| Range of glazing panes | 1 – 4 | 1 – 3 | 2 – 4 | 1 – 3 | 2 – 3 |
● Choose double or triple pane glazings
● Wide range of acoustic and security glazing possibilities
● Contemporary design
● Glass Corner option
● Variety of lacquer and oil colors
● Tilt first option – free to tilt, key needed to swing
● Hiden hinges available
● True aluminum Clad options in variety of styles
A77, A70, Superial
A77, A70, S80
R series Pivot Doors
Pvc S series
Interior, Exterior
