A Structural Efect

Semistructural mullion/transom curtain wall

The EFECT system is used for the construction of lightweight curtain walls of a hanging and filling type as well as roofs, skylights and other spatial constructions.

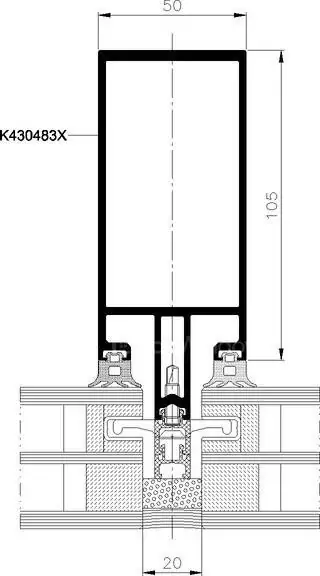

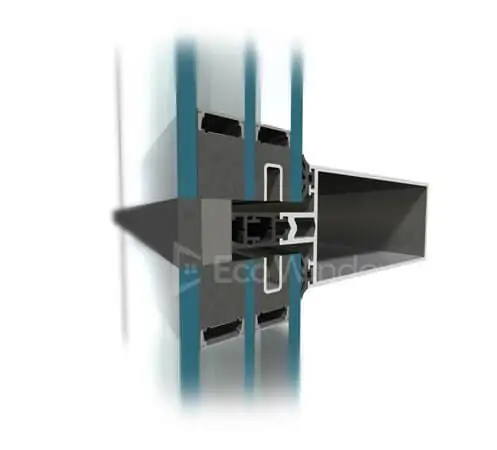

Efect is a façade that provides a uniform external appearance of a smooth glass wall divided by the structure of vertical and horizontal lines of 2 cm, thanks to the use of a special system for fixing panes to mullions and transoms. The gaps between glass fields of the façade are filled with a special silicon binder to ensure high tightness of the construction and enhance its insulation properties.



  • ● angle joints enabling the free shaping of aluminium structures
  • ● posts and beams with ‘sharp’ edges allowing construction of curtain wall supporting structures with the appearance of a uniform truss
  • ● aesthetic curtain wall varieties and a number of lining profiles of various shapes providing multiple curtain wall appearances
  • ● a large choice of curtain wall opening elements: windows and doors of various types, including skylight windows and windows integrated with the curtain wall, as well as tilt and parallel opening windows
  • ● a wide glazing range along with the availability of insulators and accessories allowing a high level of curtain wall thermal insulation
  • ● the possibility of bending profiles and creating use curved structures

Specification

Depth of frame2 3/8
Depth of leaf2 3/4
Glazing rangeframe: up to 1 5/8
sash: up to 2

Size & Weight Limitations

Maximum size (H×W)H to 94 1-2 W to 49
Max weight lbs286
Air Permeabilityae 1200, eN 12152
WatertightnessRe 1500, eN 12154
Windload resistance2,4 kN/m², eN 13116
Thermal insulation (Uf)from 1,0 W/(m²K)

We offer high variety of Aluminum windows and doors. Every order is custom made according to our customers requirements. Our modern construction solutions make it possible to create extremely large g lazed areas and improve building design and interior décor not available with most of our competitors, for example 25’ W x 9’H lift and slide doors. We have almost an unlimited potential in terms of both colors and their different shades for our aluminium components. Another key benefit for our products are the components utilizing multi point locking. This is achieved through a link gear running around the window sash, which operates pins which in turn lock into keepers located around the perimeter of the sash opening. Depending on the size of sash used, there can be up to twelve locking points on any one sash. In doors a six-point lock is used. This comprises of four compression roller pins, one latch and one dead bolt. All the locks on any one sash are operated by one lever and secured by one key. Further this creates insulating advantage as an even sash seal is achieved as well as enhanced security. Pleae note we can perform the installation or assit our customer in an installation consult capacity.

Eco Windows USA provides top quality window and door solutions in Brass, Steel, Aluminum, Wood and PVC. With a capacity of producing over 5000 windows per day our systems are highly customizable, allowing for almost unlimited possibilities to arrange elevations and building interiors for both residential and commercial use. Our brand of window and door carpentry is produced by combining precisely selected materials, premium German hardware, latest technologies and long-term experience in production. We provide CAD design support as well as complete installation services.
