Eco C52 SST - Facade system

Great thermal braking

Thermal insulation Uf

Ucw from 0,8 (W/m²K)

Air tightness window

(EN 12152) CLASS AE

Watertightness

(EN 13114) CLASS RE1500

Wind tightness

(EN 13116) APT

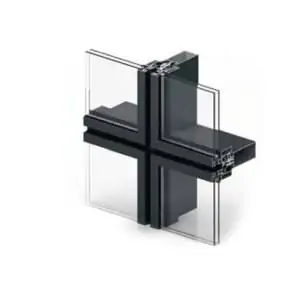

A new generation of facade consisting of a base system with an ample range of mullions and transoms that provides answers to the different style and construction needs for architectural projects.

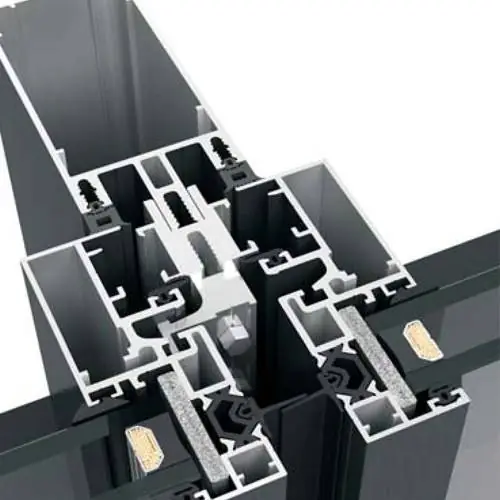

With this C52 SST facade, the glass is mechanically fixed to a perimetral frame and thanks to the existence of an external trim that ensures the stability of the glazing, there is no need for a chemical fixing with structural silicone which is needed with the C52 ST system.

lts external aspect is that of an open channel with an aluminium surrounding around the glass and the first weather barrier being an EPDM gasket which is installed around the perimeter of each module. .

Share on facebook
Facebook
Share on pinterest
Pinterest
Share on linkedin
LinkedIn

Specification

  • Key features
  • Technical Specifications
  • Performance

» Wide variety of mullions (from 16 to 230 mm) and transoms  (from 22,5 to 205,5) that solve the different aesthetic and constructive needs of the architectonic sector

» Internal seen section 52 mm

» Extensive profile range, their mechanical unions allows for all types of façades to be built (vertically, inclined, 90° corners, corners, polygonal) as well as solving large and heavy glazing modulations

» Water tightness elements: drainage pipettes, tear strip gaskets and vulcanized angles

» Mechanical union to the aluminum frame. Outside cover profile (embellisher)

» This system offes a EPDM  gasket system which is installed around the perimeter of each module

» Glazing

Maximum glazing 28 mm*
Mínimum glazing 6 mm

*Consult us for greater thicknesses


» Opening possibilities

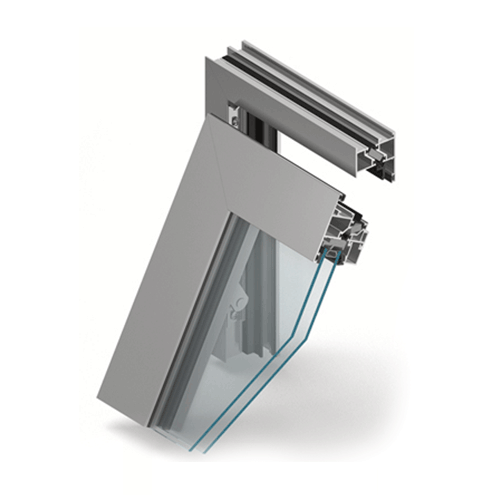

Hidden Top Hung

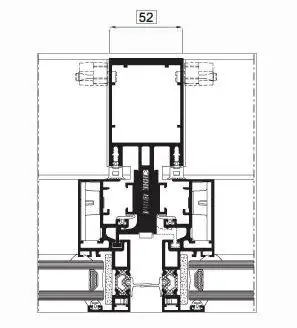

» Sections

Mullion 52 mm
Transom 52 mm



» Profile thickness

Mullion 2,1 & 3 mm
Transom 2,1 mm



» Polyamide strip length

18 mm



» Minimum / Maximum opening dimensions

Min. Width (L) = 500 mm
Min. Height (L) = 650 mm
Max. Width (L) = 2500 mm
Max. Height (H) = 2500 mm


» Maximum weight / sash

180 Kg


» Maximum weight of fixed lights

350 kg
Air Permeability
(EN 12152) CLASS AE
Watertightness
(EN 13114) CLASS RE1500
Wind load resistance
(EN 13116) APT
Thermal insulation (Uf)
Ucw from 0,8 (W/m²K)
Maximum acoustic insulation
