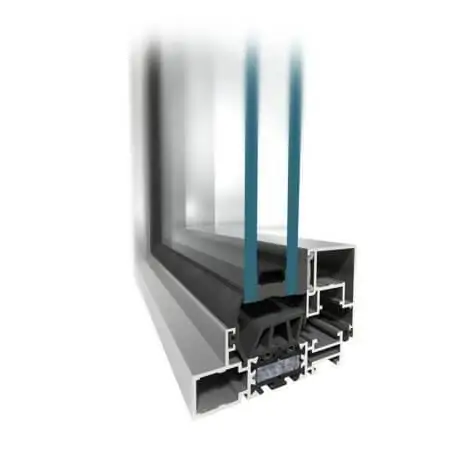

A SLIMLINE - Aluminum System with slim profile

ALUMINUM SYSTEM WITH SLIM PROFILE

HIGH RESISTANCE TO WATER & AIR INFILTRATION

The A SLIMLINE is a great choice if you care about prolonged durability of the product, excellent statics and endurance of the structure. The A SLIMLINE will provide excellent parameters, aesthetic appearance, functionality, and it will serve you for a very long time. The system is also suitable for those who want to use it to replace old-type windows made of steel profiles. They provide a similar appearance from the outside, and they significantly increase the thermal insulation of the partition.



● High resistance to water & air infiltration, plus an
excellent thermal insulation can be obtained thanks
to the special shape of the central gasket
● Excellent thermal insulation Uw from 0.14
● Glazing range up to 2 5/16
● The construction method is maximally simplified
● Profile connections (corner & T-connections)
are performed by bolting or studding

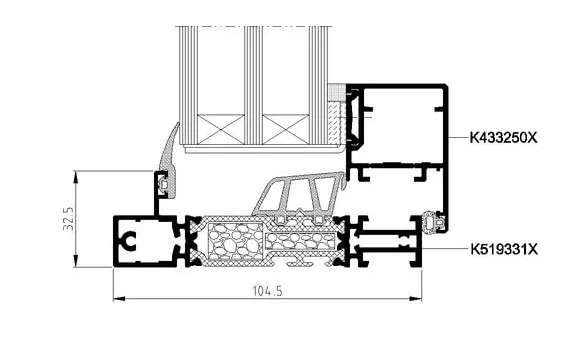

Depth of frame2 10/16 to 4 11/16
Depth with leaf3 1/16
Glazing rangeup to 2 13/16
Maximum size (W×H)
94 1/2 x 63
Max weight331 lbs



Depth of frame3 1/16 to 5 11/16
Depth with leaf3 15/16
Glazing rangeup to 3 3/16
Maximum size (W×H)
94 1/2 x 63
Max weight331 lbs



BTU
0,14
Air Permeability
(EN 12207:2000) CLASS 4
Watertightness
(EN 12208:2000) CLASS 7A* / 9A**
Wind load resistance
(EN 12210:2000) CLASS C3* / C4**
Thermal insulation (Uf)
from 0,9 (W/m²K)
Maximum acoustic insulation
Rw=43 dB

*Reference test : Balcony 4,00 x 3,00 m. 2 sashes.

**Reference test : 4,00 x 3,00 m. 1 sash + 1 fixed
