Eco C52 SG - Facade system

A new generation of facades

Thermal insulation Uf
from 0,6 W/(m2K)
Air tightness window
class AE
Watertightness
class RE1500
Wind tightness
class APT

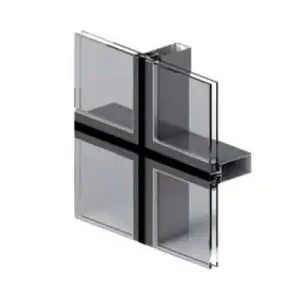

A new generation of facade consisting of a base system with an ample range of mullions and transoms that provides answers to the different style and construction needs for architectural projects.

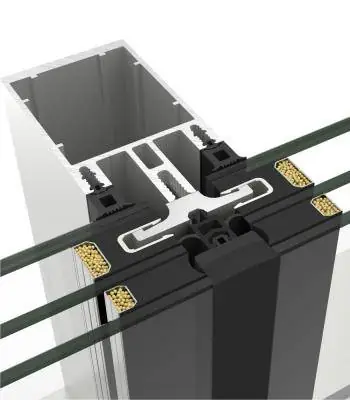

ECO C52 SG facade is a traditional system, also known as the Stick system. The fixing of the glazing to the supporting
profiles is carried out by using clips. This system requires an insert that is fitted in to the glazing chamber (U profile). The combination of the clip and the insert allows the glass to fastened on all four sides.

Great thermal breaking, together with an ample glazing capacity of up to 44 mm with glass compositions of large thicknesses and energy efficiency, gives to this new range of facades many excellent thermal and accoustic features.

Share on facebook
Facebook
Share on pinterest
Pinterest
Share on linkedin
LinkedIn
» Wide variety of mullions (from 16 to 230 mm) and transoms  (from 22,5 to 205,5) that solve the different aesthetic and constructive needs of the architectonic sector

» Internal seen section: 52 mm

» Extensive profile range, their mechanical unions allows for all types of façades to be built (vertically, inclined, 90° corners, corners, polygonal) as well as solving large and heavy glazing modulations

» Water tightness elements: drainage pipettes, tear strip gaskets and vulcanized angles

» The fixing of the glazing to the supporting profiles is carried out by using clips.  This system requires an additional profile that is fitted into the glazing chamber (U profile)

» Glazing

Maximum glazing 64 mm*
Mínimum glazing 6 mm

*Consult us for greater thicknesses


» Opening possibilities

Hidden Top Hung

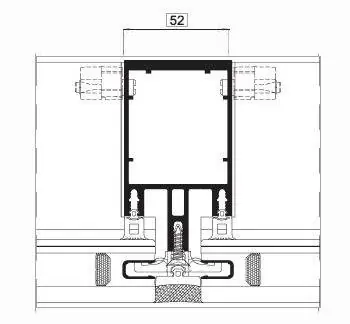

» Sections

Mullion 52 mm
Transom 52 mm



» Profile thickness

Mullion 2,1 & 3 mm
Transom 2,1 mm



» Polyamide strip length

6, 12 & 30 mm stackable profiles



» Minimum / Maximum opening dimensions

Min. Width (L) = 500 mm
Min. Height (L) = 650 mm
Max. Width (L) = 2500 mm
Max. Height (H) = 2500 mm



» Maximum weight / sash

180 Kg


» Maximum weight of fixed lights

400 kg
Air Permeability
(EN 12152) CLASS AE
Watertightness
(EN 13114) CLASS RE1500
Wind load resistance
(EN 13116) APT
Thermal insulation (Uf)
Ucw from 0,6 (W/m²K)
Maximum acoustic insulation
