S120LS - PVC S Series
Sliding Door System
THE TRIPLE THERMALLY BROKEN
LIFT AND SLIDE DOORS
PVC sliding door systems offer a range of benefits that make them a popular choice for both residential and commercial applications.
- Energy Efficiency: PVC sliding doors provide excellent thermal insulation, helping to regulate indoor temperatures and reduce heating and cooling costs. Their insulating properties help keep heat in during the winter and out during the summer, enhancing the overall energy efficiency of buildings.
- Durability: PVC sliding doors are highly durable and resistant to rot, corrosion, and pests, making them ideal for use in various environments, including coastal areas where exposure to saltwater and humidity can be a concern. They are also less prone to warping or fading over time compared to wooden doors, ensuring long-term performance and appearance.
- Low Maintenance: PVC sliding doors require minimal maintenance, as they do not need to be painted, stained, or sealed like wooden doors. They can be easily cleaned with soap and water, making them a convenient and hassle-free option for busy homeowners and commercial property managers.
- Design Versatility: PVC sliding door systems come in a variety of styles, sizes, and configurations to suit different architectural preferences and space requirements. Whether you prefer a traditional or contemporary design, there are PVC sliding doors available to complement any aesthetic and enhance the visual appeal of your home or building.
- Smooth Operation: PVC sliding doors are designed for smooth and effortless operation, allowing for easy opening and closing with minimal effort. Their sleek and modern design adds a touch of elegance to any space while providing seamless access to outdoor areas like patios, decks, or gardens.
- Noise Reduction: PVC sliding doors offer excellent sound insulation, helping to minimize outside noise and create a quieter and more peaceful indoor environment. This can be particularly beneficial for homes located in busy urban areas or near highways, airports, or other sources of noise pollution.

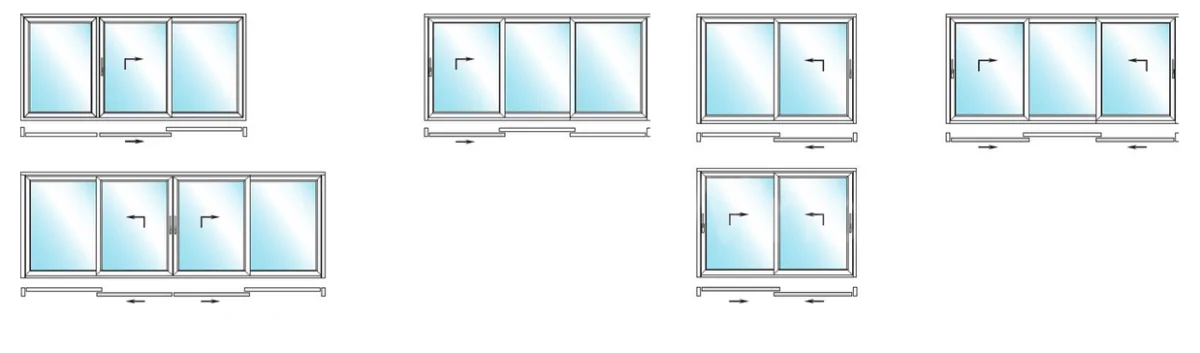

opening possibilities
Triple-insulated threshold eliminates the risk of “cold areas”

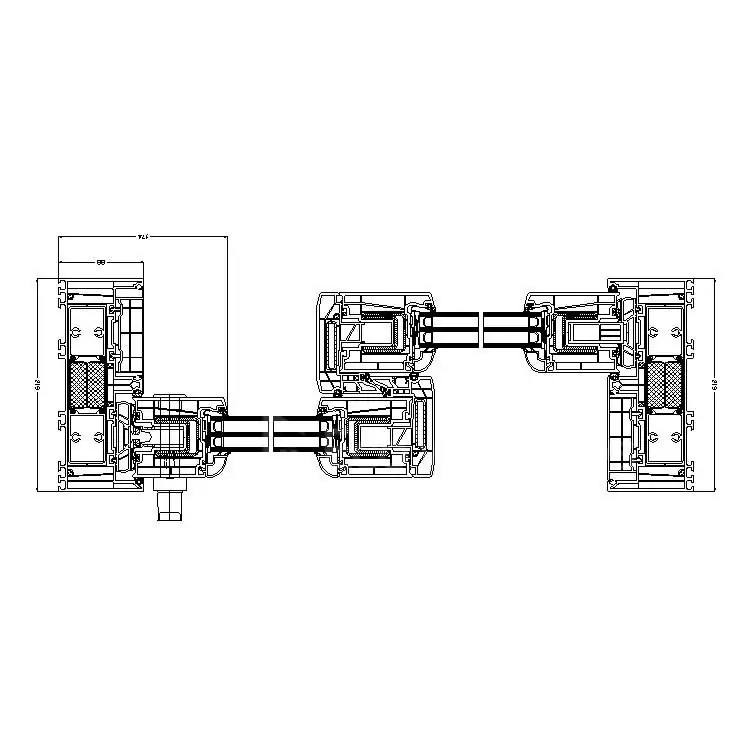

Thermally-insulated frames and sashes with a depth of 3-1⁄4″
Record-low thermal transmittance coefficient: Uw = 0.114 BTU/(h·ft²·°F) or Uw = 0.65 W/(m²K)
Maximum construction size: 225″ × 110″
1⁄64″ thin seal
SwisSpacer warm edge spacer
Slim design and maximum sash sizing guarantee comfort and optimal light access
Available in a wide range of products
| Specification | Standard | Metric (mm) |
|---|---|---|
| Depth of frame | 4″ | 101.6 mm |
| Depth with leaf | 3½” | 88.9 mm |
| Glazing range | up to 2″ | up to 50.8 mm |
| Maximum size (W × H) | 126″ × 106″ | 3200 mm × 2692 mm |
| Max weight | 880 lbs | 399 kg |
| Thermal permeability of the frame Uf | 0,90 – 0,76 W/m2.K |
| Thermal permeability of glass Ug | 1,1 – 0,5 W/m2.K |
| Total transfer heat Uw | Uw = 0.114 BTU/(h·ft²·°F) or Uw = 0.65 W/(m²K) |
