A70US - Aluminum windows

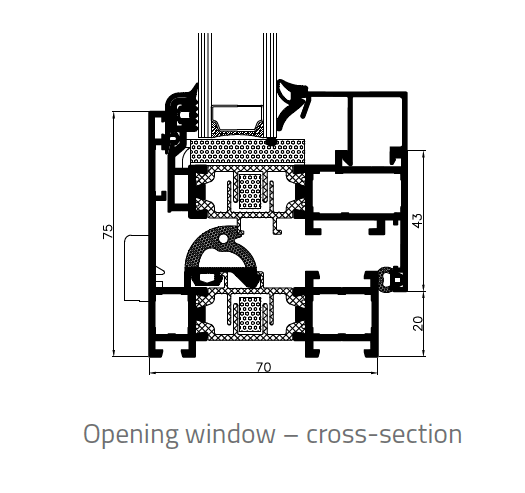

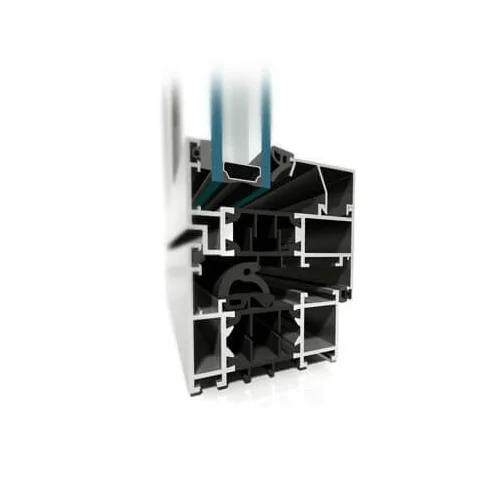

HIGH EFFICIENT CONSTRUCTION – HIDDEN SASH SYSTEM

System is designed for windows with high thermal insulation parameters. High efficiency was achieved by applying special thermal inserts slid between thermal separators and around the glass pane. There is an option of installing windows in facade systems or store fronts as well. Window system is available with hidden hinges and variety of hardware options. For those who value time and simplicity we recommend using additional Nailing Flange profile. Special fin is designed for simple and quick installation. This profile is frequently used by customers with additional trim resulting in further material and labor savings.

  • ● Various operation types
    ● Safety locking
    ● Steel look like industrial options
    ● Large size door constructions available
    ● Hidden sash option
    ● Secure options, providing burglar resistance
    ● Multitude of finish options
    ● Dual color options
    ● Glazing up to 2 1/3 in
    ● Multi-point locking
Depth of frame2 3/4
Depth with leaf3 1/8
Glazing rangeup to 2 7/16
Maximum size (W×H)
4 1/2 x 63
Max weight287 lbs



BTU
0,18
Air Permeability
(EN 12207:2000) CLASS 4
Watertightness
(EN 12208:2000) CLASS 7A* / 9A**
Wind load resistance
(EN 12210:2000) CLASS C3* / C4**
Thermal insulation (Uf)
from 0,9 (W/m²K)
Maximum acoustic insulation
Rw=43 dB

*Reference test : Balcony 4,00 x 3,00 m. 2 sashes. **Reference test : 4,00 x 3,00 m. 1 sash + 1 fixed
