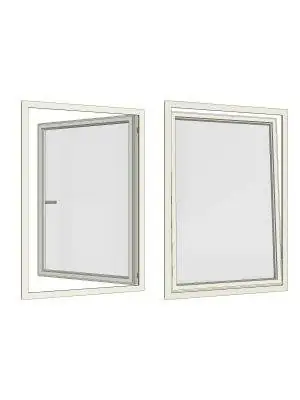

A tilt and turn window can open inward from side hinges or tilt inward at the top like a hopper window. Rain protection and draft-free ventilation are both provided by the tilt position.
Tilt & Turn windows operate as casement windows in the turn position, swinging their entire glass surface open. Available in quadruple, triple, or double glazing.
S series dual action PVC windows
INTEGRATED NAILING FLANGE PROFILE
available systems
High termal insulation
Excellent thermal insulation
Passive house system
Benefits of PVC windows
uPVC windows, in contrast to wooden windows, are unaffected by wind and rain, or changing weather.
They don’t require much maintenance and can last for up to 50 years or longer without losing their functionality.
Their resistance to extreme weather is largely responsible for their remarkable durability.
Galvanized steel reinforcements are also applied to maintain the structural stability. They provide improved strength, particularly for bigger frame windows. The uPVC coating is protected from harmful UV rays that can cause materials to fade.
According to the U.S. Department of Energy, energy efficient windows offer significant savings.
It depends on the type of window you replace and your climate. Energy Star studies show double pane versus single pane windows can reduce energy costs by 21% to 31%
About PVC Windows
With uPVC windows, energy consumption is reduced, which saves your expenses and contributes to the protection of the precious climate.
New windows provide additional living comfort. Their construction and the materials used provide very effective protection against noise. In addition, the multi-stage seal retains the effects of wind pressure. And the optimal transparency of today’s insulating glass brings a lot of light intensity to the interior.
Our window and door pvc systems, which use multi-chamber technology, offer an extremely low heat transfer value. This effects how much energy you use and how much money you spend on heating and cooling.
Available glazings
Used where no thermal barrier is needed, especially indoors
Standard window and balcony door glazing with increased efficiency starting with Ug as low as 0.18
Passive house high efficient energy saving, inreased security and decrease of noise
Passive house ultra standard. Highest efficiency in savings and decreasing noise
technical specs
| A series | C series | S series | Steel | Wood | |||||||
| Thermal Uw values up to | 0.15 | 0.15 | 0.13 | 0.20 | 0.14 | ||||||
| Passive option | ✔ | ✔ | ✔ | ✔ | |||||||
| Hidden sash | ✔ | ✔ | ✔ | ||||||||
| Nailing Flange | ✔ | ✔ | ✔ | ||||||||
Max dimensions of single panel (in inches) | |||||||||||
| Fixed window | 142 x 110 | 142 x 110 | 142 x 110 | 110 x 98 | 71 x 98 ½ | ||||||
| Operable window | 67 x 118 | 59 x 102 | 59 x 102 | 55 x 90 ½ | 55 x 67 | ||||||
| Swing doors | 55 x 118 | 59 x 106 | 50 ½ x 97 | 35 ½ x 94 ½ | 43 ½ x 98 ½ | ||||||
| Sliding doors | 130 x 126 | 157 ½ x 157½ | 118 x 106 | – | 128 x 106 | ||||||
| Range of glazing panes | 1 – 4 | 1 – 3 | 2 – 4 | 1 – 3 | 2 – 3 | ||||||
