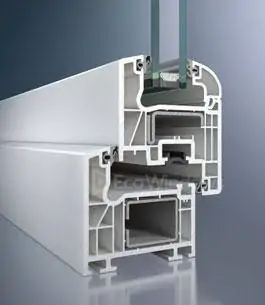

Eco S70 is based on a 5-chamber technology. Excellent thermal insulation properties and narrow face widths in three different vent contours are the distinctive features of this system. An extensive range of accessories ensures a high level of system security.
The two drainage levels guarantee an optimum protection against wind, rain and noise. Profiles can be coloured with a large selection of single colour and woodgrain decorative foils – possible different colors on inside and outside.
● Uw value = 0.21 Btu/(h⋅ft2⋅°F)
● Centre gasket system with three sealing levels for increased burglar resistance
● Design variety in the sash (recessed classic-line | semi-recessed classic-line, soft-line , round-line)
● Tested burglar resistance class RC2
● Concealed drainage is possible
● Excellent sound insulation up to noise
● Additional Nailing Flange profile for easy installation

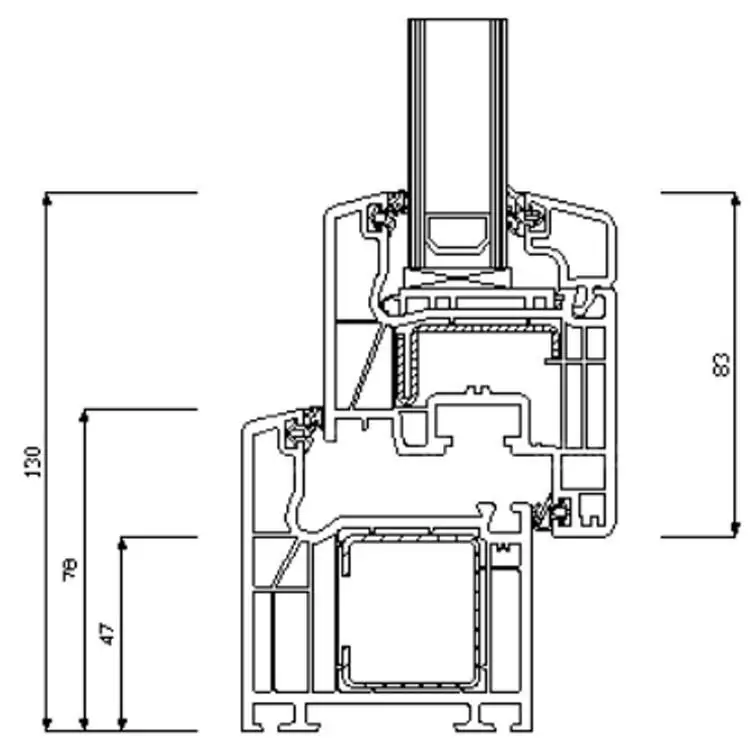

| Depth of frame | 2¾” (70 mm) |
| Depth with leaf | 3⁹⁄₁₆” (90 mm) |
| Glazing range | up to 1⁹⁄₁₆” (40 mm) |
| Maximum size (W×H) | 59¹⁄₁₆” × 102⅜” (1500 × 2600 mm) |
| Max sash weight | 551 lbs (250 kg) |
| Thermal permeability of the frame Uf | 0.79 – 0.73 BTU/(h·ft²·°F) (1.4 – 1.3 W/m²·K) |
| Thermal permeability of glass Ug | 0.62 – 0.28 BTU/(h·ft²·°F) (1.1 – 0.5 W/m²·K) |
| Total heat transfer Uw | 0.12 BTU/(h·ft²·°F) (0.21 W/m²·K) |
