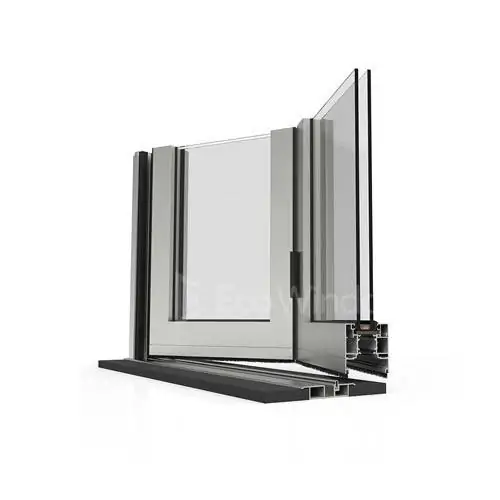

C Fold Line Folding Doors System

EXTREMLY LARGE OPENING OPTIONS

MULTIPLE CONFIGURATIONS AVAILABLE

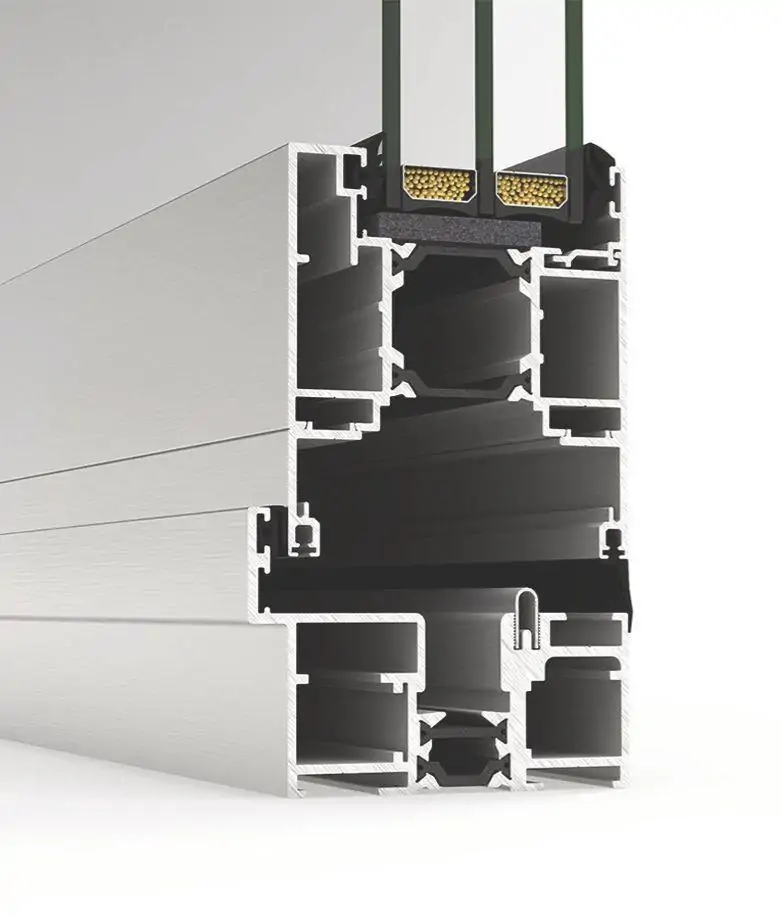

C fold line system with Thermal Break specially designed to cover large openings. Its design is distinguished by its versatility. It has a great range of configuration options of up to 14 panels. Capability of outside and inside opening.

ADA compliant, allows sill to insert be set in pavement or subfloor, leaving the threshold completely hidden. Additionally, the rollers and wheels may be hidden in close position.

opening possibilities

● Silent, smooth operation
● Open in and open out options
● Different types of glazing strips
● Multitude of color options
● Dual color options
● Different thresholds options

Frame and Panel Specifications

SpecificationStandardMetric (mm)
Frame depth2¾″69.85 mm
Panel depth3¹⁄₁₆″77.79 mm
Glazing rangeup to 1¾″up to 44.45 mm

Size & Weight Limitations

SpecificationStandardMetric
Maximum size (WxH)W to 47¼″, H to 118⅛″ (single panel)W to 1200 mm, H to 3000 mm
Maximum weight265 lbs120.2 kg
Specification Value
Transmittance (Uw) ≥ 0.97 W/m²K
Please consult typology, dimensions and glazing
Air permeability
(EN 12207)
Class 4
Water tightness
(EN 12208)
Class 9A
Wind resistance
(EN 12210)
Class A3
Security Test
(PAS 24)
Passed

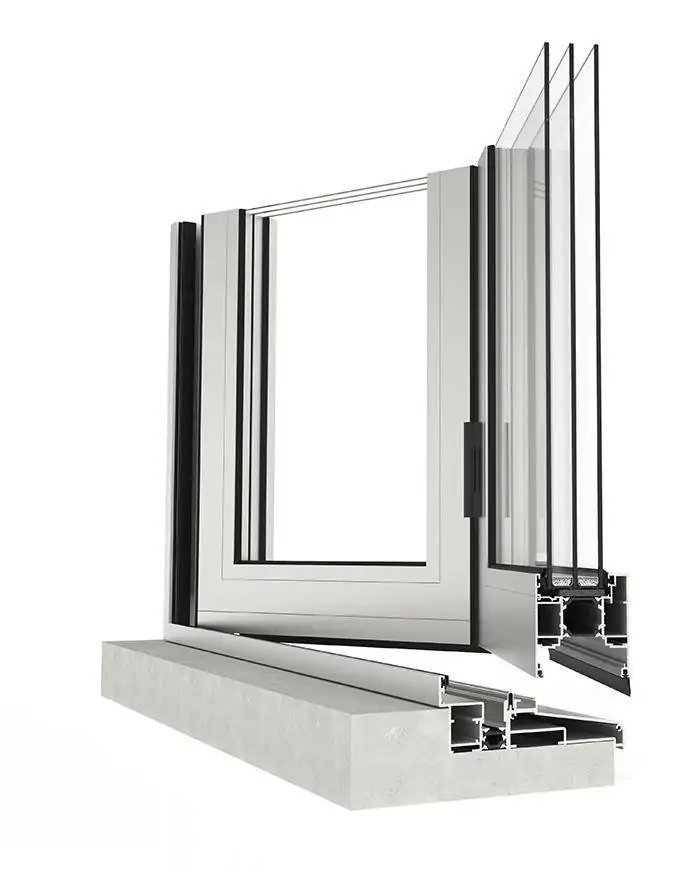

different treshold options
