A Fold Line Folding Doors System

Eliminates the barrier between the interior space and its surroundings.

EFFICIENT CONSTRUCTION WITH UW FACTOR CAPABILITY OF 0.26

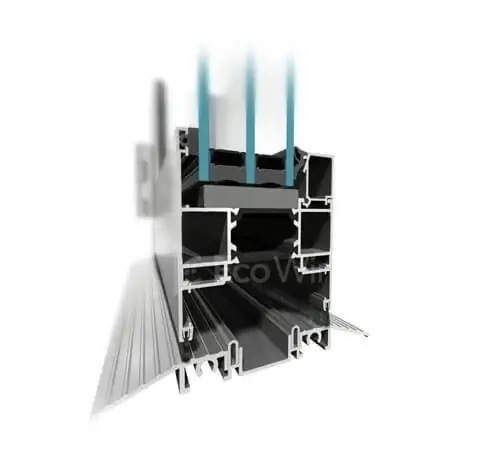

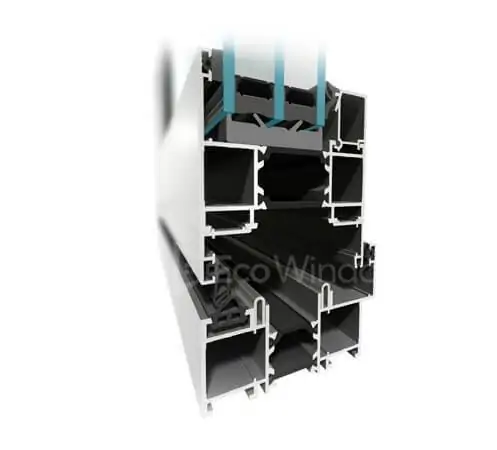

Bi-fold system with Thermal Break, specially designed to cover large openings. Its design is distinguished by its versatility. It has a great range of configuration options of up to 8 panels. Capability of outside and inside opening. ADA compliant, allows sill to insert be set in pavement or subfloor, leaving the threshold completely hidden. Additionally, the rollers and wheels may be hidden in close position. Modern product, designed to meet the high demands of users, architects and owners.

opening possibilities

Folding doors are an excellent choice for maximizing space and creating a seamless transition between indoor and outdoor areas. Ideal for patios, decks, and large openings, folding doors offer flexibility and versatility, allowing you to open up your living space and enjoy expansive views.

Key features

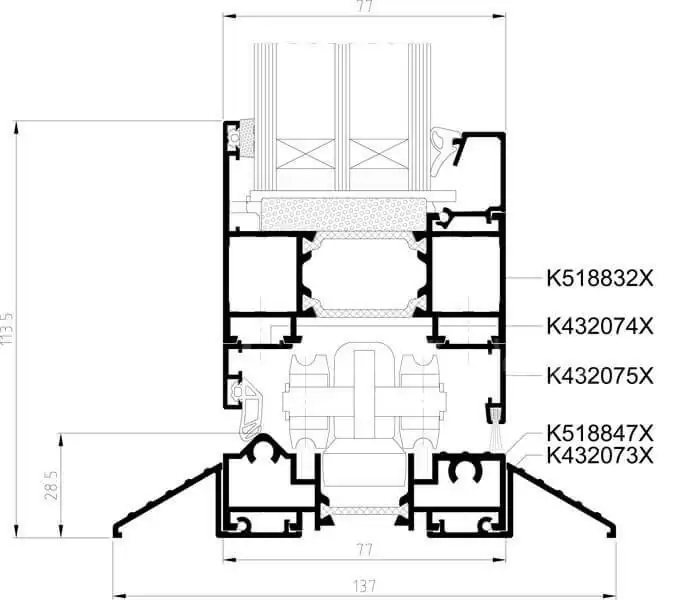

Technical Specifications
Performance

● High resistance to water & air infiltration
● Thermal insulation Uw from 0.26
● Double or triple pane glazing
● Dual color available
● Powder coated + seaside paint available
● Multiple sill profiles
● Multiple opening/folding options
● Textured or smooth finish

Depth of frame	3 3/8
Depth with leaf	3
Glazing range	up to 2 7/16
Maximum size (W×H)	39 3/8 x 106 5/16 (single panel)
Max weight	220 lbs

BTU	0,26
Air Permeability	(EN 12207:2000) CLASS 4
Watertightness	(EN 12208:2000) CLASS 7A* / 9A**
Wind load resistance	(EN 12210:2000) CLASS C3* / C4**
Thermal insulation (Uf)	from 0,9 (W/m²K)
Maximum acoustic insulation	Rw=43 dB

*Reference test : Balcony 4,00 x 3,00 m. 2 sashes.

**Reference test : 4,00 x 3,00 m. 1 sash + 1 fixed

A Fold Line Folding Doors System

0,26

(EN 12207:2000) CLASS 4

(EN 12208:2000) CLASS 7A* / 9A**

(EN 12210:2000) CLASS C3* / C4**

from 0,9 (W/m²K)

Rw=43 dB
