Eco 45 OFFICE DOORS

PARTITION WALLING SYSTEMS

Professional Interior Solutions
The Eco 45 OFFICE systems are dedicated to the fabrication of lightweight, yet solid partition walls in conference rooms and office spaces with clearly marked door entry points. This base system is specifically designed for use in building interiors with low thermal insulation requirements, making it ideal for modern workplace environments that prioritize both aesthetics and functionality in office buildings, corporate headquarters, and commercial facilities.



Structural Glass Partition Technology

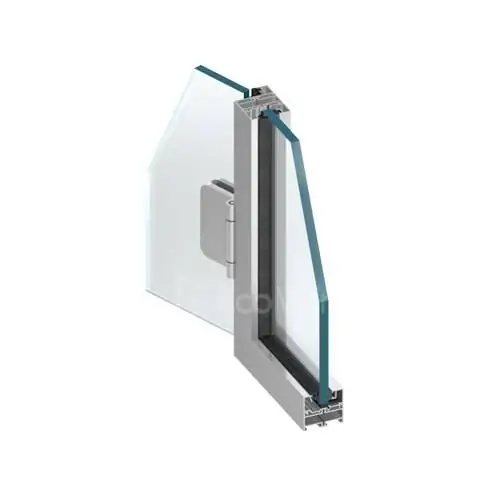

The Eco 45 OFFICE fixed and door-equipped partitioning system is designed to create internal partition walls whose distinguishing feature is their tempered glass pane used as a structural component. The elements of this system enable fabrication of fixed partition walls and all-glass door leaves for hinged and swinging-type doors, creating seamless integration between solid and transparent elements.



Comprehensive System Components
The system features a large selection of profiles and accessories, providing extensive design flexibility and customization options for diverse office applications. This comprehensive component library ensures optimal solutions for varying architectural requirements.

Office Applications & Door Options
Eco 45 is used to fabricate various types of partition walls, windows, doors, including:

  • Manual and automatic sliding doors

  • Swing doors for conference rooms and private offices (available as single and double leaf, open in and open out)

  • Executive office entrances with all-glass components

  • Vestibule systems for building entrances

  • Reception area displays and spatial structures

  • Interior partition systems with clearly defined access points

Installation & Hardware Features

  • Light construction: Easy to install system reduces labor time and costs

  • Hardware flexibility: Mortise hardware option available for enhanced security

  • Swing configurations: Single and double leaf doors with inward and outward opening options

  • Professional installation: Lightweight components facilitate on-site assembly

Enhanced Safety Standards
For specialized workplace safety requirements, the system is available as smoke-proof wall partitions and doors in classes Sm and Sa, fully compliant with EN 13502-2:2008 norms. For more rigorous applications, an Eco 45 system fire rated variant can be used for smoke-resistant partition walls and doors meeting classes S200 and Sa requirements, ensuring comprehensive compliance with commercial building fire codes.



Structural Specifications for Office Doors

  • Door frame depth: 1¾” (45mm)

  • Door leaf depth: 1¾” (45mm)

  • Structural glass: Tempered safety glass serves as load-bearing component

  • Flush alignment: Creates unified appearance between glass partitions and door elements

  • Configuration options: Single and double leaf arrangements with bidirectional swing capability

Workplace Design Features Architectural Flexibility: The system’s ability to bend profiles enables curved office entrances and reception areas, allowing architects to create sophisticated corporate environments with arched doorways and custom spatial elements.



Professional Integration: High-grade EPDM synthetic rubber gaskets ensure acoustic separation between office spaces while maintaining long-term durability essential for commercial applications, particularly important where glass partitions meet door frames.



Office Configuration Options
The extensive selection of profiles and accessories accommodates various office-specific requirements:

  • Automatic sliding doors for ADA compliance

  • All-glass swing doors with structural glazing (single and double leaf)

  • Multiple sealing options for acoustic control between spaces

  • Clearly marked door thresholds for safety identification

  • Variable threshold heights for accessibility requirements

  • Connection with mortise door system for enhanced security

  • Mortise hardware compatibility for professional grade security

Glass Applications in Office Settings

  • Partition walls: Structural tempered glass with varying thicknesses

  • Door leaves: All-glass construction up to 1″ (26mm) thickness

  • Fixed glazing: Up to 1⅜” (35mm) for enhanced acoustic performance

The Eco 45 OFFICE system delivers the professional appearance and operational reliability essential for today’s office environments while providing the design flexibility to create impressive corporate spaces with clearly defined circulation patterns and access points. Its comprehensive component selection, easy installation process, and flexible door configurations ensure optimal solutions for any interior application with low thermal insulation requirements.

  • Light and durable structure

  • Design depth: 45 mm (1¾”)

  • Infill ranging from 2-25 mm (5⁄64″-1″) – dedicated for 8 mm (5⁄16″), 10 mm (⅜”), and 12 mm (15⁄32″) tempered glass panes

  • Various types of partition walls, windows, doors, including manual & automatic sliding doors, swing doors, vestibules, etc.

  • Smoke-resistant door variant available (in Sm and Sa classes)

  • Continuously mounted glazing gaskets, no more cutting at the corners

  • Possibility of changing interior design

  • Adapted to use numerous companies’ hardware products

  • Doors available as a single and double leaf open in and open out

  • Frame depth: 1¾” (45mm)

  • Casement depth: 1¾” (45mm)

  • Glazing range (door): 1/16″ – 1¼” (1.5 – 32mm)

  • Max. door size: 7′ 10⅝” x 4′ 1¼” (2400mm x 1250mm)

  • Max. door weight: 264 lbs (120 kg)

  • Solutions: Doors open out and open in

    Minimum Visible Width T Profile (Door Only)

  • Frame (door): 1 1/16″ (27.5mm)

  • Casement (door): 1 1/16″ (27.5mm)

  • Fire Safety: Available as smoke-proof partitions (Sm, Sa classes) per EN 13502-2:2008

  • Enhanced Fire Resistance: Specialized Eco 45 fire variant for classes S200, Sa

  • Durability: Hurricane-tested performance ensures reliability in demanding office conditions

  • Lightweight Structure: Easy installation with solid yet lightweight construction ideal for office retrofits with minimal thermal insulation needs

  • Maintenance: EPDM gaskets resist aging and maintain performance in high-traffic areas
