ULTRA NARROW FRAMES, MAXIMIZED VISIBILITY
HIGH PERFORMANCE SLIDING SYSTEM

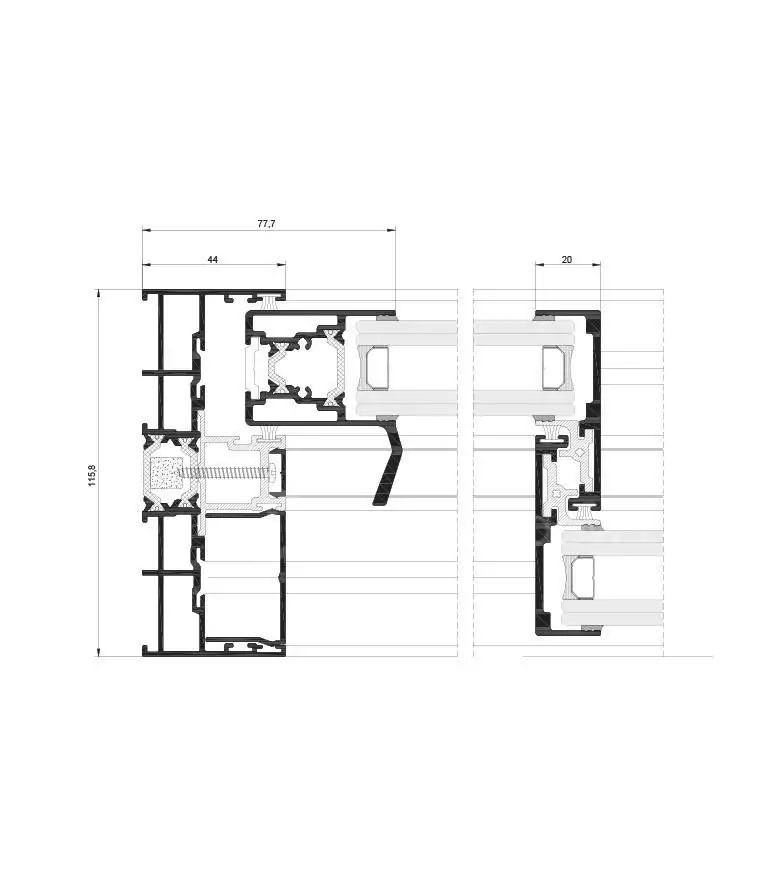

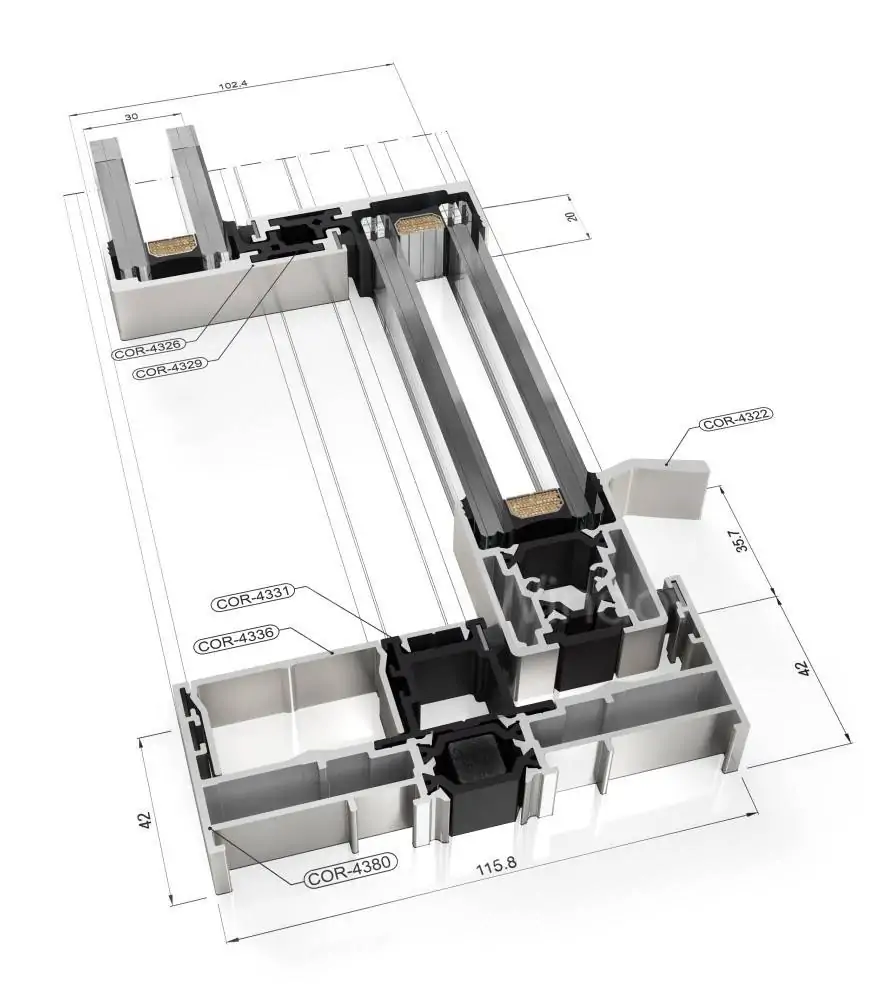

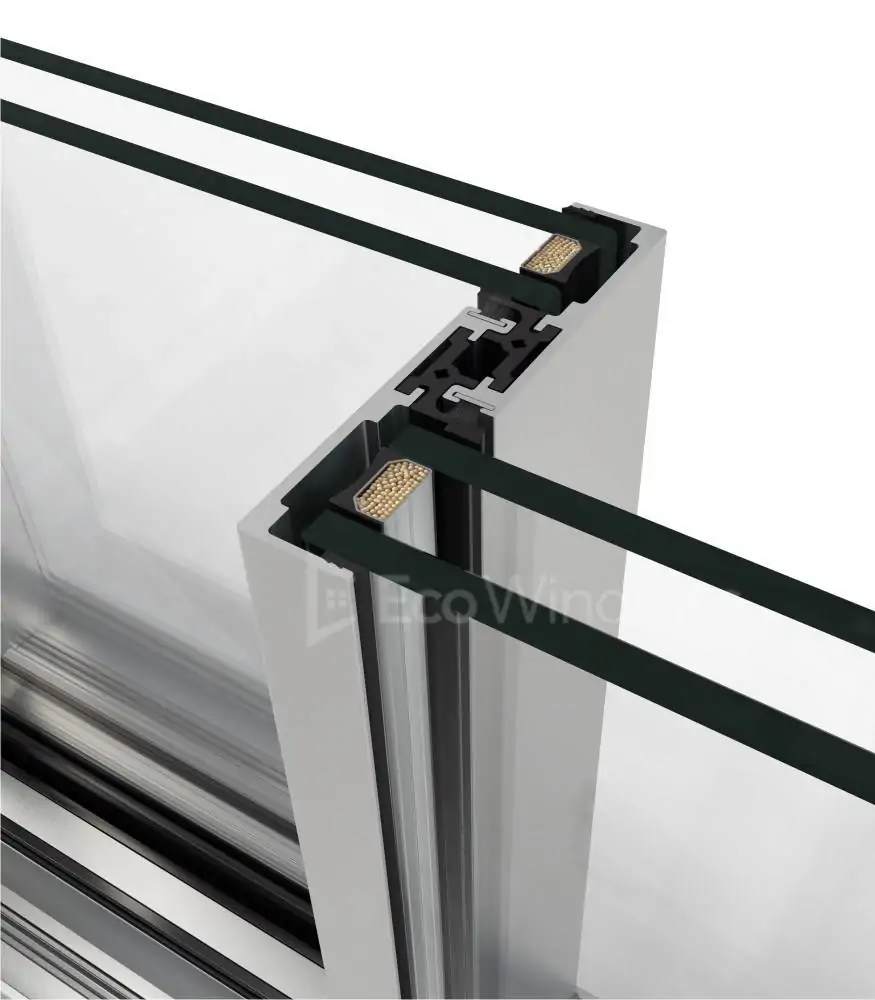

Eco Horizon is a premium aluminum sliding door system which characterise timeless and minimalistic appearance. Advanced configuration of narrow line profiles and oversized insulated glass units, reflects in amazing ratio of non obstructed glazing area, which is 94% of glass in 100% of the total aperture. Eco Horizon Sliding Door has an outstanding glazing capacity allowing installation of Double-Pane IGs up to 1 3/16″ thick which is more enough for any acoustic, safety or high performance glazing configurations. Eco Horizon is available in simple 2 panels or 4 panels configuration on double track as well from 3 to 6 panels on triple track. Both version can be assembled in linear or open corner configuration with stunning max. panel size of 10′ x 8′. The frame on each panel has a visible section of just 1″ and the possibility to inset the bottom frame completely within floor thickness. The rollers are placed in the bottom frame, and panels are provided with a stainless steel reinforced channel which makes the sliding movement smooth.
| Depth of frame | double 7 1/16 / triple 10 15/16 |
| Depth with leaf | 2 11/16 |
| Glazing range | up to 2 1/8 |
| Maximum size (W×H) | 157 1/2 x 157 1/2 |
| Max weight | 882 lbs |
| BTU | 0,23 |
| Air Permeability | (EN 12207:2000) CLASS 4 |
| Watertightness | (EN 12208:2000) CLASS 7A* / 9A** |
| Wind load resistance | (EN 12210:2000) CLASS C3* / C4** |
| Thermal insulation (Uf) | from 0,9 (W/m²K) |
| Maximum acoustic insulation | Rw=43 dB |
*Reference test : Balcony 4,00 x 3,00 m. 2 sashes. **Reference test : 4,00 x 3,00 m. 1 sash + 1 fixed
