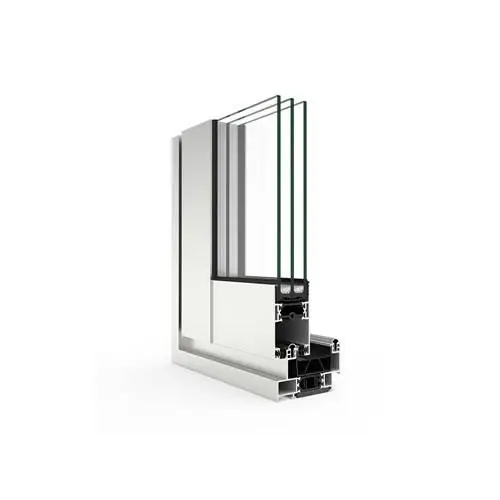

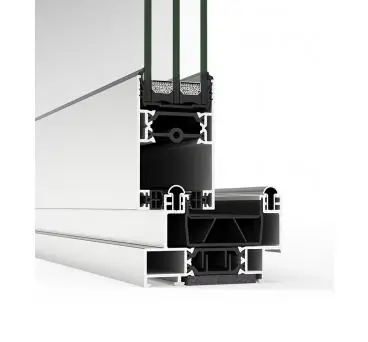

C4900S - Aluminum Sliding Doors

modern patio doors designed with the latest technology

Sliding window and door system with straight aesthetic which has a slim interlock of just 35 mm. It allows to have glass thicknesses of up to 36 mm, increasing the thermal and acoustic performance.

» Maximum glazing

36 mm


» Opening possibilities

Sliding of  2, 3, 4 & 6 sashes
Possibility of 3 rails
Possibility galandege 1, 2 and 4 sashes

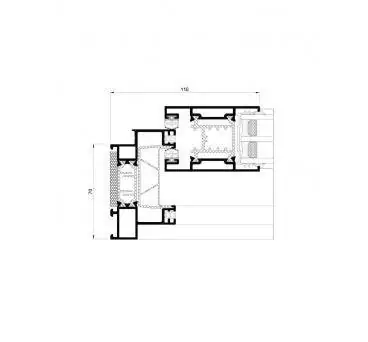

» Sections

Frame 70 mm – 3 Rails 126 mm
Sash 48 mm


» Profile thickness

Window 1,6 mm


» Polyamide strip length

Frame 34 mm

» Maximum dimensions / Sash

Width (L) = 2200 mm
Height (H) = 2600 mm


» Maximum weight / Sash

240 Kg

» Transmittance

Uw from 1,2 (W/m²K)

Please consult typology, dimensions and glazing.


» Maximum acoustic insulation

Rw = 40 dB


»  Air permeability

(EN 12207) CLASS 4


» Water tightness

(EN 12208) CLASS 7A


» Wind resistance

(EN 12210) CLASS C5
