C4700S - Aluminum Sliding Doors

modern patio doors designed with the latest technology

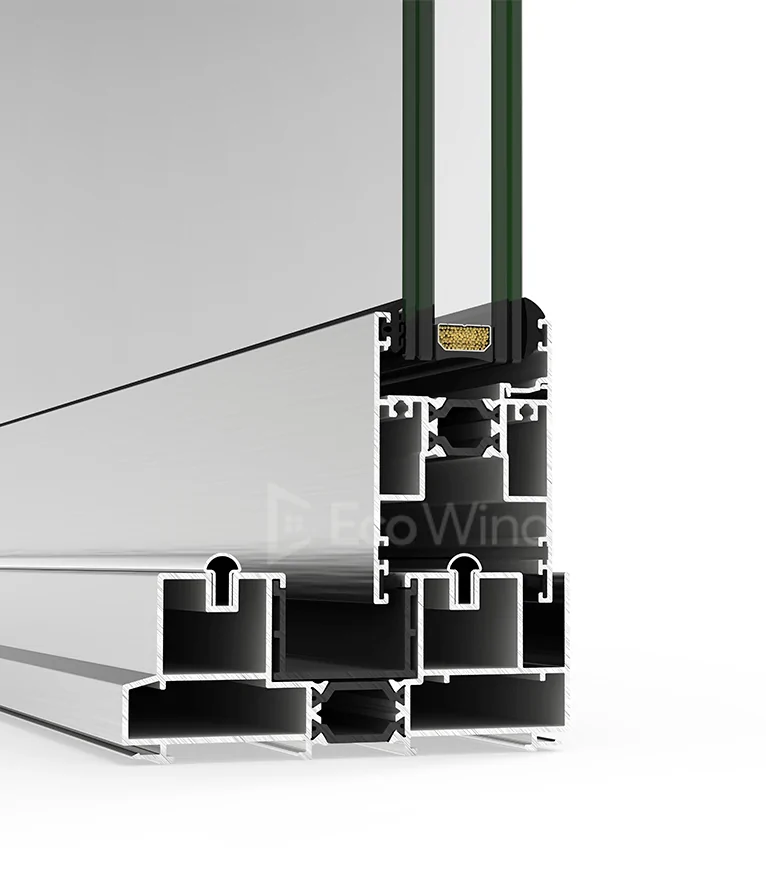

System for sliding window and doors with straight aesthetic, which counts with a central minimalist interlock of just 47 mm of visible section.

It allows maximizing the glazing capacity up to 34 mm increasing the acoustic and thermal performance.

  • System for sliding windows and doors with straight aesthetic
  • Sashes of up to 617 lbs weight allow maximum dimensions of 8′ 2 13⁄32″ × 9′ 10 3⁄32″
  • Stainless steel rails that allow for ultra smooth sliding

Maximum glazing thickness
1 11⁄32 in (34 mm)

Opening possibilities
Sliding of 2, 3, 4 & 6 sashes
Possibility of 1 rail (1 sash + 1 fixed)
Possibility of 3 rails
Possibility Galandage (pocket door install) 1, 2 & 4 sashes

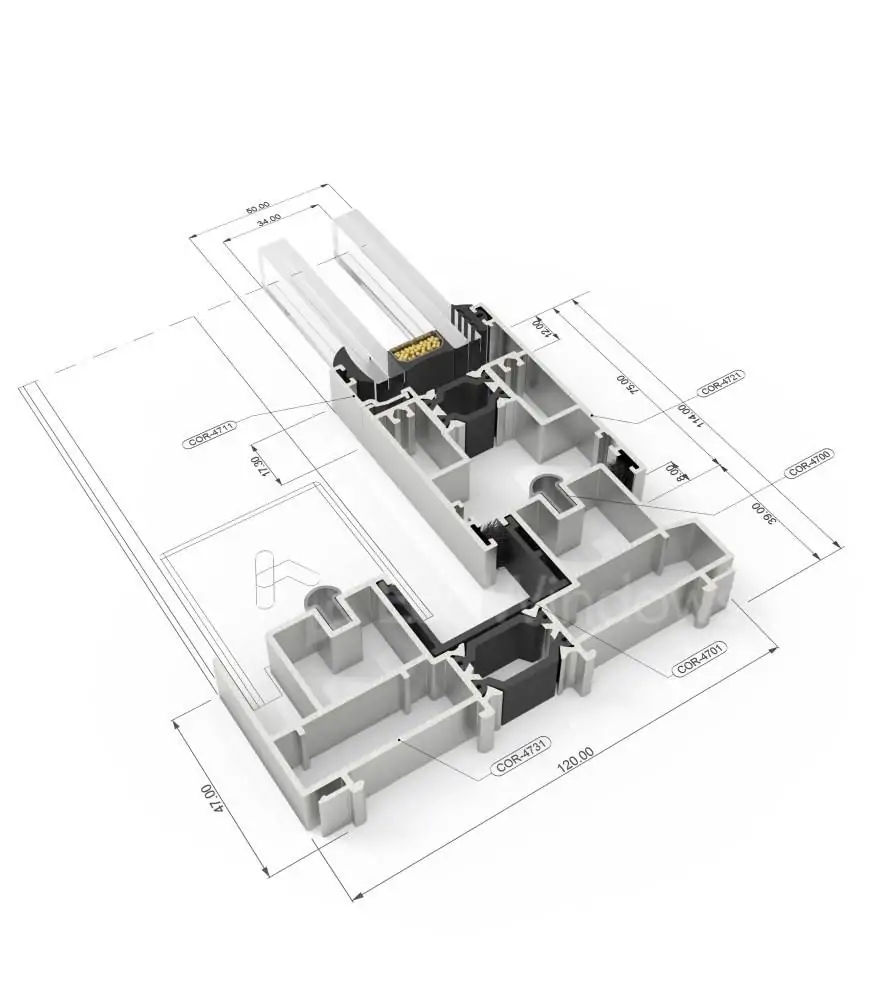

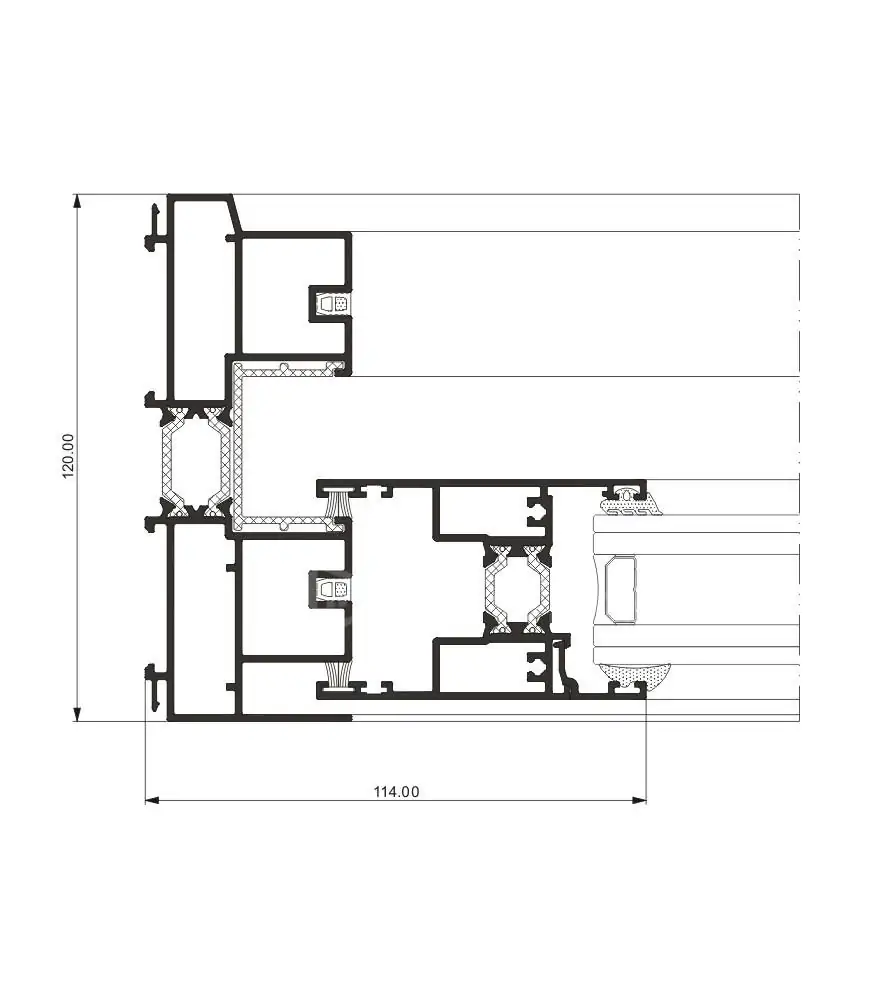

Sections
Frame: 4 23⁄32 in / 4 17⁄32 in (120 mm / 115 mm)
Sash: 1 31⁄32 in (50 mm)

Profile thickness
Balcony: 1⁄16 in (1.5 mm)

Polyamide strip length
25⁄32 in / 31⁄32 in (20 mm / 25 mm)

Maximum dimensions/sash
Width (L) = 98 13⁄32 in (2500 mm)
Height (H) = 118 3⁄32 in (3000 mm)

Maximum weight/sash
617 lb (280 kg)
Please consult regarding maximum weight and dimensions for other opening types

Finishes
Possibility of bicolor systems
Color powder coating (RAL mottled and rough)
Wood effect powder coating
Anti-bacterial powder coating
Anodized

Transmittance
Uw from 1.1 (W/m²K)
Please consult typology, dimensions and glazing

Maximum acoustic insulation
Rw = 40 dB

Air permeability
(EN 12207:2000) CLASS 3

Water tightness
(EN 12208:2000) CLASS 7A

Wind resistance
(EN 12210:2000) CLASS C5

Reference test: 5’10 15⁄32″ × 7’2 21⁄64″ (1.80 × 2.20
