Passive house windows
MULTIPLE CONFIGURATIONS AVAILABLE

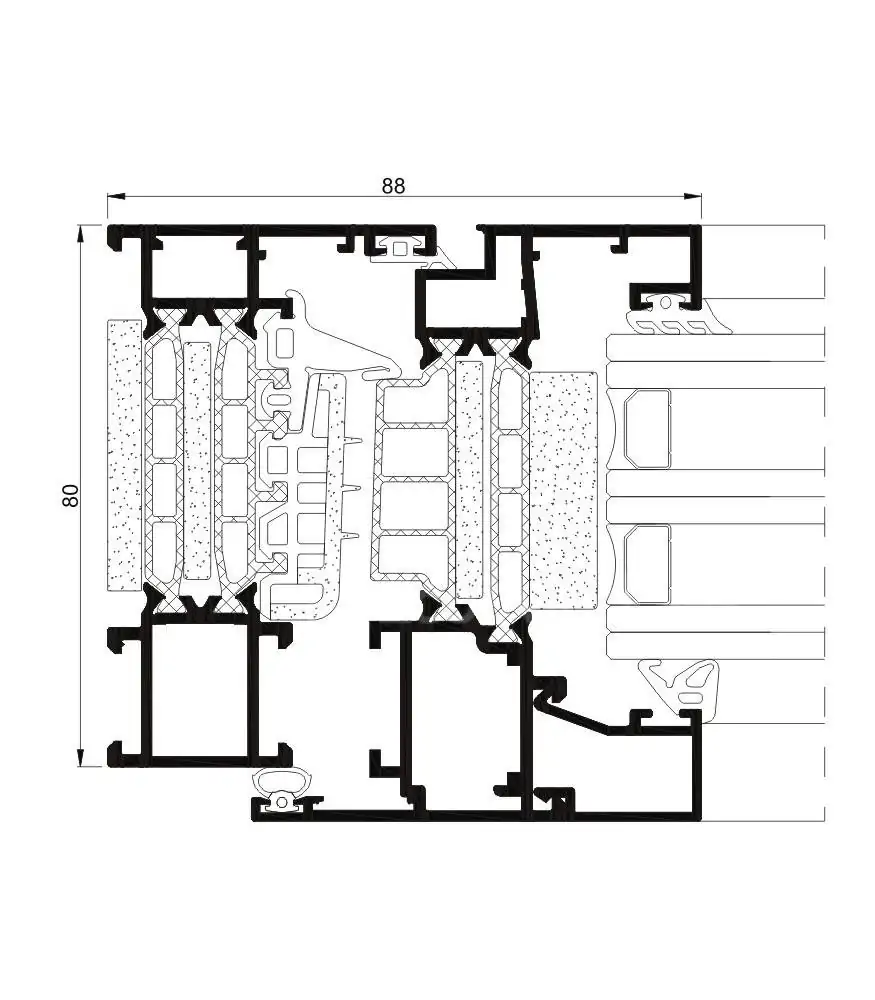

System is designed for windows with high thermal insulation parameters. High efficiency was achieved by applying special thermal inserts slid between thermal separators and around the glass pane. There is an option of installing windows in facade systems or store fronts as well. Window system is available with hidden hinges and variety of hardware options.
For those who value time and simplicity we recommend using additional Nailing Flange profile. Special fin is designed for simple and quick installation. This profile is frequently used by customers with additional trim resulting in further material and labor savings.
OPENING POSSIBILITIES
Open inwards:
Side hung, turn & tilt, tilt & parallel, bottom hung
Open outwards:
Side-hung, top hung projecting and hidden pivoting system
of either vertical or horizontal axis
INTEGRATED NAILING FLANGE ALSO WITH HIDDEN SASH
| Depth of frame | Standard 3 1/8 Hidden Sash 3 1/8 |
| Depth with leaf | Standard 3 7/16 Hidden Sash 3 1/8 |
| Glazing range | Standard 2 9/16 Hidden Sash 1 15/16 |
| Maximum size (W×H) | Standard 59 1/16×102 3/8 Hidden Sash 51 3/16 x 94 1/2 |
| Max weight | Standard 353lbs Hidden Sash 353 lbs |
| BTU | 0,12 |
| Air Permeability | (EN 12207) CLASS 4 |
| Watertightness | (EN 12208) CLASS E1500 |
| Wind load resistance | (EN 12210) CLASS C5 |
| Thermal insulation (Uf) | from 0,9 (W/m²K) |
| Maximum acoustic insulation | Rw=46 dB |
