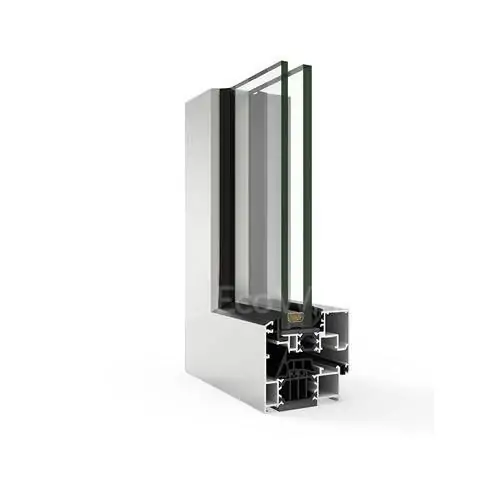

C70US Hidden Sash Aluminum Windows

HIDDEN CASEMENT SYSTEM WITH HIDDEN SASH

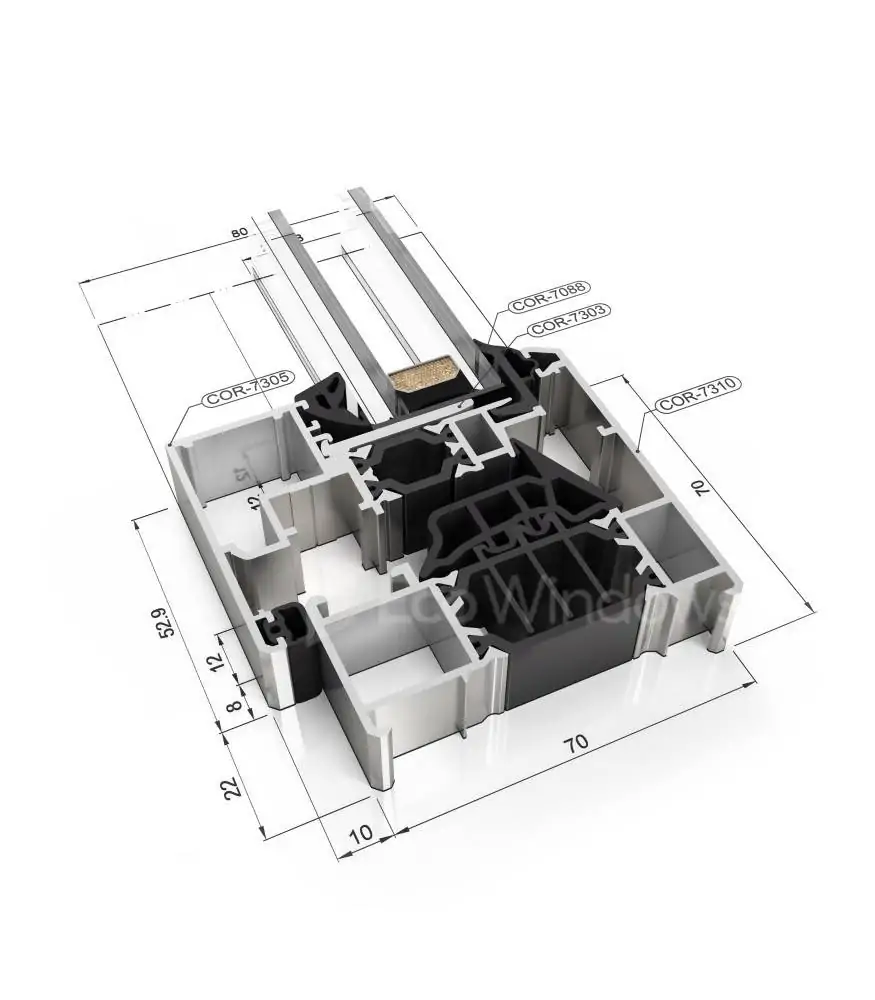

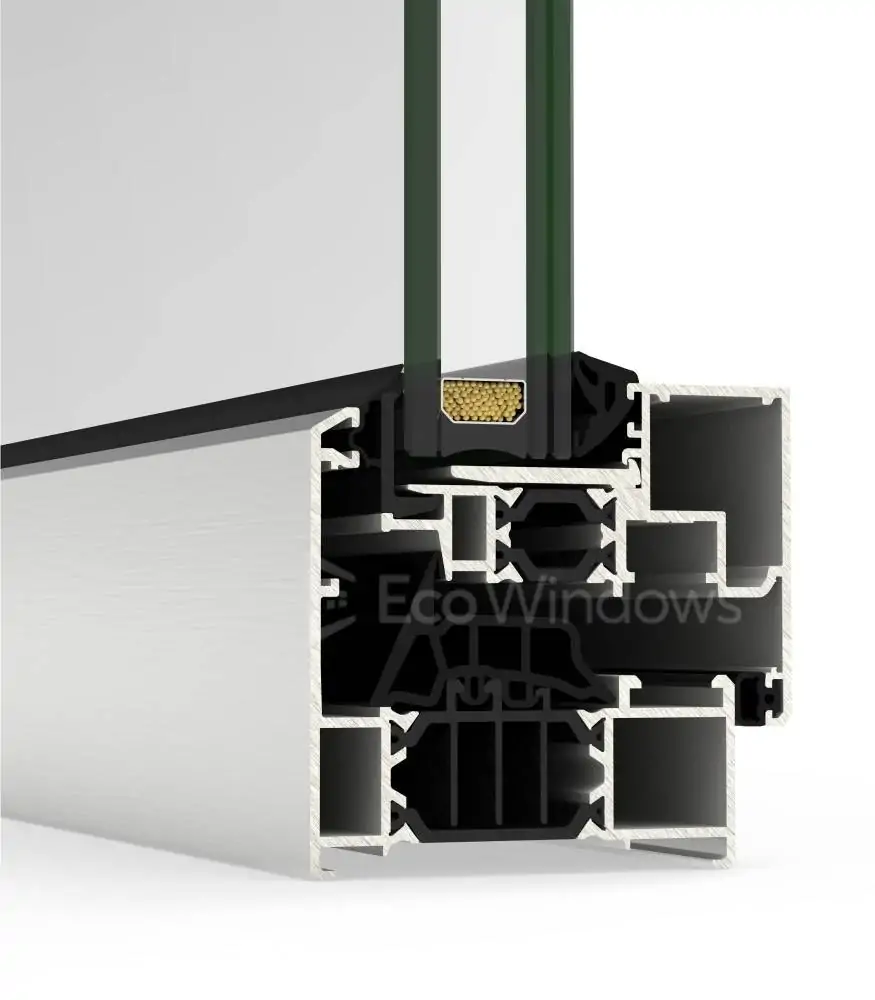

System is designed for windows with high thermal insulation parameters. High efficiency was achieved by applying special thermal inserts slid between thermal separators and around the glass pane.

There is an option of installing windows in facade systems or store fronts as well. Window system is available with hidden hinges and variety of hardware options.

For those who value time and simplicity we recommend using additional Nailing Flange profile. Special fin is designed for simple and quick installation. This profile is frequently used by customers with additional trim resulting in further material and labor savings.

OPENING POSSIBILITIES

Open inwards:
Side hung, turn & tilt, tilt & parallel, bottom hung

Open outwards:
Side-hung, top hung projecting and hidden pivoting system of either vertical or horizontal axis

INTEGRATED NAILING FLANGE ALSO WITH HIDDEN SASH

SpecificationStandardHidden Sash

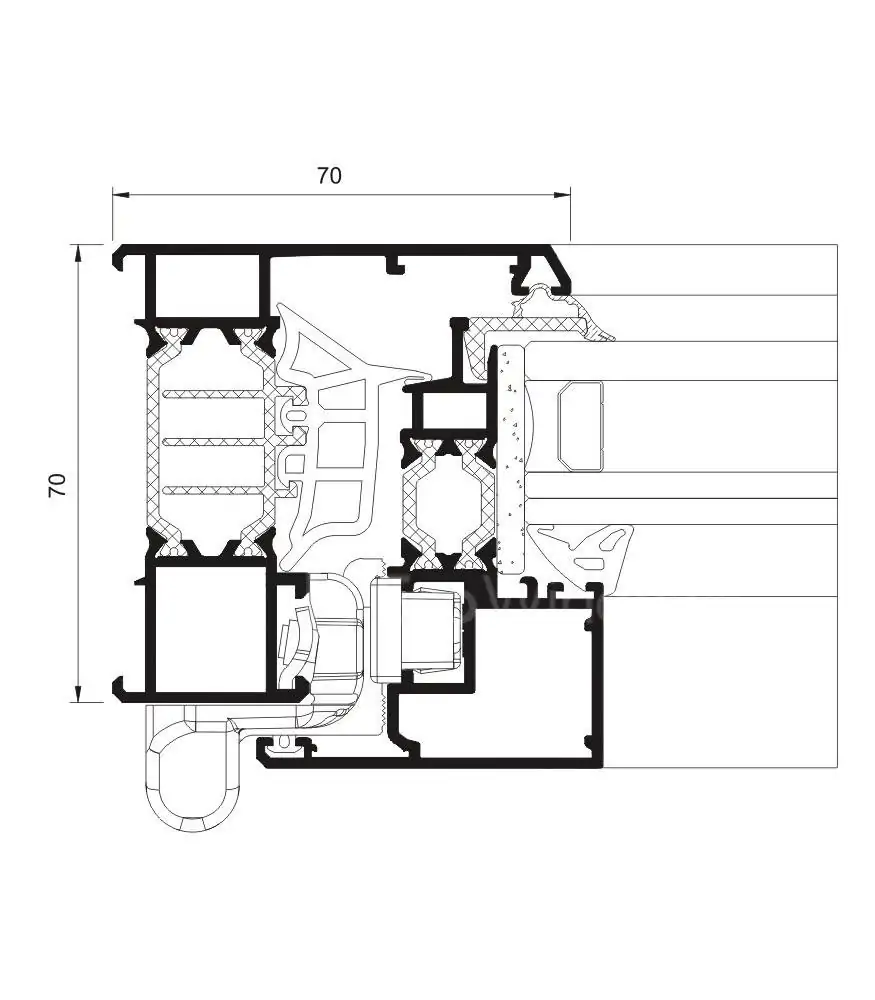

Depth of frame2¾”2¾”
Depth with leaf3¹⁄₁₆”2¾”
Glazing range2³⁄₁₆”1⁹⁄₁₆”
Maximum size (W×H)59¹⁄₁₆” × 102⅜”51³⁄₁₆” × 94½”
Max  sash weight353 lbs353 lbs
BTU
0,12
Air Permeability
(EN 12207) CLASS 4
Watertightness
(EN 12208) CLASS E1500
Wind load resistance
(EN 12210) CLASS C5
Thermal insulation (Uf)
from 0,9 (W/m²K)
Maximum acoustic insulation
Rw=46 dB
