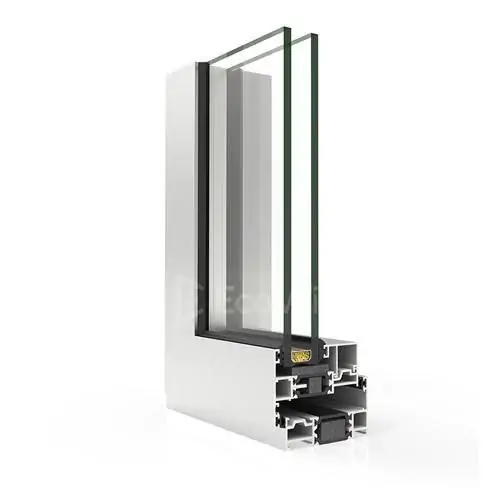

System is designed for windows with high thermal insulation parameters. High efficiency was achieved by applying special thermal inserts slid between thermal separators and around the glass pane.
Window system is available with scissor hinges and variety of hardware options, including the security system. Bicolor system available. Seaside powder coating (RAL, mottled and rough), Wood effect powder coating, Antibacterial powder coating, Anodized. With opening possibilities of Side-hung, top hung projecting.
● Narrow frames and mullions
● Variety of double pane glazings

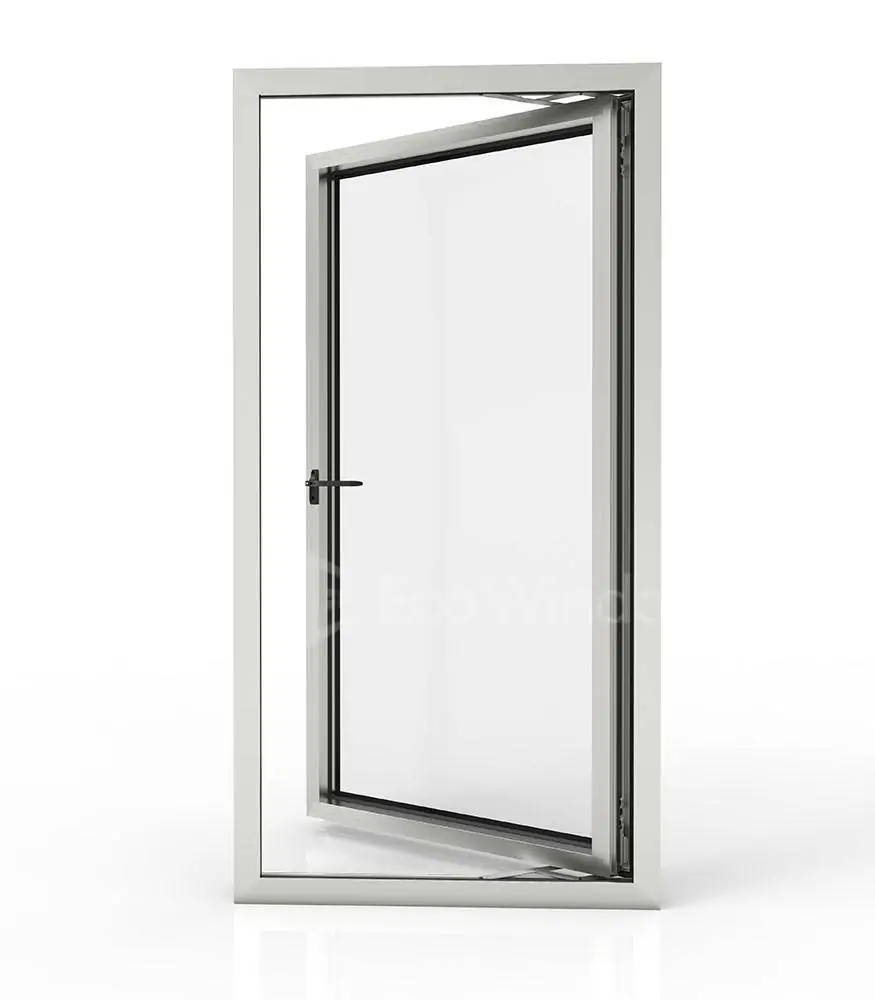

● Side hung and top hung operations
● Good thermal performance thanks to its 1 1⁄4 inch thermal break with HI foam
● 240 solid color options
● Powder coated with smooth or textured finish
● Optional anodized finish
● Large selection of handles

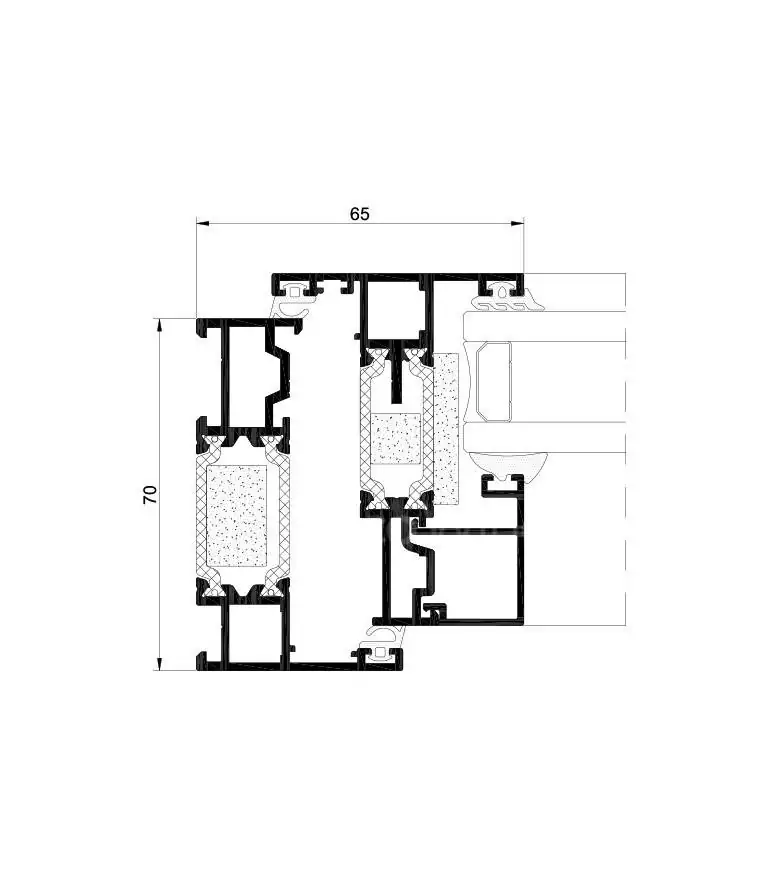

| Specification | Standard Leaf | Narrow Leaf |
|---|---|---|
| Depth of frame | 2¾” | 2¾” |
| Depth with leaf | 3⅛” (leaf depth 2¾”) | 3⅛” (leaf depth 2¾”) |
| Glazing range | up to 1¾” | up to 1¾” |
| Maximum size (W×H) Side hung | 29½” × 68⅞” | 27⁹⁄₁₆” × 51³⁄₁₆” |
| Maximum size (W×H) Top hung | 70⅞” × 70⅞” | 47¼” × 51³⁄₁₆” |
| Max weight Side hung | 93 lbs | 77 lbs |
| Max weight Top hung | 220 lbs | 110 lbs |
| BTU | 0.18 |
| Air Permeability | (EN 12207) CLASS 4 |
| Watertightness | (EN 12208) CLASS E1500 |
| Wind load resistance | (EN 12210) CLASS C5 |
| Thermal insulation (Uf) | from 0.9 (W/m²K) |
| Maximum acoustic insulation | Rw=46 dB |
