The A69LS offers an affordable solution for connecting interior spaces with outdoor areas like balconies, terraces, and gardens. This cost-effective system provides excellent thermal and acoustic insulation while maintaining superior functionality and aesthetic appeal.
Per individual panel (300kg)
Individual door leaf (2.8m)
Individual door leaf (3.3m)
Thickness capacity (42mm)
Per door system
Rail configurations
Door leaves exceed standard values with impressive capacity and dimensional flexibility for maximum design freedom.

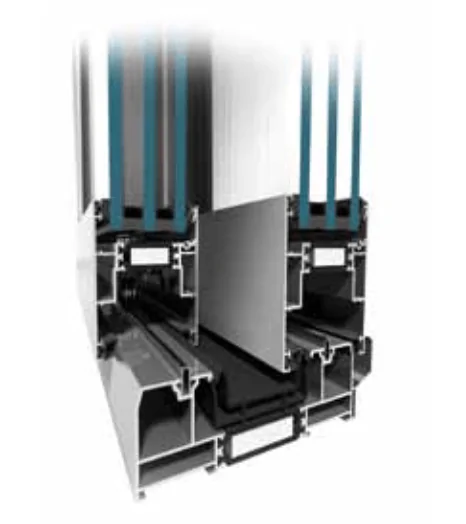

Slender yet strong 3-chambered profiles with insulating chambers equipped with wide thermal breaks in the central part.
Flexible 2-rail or 3-rail frames enable fabrication of doors with wide clear passage sizes while maintaining structural integrity.
Accommodates large glass thickness up to 1 21⁄32″ (42mm), bringing flexibility in choosing appropriate glazing solutions.

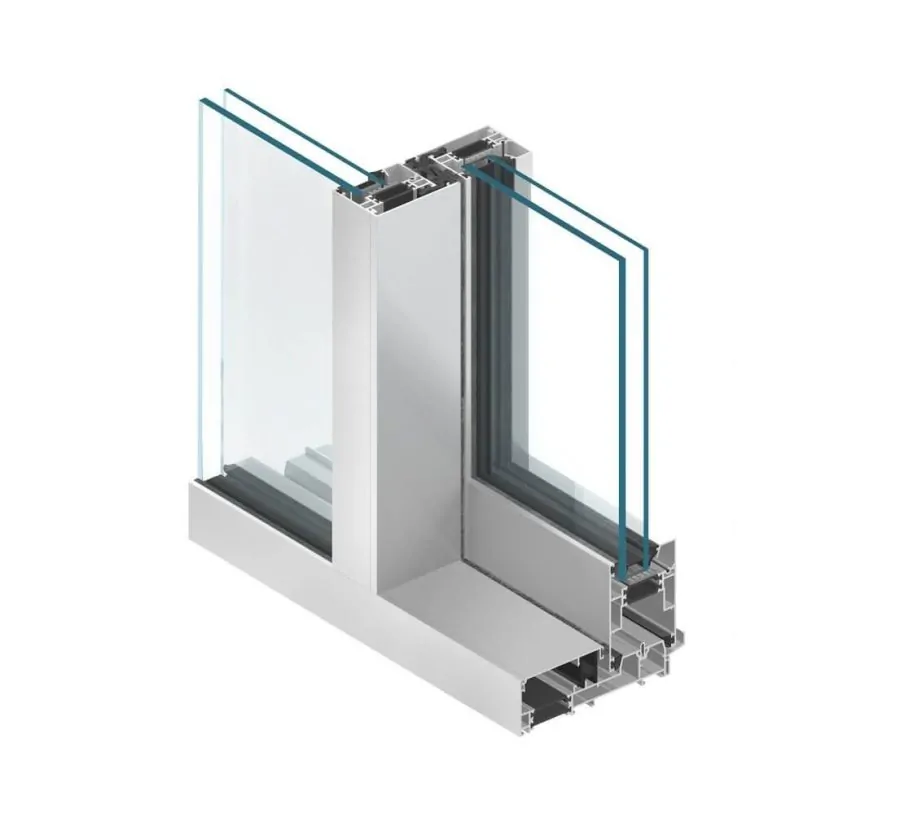

Fixed lites can be fabricated with glass mounted directly to the frame – an aesthetic and economical solution.
Relatively low heat transfer coefficient (Uf) ensured by wide thermal breaks, polyethylene inserts, and chambered profiles.
High water and air tightness assured by specially-shaped gaskets and hardware that embed the leaf on the frame.
Ability to mount most hardware for lift & slide doors available on the market for maximum flexibility.
Door version with low-level threshold makes it easier to use, especially for elderly or disabled users.
Doors can be mounted individually or as part of larger constructions: mullion and transom curtain walls or winter gardens.
Maximally simplified construction technology reduces time and costs of fabrication without compromising quality.
Compatibility with other systems – common components can be used for streamlined fabrication and installation.
Available in two thermal performance categories:
Enables use of double and triple glazing units, including safety and sound insulation units for specialized applications.
Suitable for various building types: individual buildings, hotels, apartments, and commercial applications.
| Specification | Value |
|---|---|
| Frame Depth | 4 23⁄32″ (120mm) 2-rail, 7 27⁄32″ (199mm) 3-rail |
| Casement Depth | 2 5⁄16″ (59mm) |
| Maximum Glazing Thickness | 1 21⁄32″ (42mm) |
| Frame Width (Exterior View) | 1 47⁄64″ (44mm) |
| Sash Width Range | 3 17⁄64″ – 3 23⁄32″ (83.5 – 94.5mm) |
| Maximum Leaf Weight | 661 lbs (300kg) per panel |
| Maximum Height | 9’2″ (2.8 meters) |
| Maximum Width | 10’10” (3.3 meters) per panel |
