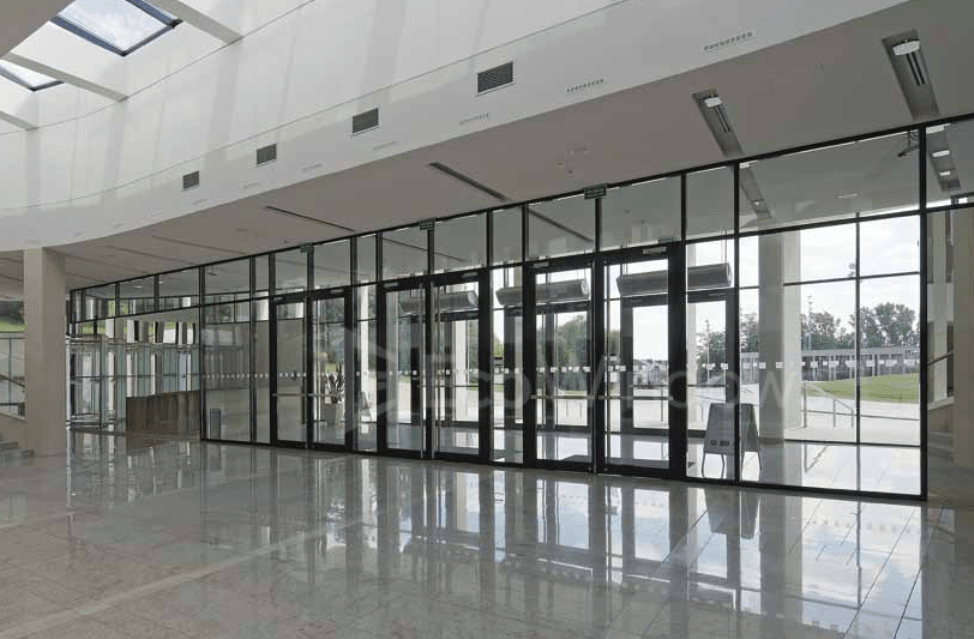

The Eco 45 represents a contemporary aluminum framing solution for architectural applications where thermal insulation is not required. This system serves diverse purposes including partition walls, windows, sliding and swing doors (both manual and automatic), vestibules, display windows, ticket offices, showcases, and complex spatial structures.

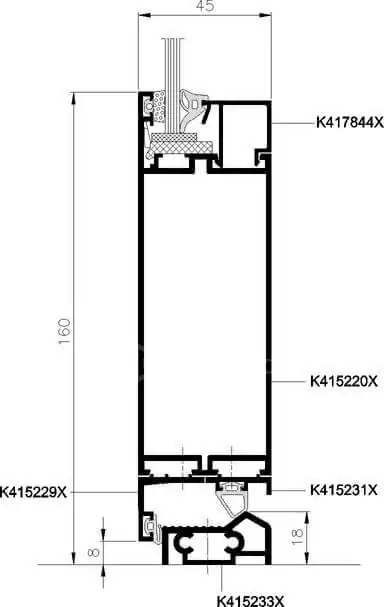

Structural Design The system features precisely engineered profile depths:

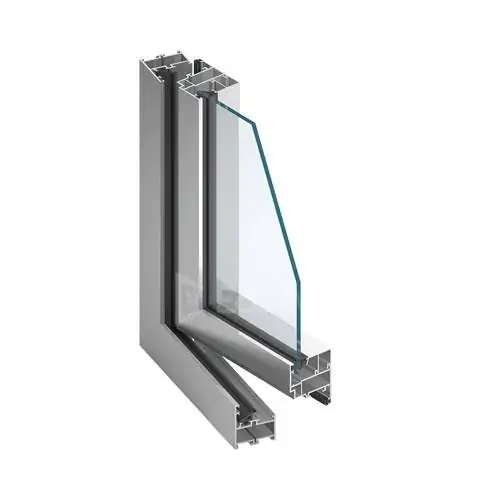

Windows: 1¾” (45mm) frame with 2⅛” (54mm) casement

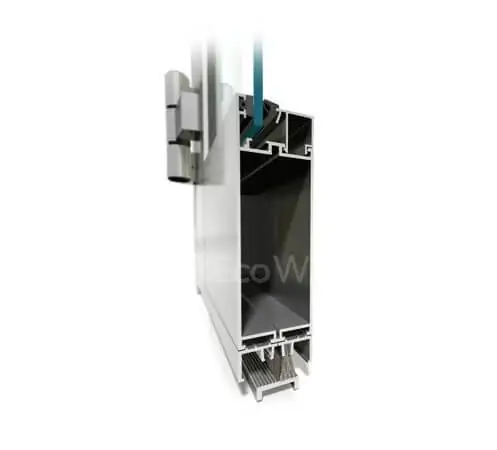

Doors: 1¾” (45mm) frame and leaf dimensions
These measurements create a flush exterior appearance in windows and unified face alignment in doors, while the profile geometry ensures both architectural elegance and structural strength.
Distinguished Capabilities Curved Applications: The Eco 45 system uniquely allows profile bending, enabling architects to create arched openings and curved architectural features using frames, casements, and glazing beads.
Sealing Technology: Advanced EPDM synthetic rubber gaskets provide superior weather protection and long-term durability, resisting aging throughout the system’s service life.
Customization Options The system offers extensive configuration flexibility through various structural detail options:
Multiple door leaf base sealing methods
Diverse sliding and swing door sealing systems
Various glazing bead profiles
Adjustable door threshold shapes and heights
Light and durable structure
Design depth: 45 mm (1¾”)
Infill ranging from 2-35 mm (5⁄64″-1⅜”) – dedicated for 8 mm (5⁄16″), 10 mm (⅜”), and 12 mm (15⁄32″) tempered glass panes
Various types of partition walls, windows, doors, including manual & automatic sliding doors, swing doors, vestibules, etc.
Smoke-resistant door variant available (in Sm and Sa classes)
Continuously mounted glazing gaskets, no more cutting at the corners
Possibility of changing interior design
Adapted to use numerous companies’ hardware products
Profile Specifications
Windows: 1¾” (45mm) frame with 2⅛” (54mm) casement
Doors: 1¾” (45mm) frame and leaf dimensions
Glass Specifications
Window casements: 1/16″ to 1⅜” (2-35mm) thickness capacity
Fixed windows and door frames: 1/16″ to 1″ (2-26mm) thickness capacity
Smoke Control: Meets Sa and S200 class requirements
Hurricane Testing: Successfully passed ASTM and Florida Building Code standards (TAS 201-94, TAS 202-94, TAS 203-94), confirming exceptional performance under extreme weather conditions
