C2000 - Aluminum Swing Door System

Possibility of straight or curved beads and sashes

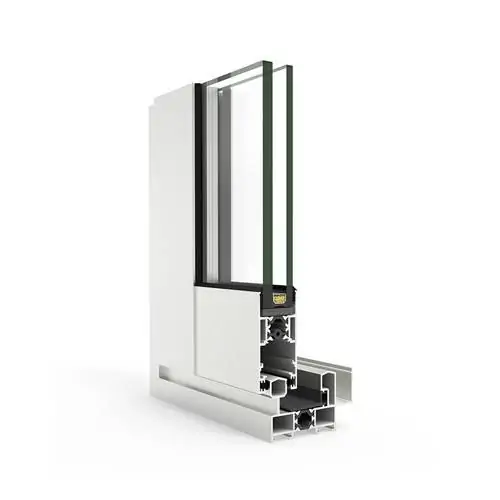

The C2000 is a sophisticated aluminum swing door system featuring a Euro-groove hinged design with a glazing capacity of 1-7⁄32″ (31mm). Constructed from premium 6063 T-5 aluminum extrusions – an architectural-grade alloy known for exceptional strength, durability, and superior surface finish quality – this system provides exceptional rigidity and durability for both residential and commercial applications.

Opening Configurations

Inward Opening Options:

  • Side hung (traditional swing)

  • Tilt & turn functionality

  • Parallel sliding operation

  • Bottom hung configuration

Outward Opening Options:

  • Side hung operation

  • Top hung projecting

  • Pivoting on horizontal or vertical axis

Hardware & Security Features

  • Security hardware options available

  • Concealed hinges for clean aesthetics and enhanced security

  • Euro-groove system for superior hardware integration

  • Compatible with various locking mechanisms

Design Versatility

  • Sash profiles: Available in straight or curved configurations

  • Glazing beads: Straight or curved options for custom aesthetics

  • Dual color systems: Frame and sash can be finished in different colors

Finish Options

  • Powder coating: RAL colors, mottled, and textured finishes (>60 microns, Qualicoat standard)

  • Wood effect: Authentic wood-grain powder coating (Qualideco standard)

  • Anodized: Class 15 standard (Class 20 and 25 available on request)

  • Anti-bacterial coating: Available for hygienic environments

Construction Materials

  • Alloy: Premium 6063 T-5 aluminum extrusion for superior durability and corrosion resistance

    • 6063 is a high-strength architectural grade aluminum alloy known for its excellent extrudability and surface finish quality

    • T-5 temper designation indicates the alloy is artificially aged to achieve optimal strength and workability

    • This combination provides exceptional dimensional stability, corrosion resistance, and weldability

    • Ideal for precision machining and anodizing processes, ensuring consistent quality and finish

  • Profile thickness: Enhanced 1⁄15″ (1.7mm) for doors provides exceptional rigidity and durability

Applications

The C2000 door system is ideal for:

  • High-end residential projects requiring superior thermal performance

  • Commercial buildings demanding style and enhanced weatherproofing

  • Projects requiring the highest levels of water and air tightness

  • Applications where acoustic control is essential

  • Designs requiring flexible opening configurations

Note: Always consult technical drawings and specifications for specific typologies, dimensions, and weight limitations before installation.

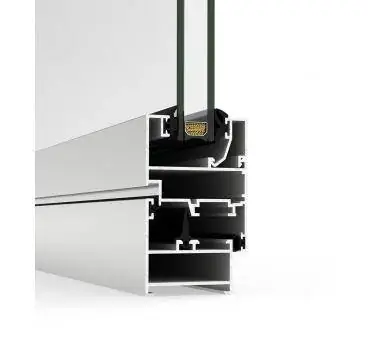

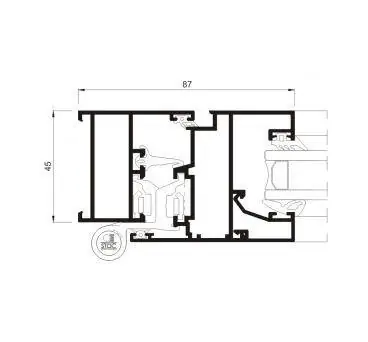

Frame Profile

  • Euro-groove hinged system with 1-7⁄32″ (31mm) glazing capacity

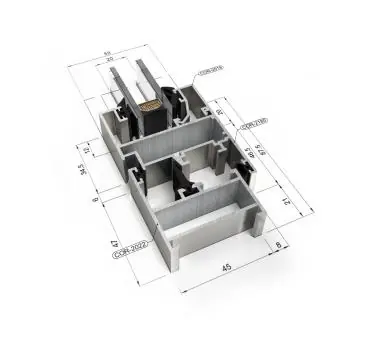

  • Sightlines: Frame 1-3⁄4″ (45mm), Sash 2-1⁄16″ (53mm) for clean, contemporary appearance
  • Profile thickness: 0.067″ (1.7mm) for doors
  • Glazing accommodation: 1⁄8″ (3mm) minimum to 1-7⁄32″ (31mm) maximum thickness

Dimensions & Capacity

  • Maximum sash dimensions: Width 59-1⁄8″ (1,500mm) × Height 94-1⁄2″ (2,400mm)
  • Maximum sash weight: 265 lbs (120kg)
  • Note: Consult us for maximum weight and dimensions in specific configurations

Performance Standards

  • Thermal transmittance: Uw ≥ 0.32 BTU/hr·ft²·°F (1.8 W/m²K) for enhanced energy efficiency

  • Acoustic insulation: Up to 39 dB for superior sound dampening

  • Air permeability: Class 4 (EN 12207) – exceptional weather sealing

  • Water tightness: Class 9A (EN 12208) – superior water resistance

  • Wind resistance: Class C5 (EN 12210) – outstanding structural stability
