Double aluminum windows, are a type of windows that can have two operable sashes. A tilt and turn window can open inward from side hinges or tilt inward at the top like a hopper window. It can be also fitted with fixed window (simulated double window).
Rain protection and draft-free ventilation are both provided by the tilt position. Tilt & Turn windows operate as casement windows in the turn position, swinging their entire glass surface open.

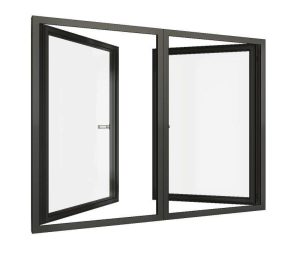

A series double aluminum windows
OUTSTANDING THERMAL AND ACOUSTIC
PERFORMANCE
A series aluminum profile series has been designed to offer outstanding insulation properties with Uf values up to 0.15. This profile also supports great OITC rating. The system range fits perfectly with our curtain walling and framing products and is appropriate for installation in both residential and commercial buildings.

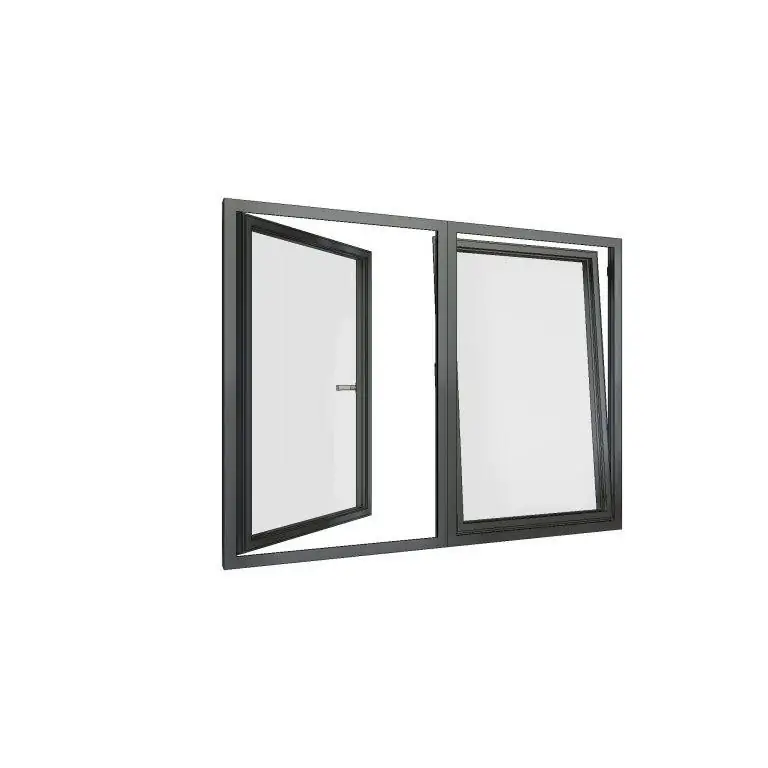

C series Double aluminum windows
INTEGRATED NAILING FLANGE PROFILE
ALSO WITH HIDDEN SASH OPTION
System is designed for windows with high thermal insulation parameters. High efficiency was achieved by applying special thermal inserts slid between thermal separators and around the glass pane. For those who value time and simplicity we recommend using additional Nailing Flange profile. Special fin is designed for simple and quick installation.
available systems
Casement system
Dual Action system
High thermal insulation
High thermal insulation
Passive House system
High Thermal and sound insulation
Slim profiles system
Office system with slim profiles
Benefits of Aluminum windows
Our windows and doors are built to be energy efficient.
Our energy-efficient windows and doors keep heated and cooled air inside your homes, saving you money on your monthly energy bills.
It depends on the type of window you replace and your climate. Energy Star studies show double pane versus single pane windows can reduce energy costs by 21% to 31%
About aluminum Windows
Aluminum is a metal with incredible strength. Due to their exceptional durability and longevity, aluminum windows and doors have been used in large-scale commercial installations for decades. Aluminum windows and doors can carry very large glass sections with only the thinnest of frames.
Old windows provide poor insulation, which makes them inefficient in terms of energy use. Homeowners are replacing their old windows and doors with energy efficient Passive home Aluminum systems. 25% of a building’s heating and cooling demands can be linked with window and doors that are poorly insulated.
Our window and door aluminum systems, which use multi-chamber technology, offer an extremely low heat transfer value. This effects how much energy you use and how much money you spend on heating and cooling.
Available glazings
Used where no thermal barrier is needed, especially indoors
Standard window and balcony door glazing with increased efficiency starting with Ug as low as 0.18
Passive house high efficient energy saving, increased security and decrease of noise
Passive house ultra standard. The highest efficiency in savings and decreasing noise
technical specs
| A series | C series | S series | Steel | Wood | |||||||
| Thermal Uw values up to | 0.15 | 0.15 | 0.13 | 0.20 | 0.14 | ||||||
| Passive option | ✔ | ✔ | ✔ | ✔ | |||||||
| Hidden sash | ✔ | ✔ | ✔ | ||||||||
| Nailing Flange | ✔ | ✔ | ✔ | ||||||||
Max dimensions of single panel (in inches) | |||||||||||
| Fixed window | 142 x 110 | 142 x 110 | 142 x 110 | 110 x 98 | 71 x 98 ½ | ||||||
| Operable window | 67 x 118 | 59 x 102 | 59 x 102 | 55 x 90 ½ | 55 x 67 | ||||||
| Swing doors | 55 x 118 | 59 x 106 | 50 ½ x 97 | 35 ½ x 94 ½ | 43 ½ x 98 ½ | ||||||
| Sliding doors | 130 x 126 | 157 ½ x 157½ | 118 x 106 | – | 128 x 106 | ||||||
| Range of glazing panes | 1 – 4 | 1 – 3 | 2 – 4 | 1 – 3 | 2 – 3 | ||||||
