When you need a window that isn’t included in our usual offering. Our custom aluminum windows offer practically infinite design options to create a one-of-a-kind windows. From elegant curves to modern angles.
Let us assist you in creating the custom window of your dreams, from unusual forms and sizes to intricate grille patterns, artisanal glass alternatives, and speciality windows.

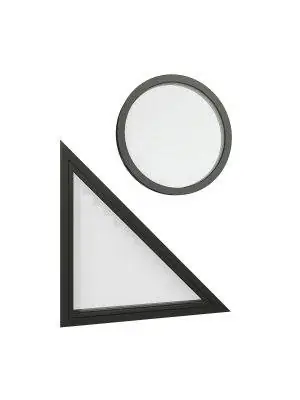

A series custom aluminum windows
A series aluminum profile series has been designed to offer outstanding insulation properties with Uf values up to 0.15. This profile also supports great OITC rating. A86 profile allows for extremely large glazing designs.

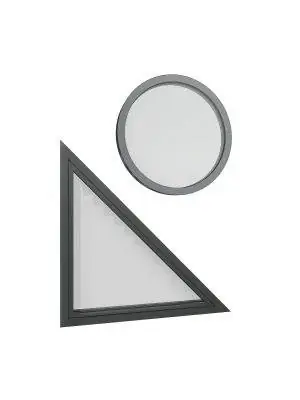

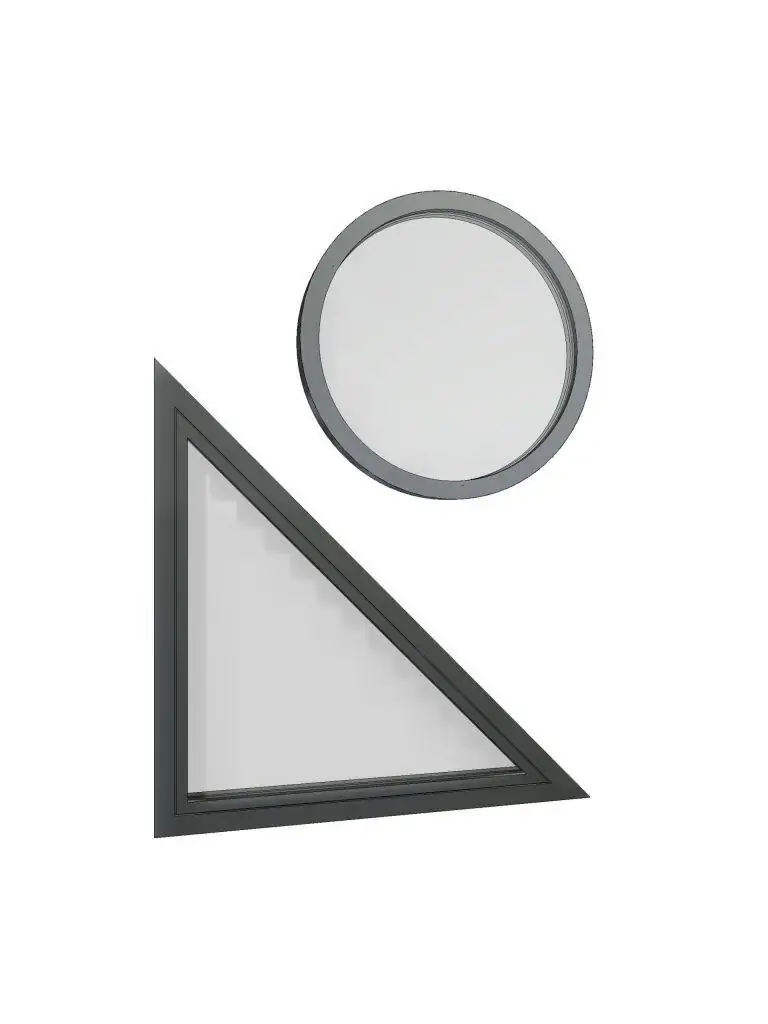

C series custom aluminum windows
INTEGRATED NAILING FLANGE PROFILE
ALSO WITH HIDDEN SASH OPTION
C System is designed for windows with high thermal insulation parameters. High efficiency was achieved by applying special thermal inserts slid between thermal separators and around the glass pane.
available systems
Casement system
Dual Action system
High thermal insulation
High thermal insulation
Passive House system
High Thermal and sound insulation
Slim profiles system
Office system with slim profiles
Benefits of Aluminum windows
Our aluminum windows are easy to customize. The frames of aluminum windows can be painted in any color, giving you the ability to match the windows to your existing decor. You can also choose from a variety of shapes and sizes to fit any window opening.
About aluminum Windows
Custom Aluminum windows are incredibly durable and long-lasting. Aluminum is a strong and corrosion-resistant material, so your windows won’t be affected by the elements. Aluminum windows also require less maintenance than other window types, which means you won’t have to worry about regular repairs or replacements.
Available glazings
Used where no thermal barrier is needed, especially indoors
Standard window and balcony door glazing with increased efficiency starting with Ug as low as 0.18
Passive house high efficient energy saving, increased security and decrease of noise
Passive house ultra standard. The highest efficiency in savings and decreasing noise
technical specs
Specification
| A series | C series | S series | Steel | Wood | |||||||
| Thermal Uw values up to | 0.15 | 0.15 | 0.13 | 0.20 | 0.14 | ||||||
| Passive option | ✔ | ✔ | ✔ | ✔ | |||||||
| Hidden sash | ✔ | ✔ | ✔ | ||||||||
| Nailing Flange | ✔ | ✔ | ✔ | ||||||||
Max dimensions of single panel (in inches) | |||||||||||
| Fixed window | 142 x 110 | 142 x 110 | 142 x 110 | 110 x 98 | 71 x 98 ½ | ||||||
| Operable window | 67 x 118 | 59 x 102 | 59 x 102 | 55 x 90 ½ | 55 x 67 | ||||||
| Swing doors | 55 x 118 | 59 x 106 | 50 ½ x 97 | 35 ½ x 94 ½ | 43 ½ x 98 ½ | ||||||
| Sliding doors | 130 x 126 | 157 ½ x 157½ | 118 x 106 | – | 128 x 106 | ||||||
| Range of glazing panes | 1 – 4 | 1 – 3 | 2 – 4 | 1 – 3 | 2 – 3 | ||||||
• Dual color option
• Multi point locking hardware.
• Wide range of acoustic and security glazing possibilities.
• 260 color options.
Inspirations
Bestsellers:
Profiles:
Technical Drawing:
bestselling colors
Need inspiration? Want to check all benefits of EcoWindows systems?
Other projects:
A77, A70, Superial
A77, A70, S80
R series Pivot Doors
You might also check other solutions
Pvc S series
Interior, Exterior
Wood
AluClad
