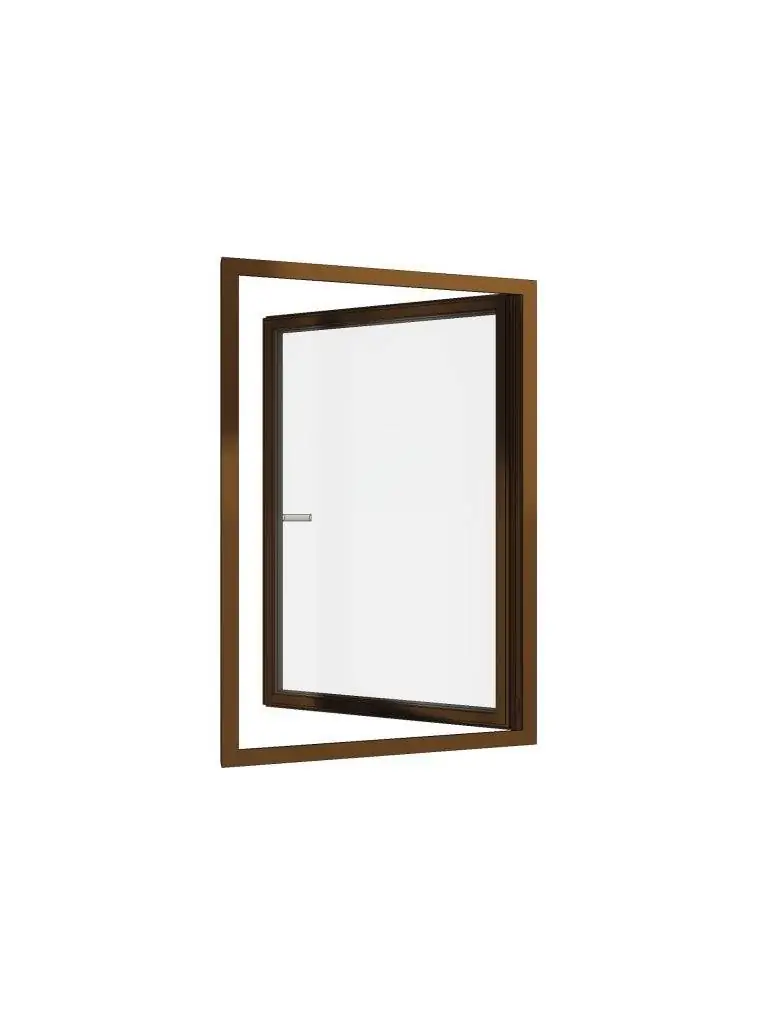

A casement window where sash opens to the left or the right and is hinged on the side. Casement windows are able to provide significant, undisturbed glass surfaces because there is only one sash. The sash of a casement window barely blocks the opening when it is fully open.
inswing aluclad windows
Energy efficiency, providing comfort, functionality and safety
Our AluClad – wood products meet strict requirements of energy efficiency, providing comfort, functionality and safety. All system frames comes powder coated in two finishes, smooth or textured using palette of RAL colors.
This system possesses high utility parameters in terms of insulating as well as acoustic and mechanical properties. Its features allow for a wide range of uses.
AluClad windows are great way to extend the life of traditional wood windows. AluClad windows are a durable and efficient choice that looks great and lasts for years, making them a fantastic choice for your property.
According to the U.S. Department of Energy, energy efficient windows offer significant savings.
Alu-clad windows are popular in both residential and commercial buildings due to their combination of aesthetic appeal, durability, and energy efficiency. They are particularly well-suited for areas with harsh weather conditions, as the aluminum cladding helps protect the wood from moisture and temperature fluctuations.
Used where no thermal barrier is needed, especially indoors
Standard window and balcony door glazing with increased efficiency starting with Ug as low as 0.18
Passive house high efficient energy saving, increased security and decrease of noise
| Specification | A series | C series | S series | Steel | Wood |
|---|---|---|---|---|---|
| Thermal Uw values up to | 0.15 | 0.15 | 0.13 | 0.20 | 0.14 |
| Passive option | ✔ | ✔ | ✔ | ✔ | |
| Hidden sash | ✔ | ✔ | ✔ | ||
| Nailing Flange | ✔ | ✔ | ✔ | ||
| Max dimensions of single panel (in inches) | |||||
| Fixed window | 142 x 110 | 142 x 110 | 142 x 110 | 110 x 98 | 71 x 98 ½ |
| Operable window | 67 x 118 | 59 x 102 | 59 x 102 | 55 x 90 ½ | 55 x 67 |
| Swing doors | 55 x 118 | 59 x 106 | 50 ½ x 97 | 35 ½ x 94 ½ | 43 ½ x 98 ½ |
| Sliding doors | 130 x 126 | 157 ½ x 157½ | 118 x 106 | – | 128 x 106 |
| Range of glazing panes | 1 – 4 | 1 – 3 | 2 – 4 | 1 – 3 | 2 – 3 |
Sustainability & Maintenance: The aluminum cladding exterior protects the wood from weather and moisture while providing a low-maintenance solution that enhances long-term performance and comfort for your home.
