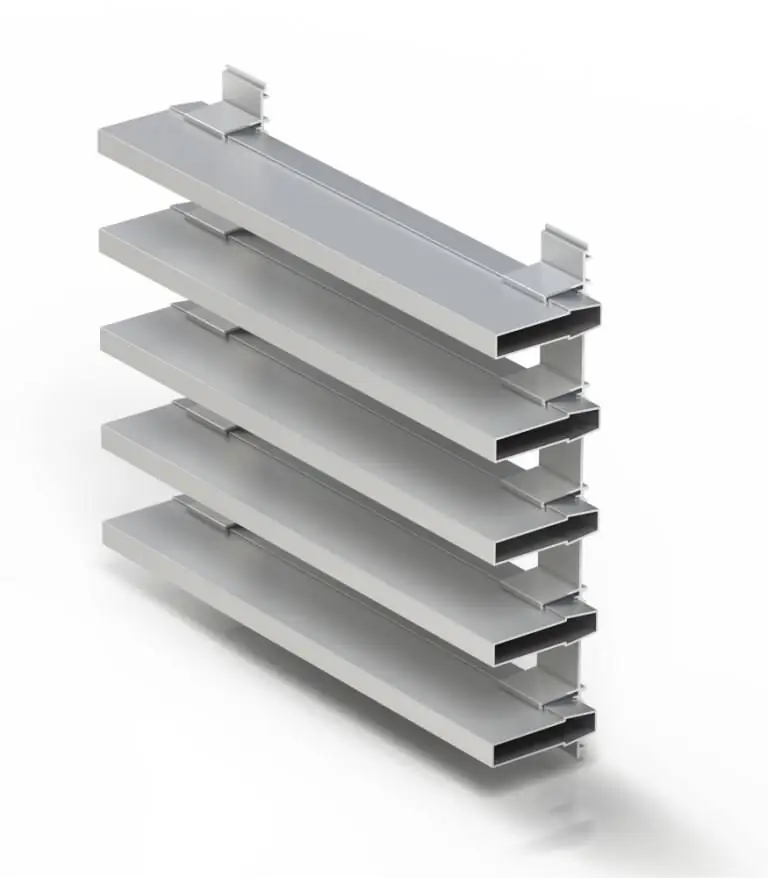

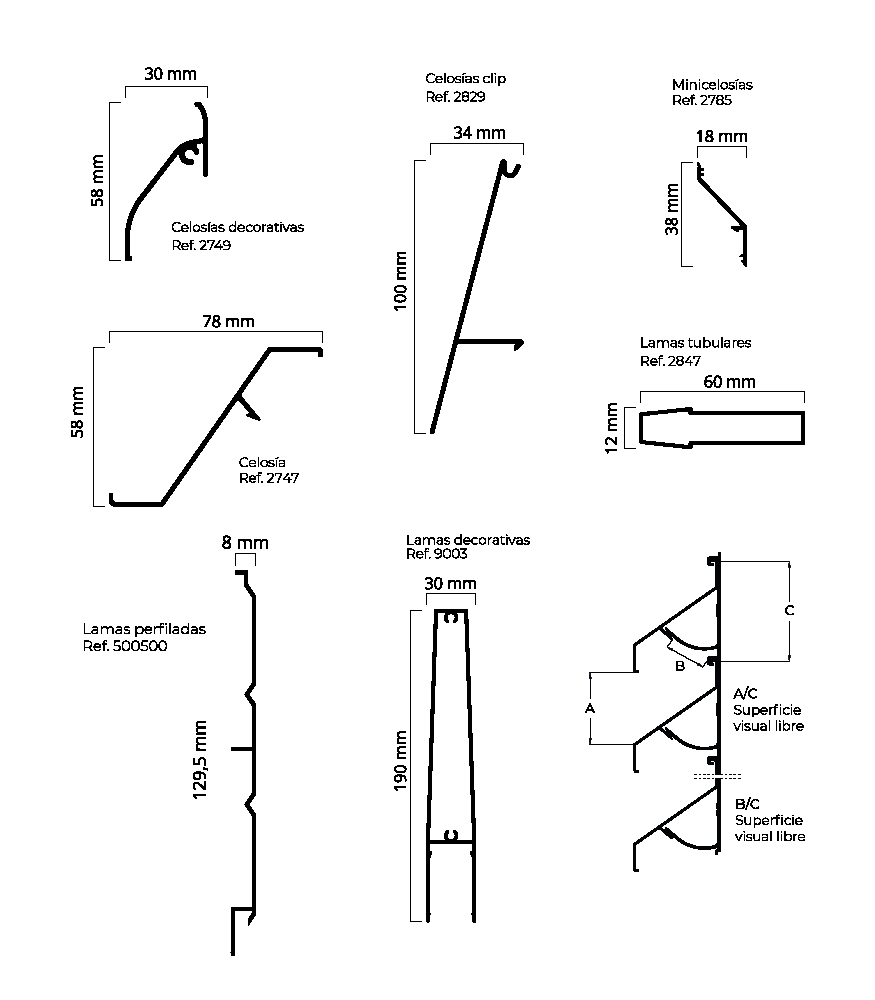

Lattices (Ref. 2747)
Standard lattice system with 78mm profile height and 50mm depth. Maximum recommended length 2.0m (6′-7″) with 81% visibility at 35° angle. Wind load resistance Class 6 (maximum per UNE 13659:2004). Visibility coefficients: A/C 71%, B/C 44%.

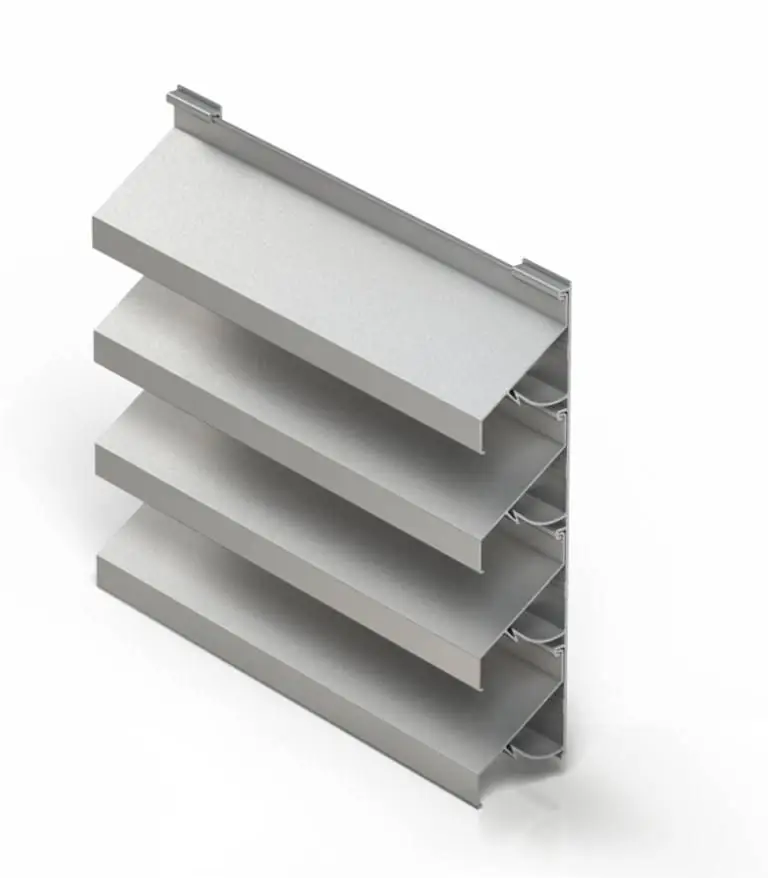

Decorative Lattices (Ref. 2749 & 770220)
Enhanced aesthetic design featuring decorative profiles with 30mm spacing and 58mm depth. Maximum recommended length 1.5m (4′-11″) with 56% visibility at 50° angle. Visibility coefficients: A/C 62%, B/C 34%.
Clip Lattices (Ref. 2829)
Easy-install system with 34mm profile and 100mm height. Maximum recommended length 1.3m (4′-3″) with 55% visibility at 45° angle. Visibility coefficients: A/C 100%, B/C 24%.
Mini-Lattices (Ref. 2785)
Compact 18mm height system ideal for restricted spaces. Maximum recommended length 1.3m (4′-3″) with 55% visibility at 45° angle. Wind load resistance Class 5 per UNE 13659:2004. Visibility coefficients: A/C 55%, B/C 39%.
Tubular Louvres (Ref. 2847)
Circular profile louvres with 60mm x 12mm dimensions offering superior strength. Maximum recommended length 2.0m (6′-7″) with 76% visibility at 90° angle. Wind load resistance Class 6 (maximum per UNE 13659:2004). Visibility coefficient: A/C 76%.
Decorative Louvres (Ref. 9003)
Premium decorative system with 30mm profile and 190mm depth. Maximum recommended length 6.5m (21′-4″) with 96% visibility at 90° angle. Visibility coefficient: A/C 86%.
Perforated Louvres (Ref. 500500, 770036, 770080)
Specialized façade covering systems available in different profiles:
All louvre systems undergo rigorous testing according to UNE 1932:2001 standards. Wind load resistance classifications range from Class 5 to Class 6 (maximum), ensuring reliable performance in various climatic conditions.
Test parameters vary by product:
Maximum lengths may be extended beyond standard recommendations for specific project requirements (consultation required).
All louvre systems are available in multiple finish options:
These finishes are specifically formulated for outdoor applications, providing excellent UV resistance and color retention.
Louvre Type | Maximum Length (Metric) | Maximum Length (Imperial) | Visibility | Viewing Angle |
---|---|---|---|---|
Lattices | 2.0 m | 6′-7″ | 81% | 35° |
Decorative lattices | 1.5 m | 4′-11″ | 56% | 50° |
Clip lattices | 1.3 m | 4′-3″ | 55% | 45° |
Mini-lattices | 1.3 m | 4′-3″ | 55% | 45° |
Tubular louvres | 2.0 m | 6′-7″ | 76% | 90° |
Decorative louvres | 6.5 m | 21′-4″ | 96% | 90° |
*Depending on project specifications, it is possible to reach a longer louvre length (please consult us)
