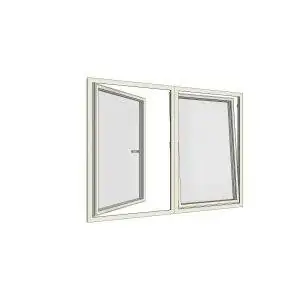

Double Sash PVC Windows

PVC windows

Double-sash window, is a type of window that can have two operable sashesA tilt and turn window can open inward from side hinges or tilt inward at the top like a hopper window. It can be also fitted with fixed window (simulated double window). Rain protection and draft-free ventilation are both provided by the tilt position. Tilt & Turn windows operate as casement windows in the turn position, swinging their entire glass surface open. Available in quadruple, triple, or double glazing.

our systems

S series dual action PVC windows

INTEGRATED NAILING FLANGE PROFILE

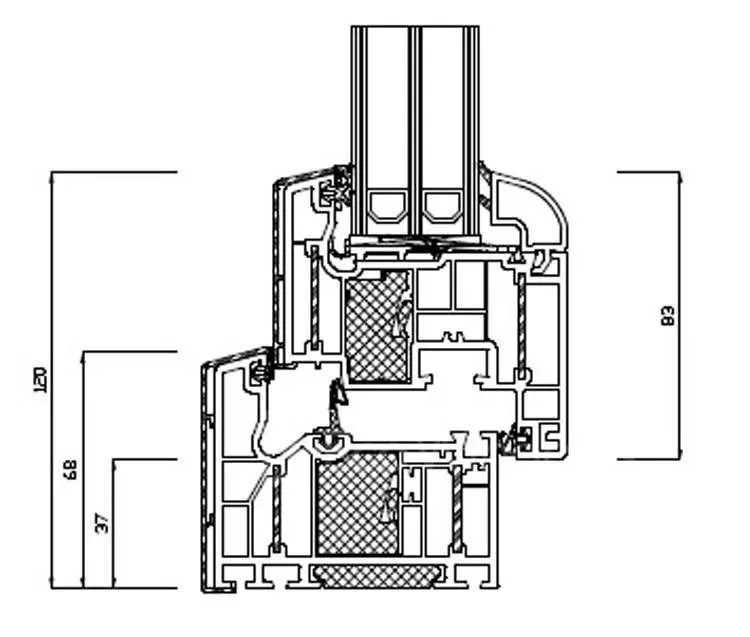

The seven closed air chambers inside the frame profile ensure maximum thermal insulation efficiency, which was previously unthinkable without costly additional measures. The patented combined construction of plastic and aluminum reinforces the profiles so effectively that the steel reinforcements used in conventional profiles can be completely omitted. The removal of these “thermal bridges” significantly increases the insulation performance of these frame profiles.


available system

Benefits of PVC windows

uPVC can reduce the amount of outside noise that enters your home and stop heat from escaping, which could lower your energy costs. uPVC is a durable and reliable material for window frames, one you can trust to keep your house secure. A strong metal core inside the frame makes any attempt to breach it very difficult. To avoid window frames that look plastic, choose from a variety of designs and colors or classic hardwood finish as an option.

Our windows and doors are built to be energy efficient.
Our energy-efficient windows and doors keep heated and cooled air inside your homes, saving you money on your monthly energy bills.

About PVC Windows

With uPVC windows, energy consumption is reduced, which saves your expenses and contributes to the protection of the precious climate.

New windows provide additional living comfort. Their construction and the materials used provide very effective protection against noise. In addition, the multi-stage seal retains the effects of wind pressure. And the optimal transparency of today’s insulating glass brings a lot of light intensity to the interior.

Our window and door pvc systems, which use multi-chamber technology, offer an extremely low heat transfer value. This effects how much energy you use and how much money you spend on heating and cooling.

Available glazings

Single

Used where no thermal barrier is needed, especially indoors

Double

Standard window and balcony door glazing with increased efficiency starting with Ug as low as 0.18

Triple

Passive house high efficient energy saving, inreased security and decrease of noise

Quad

Passive house ultra standard. Highest efficiency in savings and decreasing noise

technical specs

Specification A series C series S series Steel Wood
Thermal Uw values up to 0.15 0.15 0.13 0.20 0.14
Passive option
Hidden sash
Nailing Flange
Max dimensions of single panel (in inches)
Fixed window 142 x 110 142 x 110 142 x 110 110 x 98 71 x 98 ½
Operable window 67 x 118 59 x 102 59 x 102 55 x 90 ½ 55 x 67
Swing doors 55 x 118 59 x 106 50 ½ x 97 35 ½ x 94 ½ 43 ½ x 98 ½
Sliding doors 130 x 126 157 ½ x 157½ 118 x 106 128 x 106
Range of glazing panes 1 – 4 1 – 3 2 – 4 1 – 3 2 – 3
  • High soundproofing and resistance to crosswinds
  • Two levels of sealing
  • Economical variant of plastic windows
  • Suitable for apartments and passive houses
  • Patented plastic and aluminum construction
