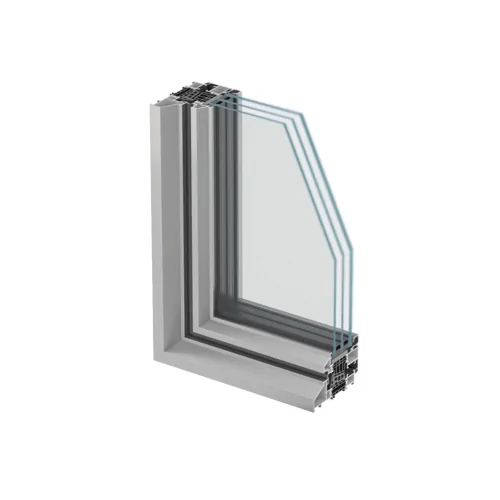

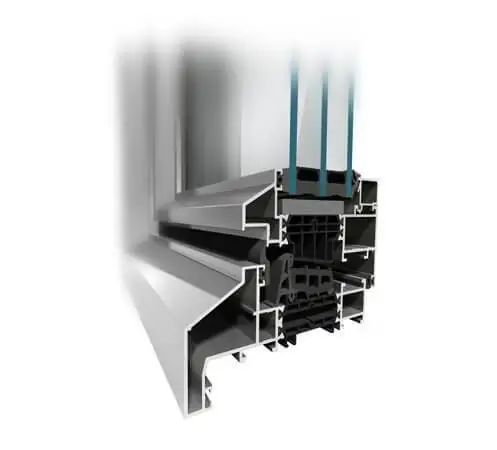

- ● Unique narrow frame design
● Perfect for renovation of historic buildings
● Application: fixed display windows, and single or double sash windows
● High resistance to water & air infiltration
● 240 solid color options
● Powder coated with smooth or textured finish
● Optional anodized finish
● Available with Nail Fin

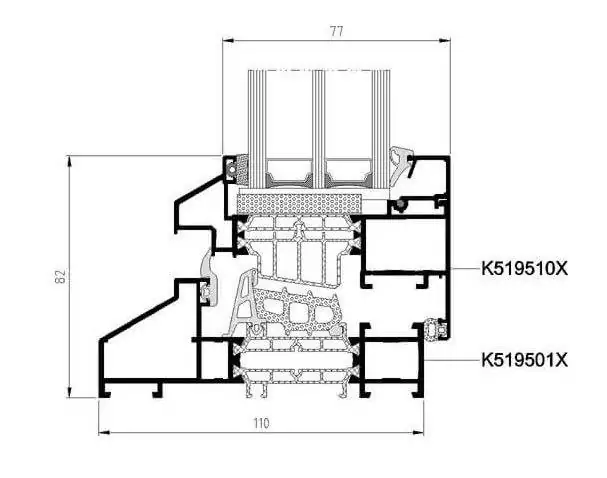

Depth of frame | 3 9/16 |
Depth with leaf | 2 15/16 |
Glazing range | Narrow frame: 1 11/16, standard: 1 7/16 |
Maximum size (W×H)
| 49 3/16 x 78 3/4 (Narrow sash) 59 1/16 x 94 1/2 (standard sash) |
Max weight | 265 lbs |
BTU | 0,15 |
Air Permeability | (EN 12207:2000) CLASS 4 |
Watertightness | (EN 12208:2000) CLASS 7A* / 9A** |
Wind load resistance | (EN 12210:2000) CLASS C3* / C4** |
Thermal insulation (Uf) | from 0,9 (W/m²K) |
Maximum acoustic insulation | Rw=43 dB |
*Reference test : Balcony 4,00 x 3,00 m. 2 sashes. **Reference test : 4,00 x 3,00 m. 1 sash + 1 fixed
