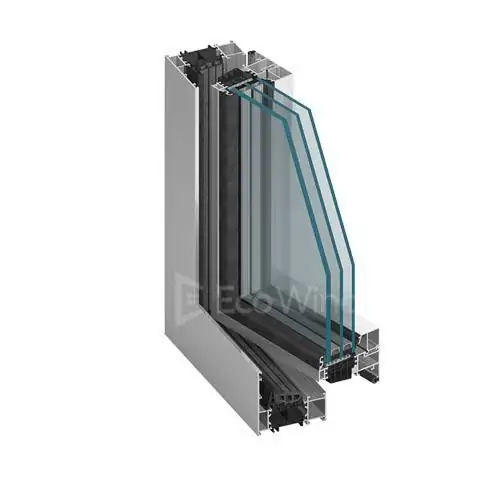

A86US - Aluminum Windows with Hidden Sash System

OUTSTANDING THERMAL AND ACOUSTIC PERFORMANCE HIDDEN SASH SYSTEM

EFFICIENT CONSTRUCTION WITH Uw FACTOR CAPABILITY OF 0.13

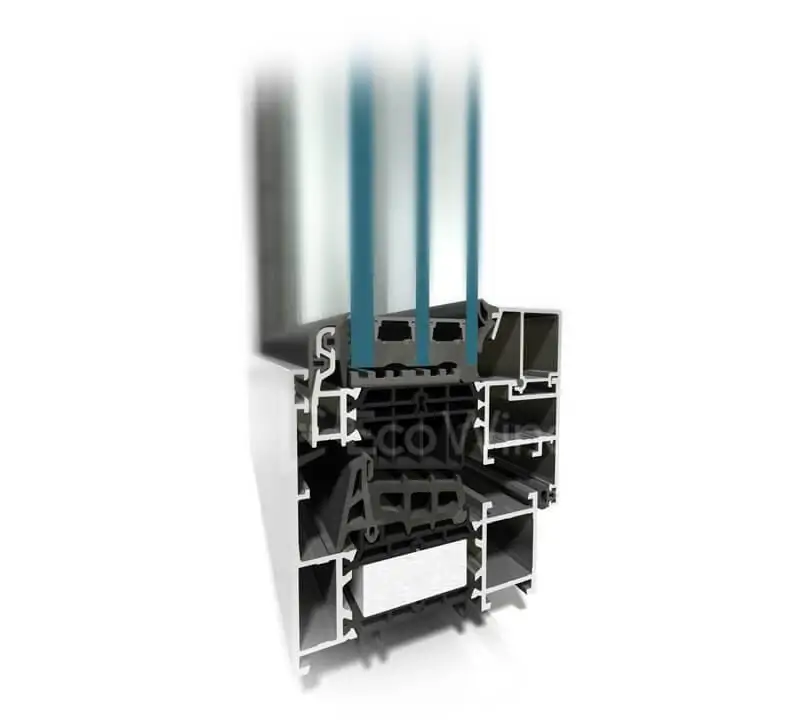

A86 aluminum profile series has been designed to offer outstanding insulation properties. This profile also supports great OITC rating.

A86 profile allows for extremely large glazing designs. The system range fits perfectly with our curtain walling and framing products and is appropriate for installation in both residential and commercial buildings.

Offer includes Casement, Awning, Tilt & Turn and Pivot options

● Dual color option
● Multi point locking hardware
● Compatible with other Eco A systems allowing for
massive design flexibility and project solutions
● French door inswing or outswing options
● Wide range of acoustic and security glazing possibilities
● 260 color options
● Powder coating with smooth or textured finish
● Optional marine grade or anodizing finish

Uw value  (BTU*h/ft 2 )
0,13
Depth of frame3 1/16
Depth with leaf3 3/8
Glazing rangeup to 2 3/4
Maximum size (W×H)67 x 110 1/4
Max weight331 lbs



Air Permeability
(EN 12207:2000) CLASS 4
Watertightness
(EN 12208:2000) CLASS 7A* / 9A**
Wind load resistance
(EN 12210:2000) CLASS C3* / C4**
Thermal insulation (Uf)
from 0,9 (W/m²K)
Maximum acoustic insulation
Rw=43 dB

*Reference test : Balcony 4,00 x 3,00 m. 2 sashes. **Reference test : 4,00 x 3,00 m. 1 sash + 1 fixed
