Eco C52 TPV - Facade System

Great thermal braking

A new generation of facade consisting of a base system with an ample range of mullions and transoms that provides answers to the different style and construction needs for architectural projects.

ECO C52 TPV is a mixed system that evolved from the combination of the C52 TP and the  C52 SG systems. lt maintains the pairing of the pressure cover on the horizontal gaskets highlighting the line in this direction whilst the glazing fixing is achieved by way of elips and the U profile on its vertical edge.

Great thermal breaking, together with an ample glazing capacity of up to 64 mm with glass compositions of large thicknesses and energy efficiency, gives to this new range of facades many excellent thermal and acoustic features.

» Wide variety of mullions from ⅝” (16 mm) to 9¹⁄₁₆” (230 mm) and transoms from ⅞” (22.5 mm) to 8⅛” (205.5 mm) that address the diverse aesthetic and structural needs of the architectural sector.

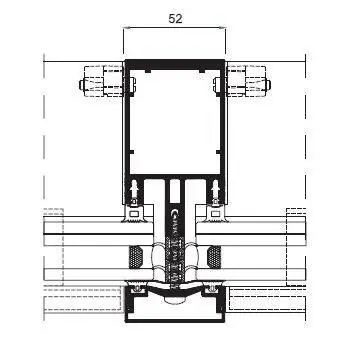

» Internal visible section: 2¹⁄₁₆” (52 mm)

» Extensive profile range: mechanical joints allow for all types of façades to be constructed (vertical, inclined, 90° corners, polygonal), and support large and heavy glazing configurations.

» Water tightness elements: drainage pipettes, tear strip gaskets, and vulcanized corners.

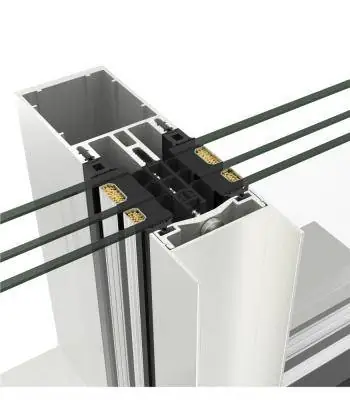

» Hybrid system evolved from the combination of TP 52 and SG 52 systems. It retains the pressed profile and cover profile pairing on horizontal gaskets, and uses clips and a U-profile for the vertical edge.

CategorySpecificationMetricStandard
GlazingMaximum glazing64 mm2 33⁄64″
Minimum glazing6 mm15⁄64″
OpeningTypeHidden Top HungHidden Top Hung
SectionsMullion52 mm2 3⁄64″
Transom52 mm2 3⁄64″
Profile ThicknessMullion2.1 & 3 mm5⁄64″ & 1⁄8″
Transom2.1 mm5⁄64″
Polyamide StripLength options6, 12, and 30 mm15⁄64″, 15⁄32″, and 1 3⁄16″
Opening DimensionsMin. Width (L)500 mm19 11⁄16″
Min. Height (H)650 mm25 19⁄32″
Max. Width (L)2500 mm98 27⁄64″
Max. Height (H)2500 mm98 27⁄64″
Weight LimitsMaximum weight per sash180 kg396.8 lbs
Maximum weight of fixed lites400 kg881.8 lbs
Note: Consult us for glazing thicknesses greater than 64 mm
Air Permeability
(EN 12152) CLASS AE
Watertightness
(EN 13114) CLASS RE1500
Wind load resistance
(EN 13116) APT
Thermal insulation (Uf)
Ucw from 0,6 (W/m²K)
