ECO Composite Panel

Efficient, economic, stylish and sustainable construction

ECO Composite panel PE features a core made of thermoplastic resins (low density polyethylene), offering high acoustic insulation (Rw: 26 dB), excellent impact resistance, superior mechanical properties, high rigidity, and lightweight construction (5.46 kg/m² / 1.12 lb/ft²). This versatile panel provides a wide range of applications with excellent thermal insulation (Ust 3.38 W/m²K / 0.595 Btu/(h·ft²·°F)).

ECO Composite panel FR incorporates a core of thermoplastic resins with fire-retardant properties, achieving B-s1,d0 classification according to European Norm EN-13501-1. This fire-resistant solution (8.02 kg/m² / 1.64 lb/ft²) is ideal for high-risk environments including hospitals, shopping centers, airports, and hotels, while maintaining good thermal performance (Ust 5.62 W/m²K / 0.989 Btu/(h·ft²·°F)).

INTDESIGN panel represents the interior-focused variant with a refined 3mm thickness (⅛″) and lightweight design (3.85 kg/m² / 0.79 lb/ft²), specifically engineered for interior applications where aesthetics and performance meet sustainability.

Premium Aluminum Alloys

ECO Composite panels utilize high-quality aluminum alloys specifically selected for their superior properties:

  • 3005H44 – Aluminum-manganese alloy with excellent formability and good corrosion resistance

  • 30105H44 – Enhanced manganese alloy variant offering improved strength and durability

  • 3105H46 – Aluminum-manganese alloy with higher manganese content for increased strength and work hardening

  • 5005H22 – Aluminum-magnesium alloy providing excellent corrosion resistance and surface finish

These alloys are chosen for their optimal balance of strength, formability, corrosion resistance, and surface quality, ensuring long-lasting performance in various environmental conditions.

Installation Options & Fixing Systems

ECO Composite panels offer versatile installation methods to suit different project requirements:

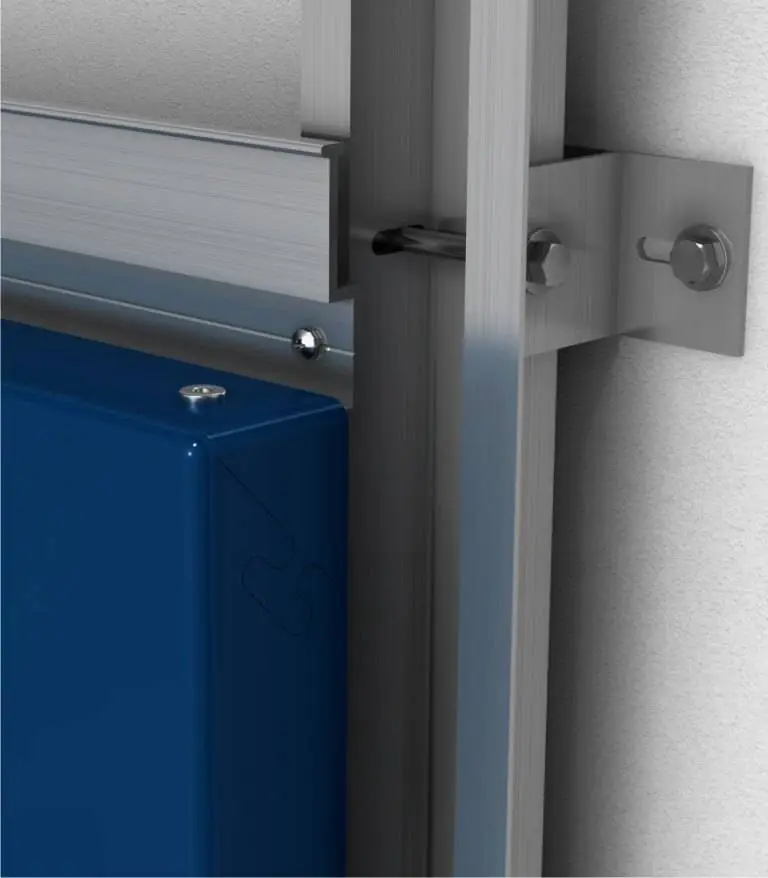

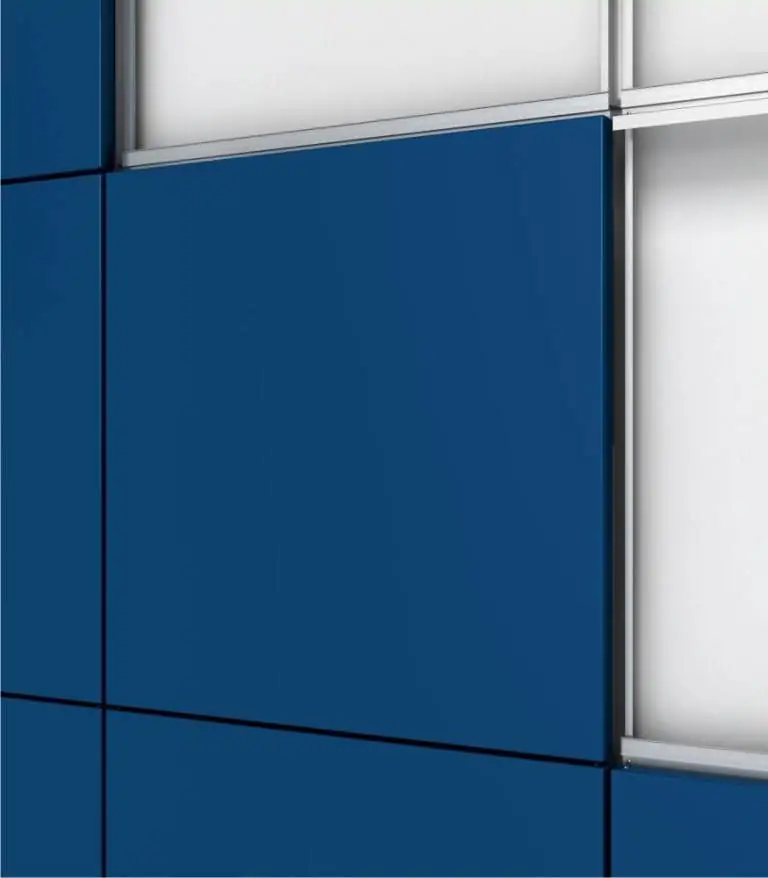

  • CH – Hanging system: Suspended mounting solution ideal for large facades and curtain wall applications, allowing for thermal movement and easy maintenance access

  • SZ – Male-Female system: Interlocking tongue-and-groove design providing seamless joints and enhanced weather sealing, perfect for continuous surfaces

  • Riveted system: Traditional mechanical fastening method offering exceptional hold strength and reliability for high-wind load applications

  • Glued system: Advanced adhesive bonding technique creating clean, invisible joints while maintaining structural integrity and weatherproofing

Construction & Specifications

All ECO Composite panels feature a construction of two aluminum sheets with three external layers of PvdF-painted aluminum, providing exceptional corrosion resistance, reliability, and durability. Standard panel thicknesses are 4mm (⁵⁄₃₂″) for PE and FR types, with aluminum thickness of 0.5mm (0.020″), while INTDESIGN features 3mm (⅛″) panels with 0.3mm (0.012″) aluminum.

Available in 40 stock finishes with all RAL colors available on request, these panels accommodate various installation methods to meet specific project requirements.

Standard dimensions range from 1250-1500mm (49″-59″) width with lengths up to 5000mm (16′-5″) for PE and FR panels, while INTDESIGN panels extend up to 1500mm (59″) width and 5050mm (16′-7″) length. Custom sizing is available within specified parameters to meet specific project requirements.
