W20 Hot Rolled Steel Windows

Historic Elegance with Modern Versatility

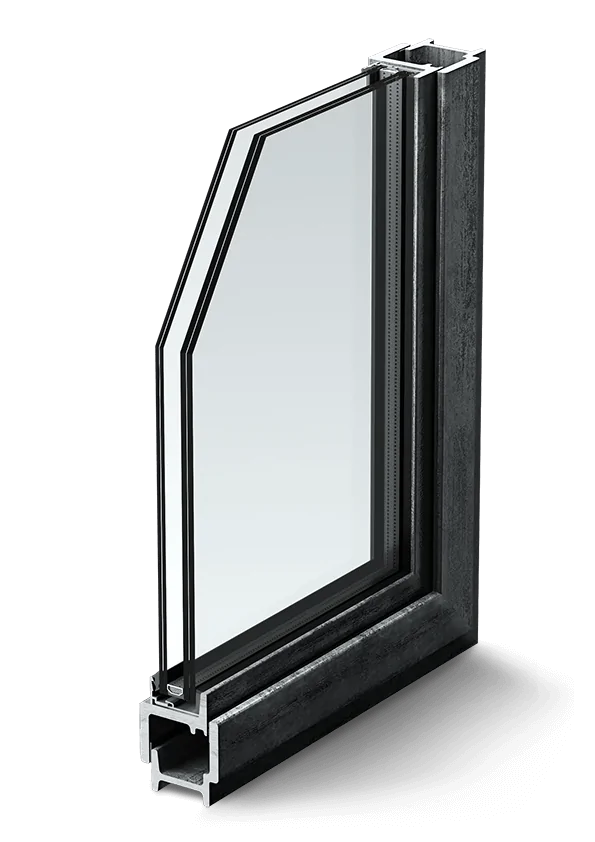

The W20 represents a perfect marriage of architectural heritage and contemporary design flexibility. Taking its origin from the British “Universal Range”, this complete line of 3⁄16″ to 1⁄4″ (3 to 5 mm) thick hot-rolled steel profiles brings the historic design of the 20th century into modern applications with its timeless aesthetic. With a profile depth of approximately 13⁄16″ (20 mm) as indicated by its name, the W20 system offers exceptional versatility for both external openings and internal partitions, maintaining stylistic continuity throughout architectural projects.

The currently available range was revised in 1964 and condensed from three separate profile ranges into one medium-range system that preserves the authentic character of historic steel windows while meeting contemporary needs. The system’s slender profiles and minimalist sight lines create a distinctly transparent appearance that maximizes glass area, providing abundant natural light and unobstructed views. This elegant profile system accommodates insulating glass up to 13⁄16″ (21 mm) thick, making it suitable for a wide range of applications from heritage restorations to modern designs requiring an industrial aesthetic.

The W20 offers remarkable configuration flexibility with side-hung windows opening inwards and outwards, pivoting windows, sliding and folding doors — all while maintaining the authentic character of traditional steel fenestration. Installation options include both internal and external overlapping sightlines to suit various architectural requirements. The profile’s self-adhesive non-shrinking gaskets ensure weather protection without compromising the system’s clean lines, while the wide range of exclusive fittings, both contemporary and reproduced from original designs of the modern era, allows for perfect period authenticity or modern reinterpretation.

Available with a variety of glazing bead options to create different window aesthetics, the W20 can be finished in “natural steel” surface finish for an industrial look in interior partitions, or coated in any RAL or custom color for exterior applications. The system’s authentic hot-rolled steel construction provides the distinctive texture and character that distinguishes genuine steel windows from imitations in other materials. Each profile exemplifies Otto Stumm’s commitment to preserving architectural heritage while offering designers the freedom to create spaces that blend historic charm with contemporary functionality.

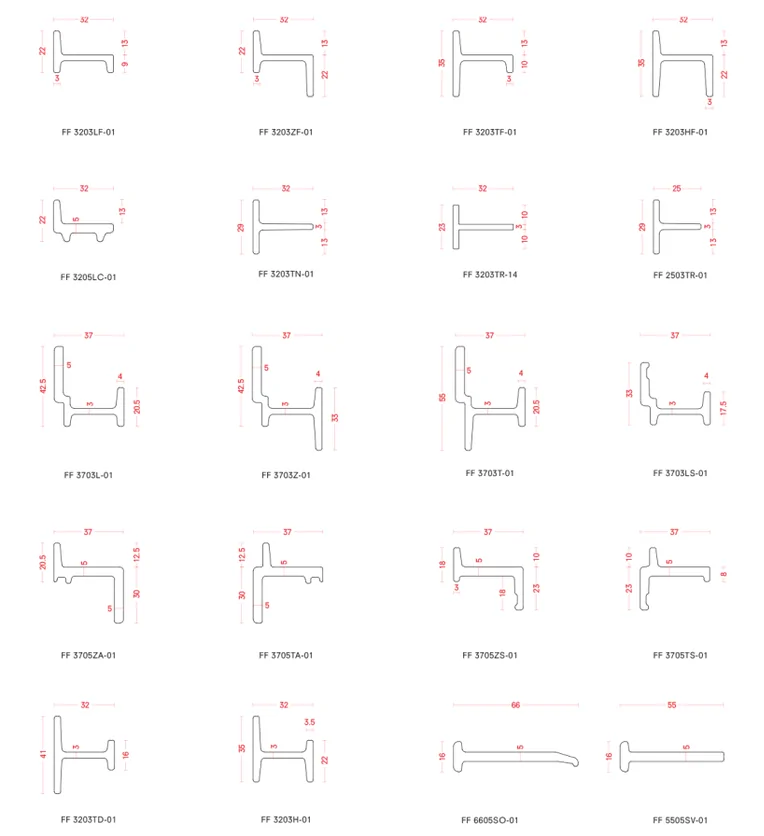

Profile

Technical Specifications

Profile Specifications

FeatureMetricStandard
Profile MaterialHot-rolled steel
Profile Thickness3 to 5 mm3⁄16″ to 1⁄4″
Profile Depth20 mm13⁄16″
Profile ConstructionSolid steel profile
Surface Finish“Natural steel” industrial look or coating in any RAL or customized colors
Sealing SystemSelf-adhesive non-shrinking gaskets
SightlinesBoth internal and external overlapping options
Visible SectionMinimized for maximum glass area and slender appearance

Performance Values

ParameterMetricStandard
Thermal Transmittance (Uf)Non-thermal break system (typical of historic steel windows)
Air PermeabilityClass 2 (EN 12207) when properly installed with gaskets
Water TightnessClass 4A (EN 12208) when properly installed with gaskets
Wind ResistanceClass C3 (EN 12210)
Sound InsulationUp to 38 dB (depending on glazing)
Heritage CompatibilityIdeal for historic renovations where original steel window profiles need to be replaced
Life CycleExtended durability with proper maintenance (proven by century-old installations)

Configuration Options

FeatureMetricStandard
Window TypesSide-hung, top-hung and bottom-hung windows, pivoting windows
Door TypesSingle leaf, double leaf, sliding and folding doors
Opening DirectionsInward opening, outward opening
Maximum Window/Door SizeDependent on static requirements and local building codes
Maximum Glazing ThicknessUp to 21 mmUp to 13⁄16″
Glazing Bead OptionsFV 1010R-01, FV 1313A-01, FV 1310S-00, FV 1302R-00
Glazing Types CompatibleSingle glazing, double glazing, safety glass, textured/patterned glass
Special ApplicationsInterior partitions, heritage restorations, industrial-style architecture

Hardware Specifications

ComponentOptions
Window HingesC99105-25, C99000-12 (standard window)
Door HingesC99004-12, C99107-25 (standard door), C99328-04 (pivot door)
Locking SystemsTraditional cremone bolts, lever handles, push/pull handles
Handle OptionsWide range of exclusive fittings, both contemporary and reproduced from original designs of the modern era
Security HardwareBasic security options; not designed as a high-security system

Installation Parameters

ParameterSpecification
Frame Installation MethodsDirect fixing, bracket mounting, welding to substructure
Wall Construction CompatibilityMasonry, concrete, steel, timber frame
Perimeter SealingSelf-adhesive non-shrinking gaskets, silicone sealant compatibility
Special ConsiderationsIdeal for historic preservation projects requiring approval from conservation authorities
Expansion AllowanceDesigned to accommodate thermal expansion

Certifications and Testing

Certification/TestStandard
Heritage ApprovalAccepted for use in many historic preservation projects worldwide
Quality ManagementISO 9001 certified production
Historical AuthenticityOriginal hot-rolling production technique, matching historic profiles

Note: All specifications are subject to change as part of continuous product improvement. Please consult with our representative for the most current technical data and project-specific requirements.
