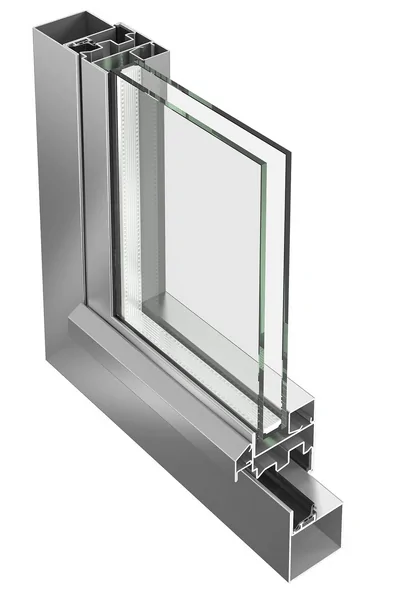

Jansen Janisol-Economy 50: Versatile Steel Window and Door Frame System

Discover the Janisol Economy 50, a sophisticated steel frame system engineered for elegant window and door designs where thermal insulation isn’t required. With its sleek 50mm installation depth, this system delivers exceptional versatility and performance for modern architectural applications.

Premium Material Options

Steel Finishes

  1. Uncoated steel construction
  2. Strip-galvanized steel options
  3. Compatible with powder coating
  4. Suitable for stove-enameling treatments

Stainless Steel Variants

  1. Grade 1.4307 stainless steel
    • Available uncoated
    • Polished finish option
  2. Grade 1.4404 stainless steel
    • Uncoated version
    • Professional polishing available

Versatile Window Configurations

Casement Options

  1. Single casement designs
  2. Double casement configurations
  3. Optional fixed side panels
  4. Customizable transom windows

Opening Types

  1. Side-hung windows
  2. Turn-tilt functionality
  3. Bottom-hung design
  4. Top-hung configuration
  5. Double-vent systems
  6. Partition wall applications

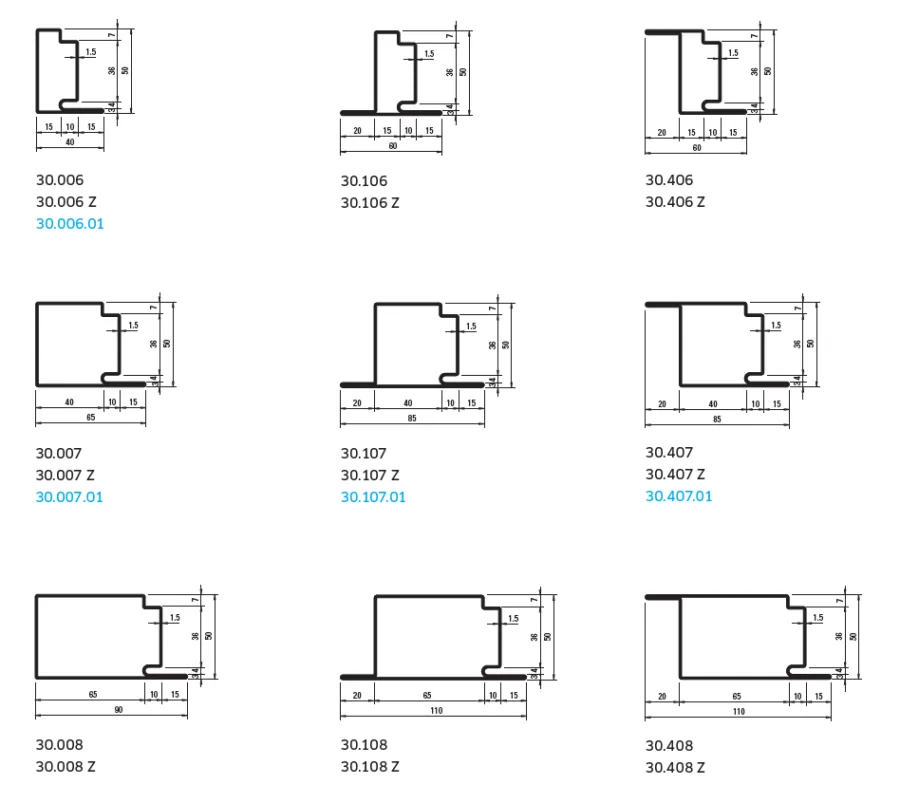

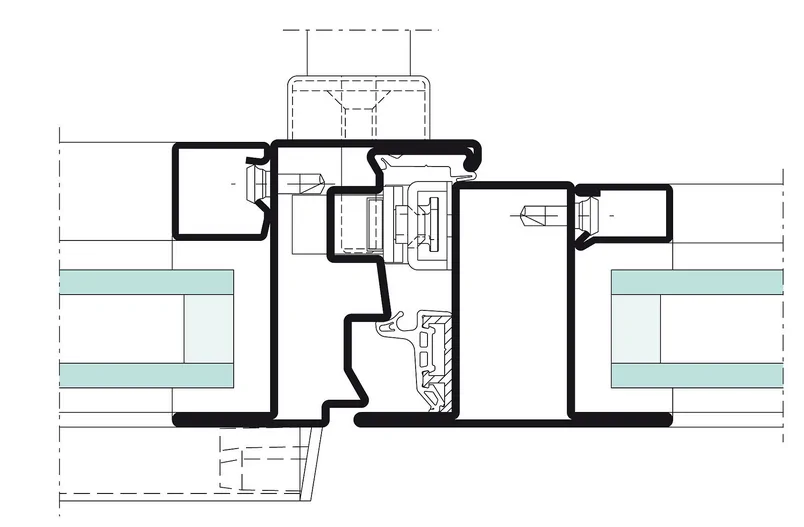

Profile

Advanced Technical Features

System Specifications

  1. Installation depth options:
    • Standard 1.97 inches depth
    • Extended 2.3 inches depth
  2. Maximum casement weight: 397 lbs
  3. Custom geometric possibilities:
    • Semi-circular tops
    • Trapezoidal windows
    • Special shapes available


Professional Applications
Ideal For:

  1. Commercial buildings
  2. Modern office spaces
  3. Retail environments
  4. Industrial applications
  5. Contemporary residential projects


Design Benefits

  1. Slender profile aesthetics
  2. Elegant window appearance
  3. Versatile configuration options
  4. Professional finish choices
Benefits of Steel Doors and windows
ecosteel-s20

Steel doors and windows offer exceptional durability and strength, resisting warping and weather damage while requiring minimal maintenance. Their slim profiles provide maximum glass area, allowing abundant natural light and creating sleek, contemporary aesthetics. They excel in security with superior break-in resistance and fire-resistant properties. Energy efficiency is enhanced through excellent insulation and weather-tight seals. The design versatility allows custom sizes and finishes to match any architectural style. As a long-term investment, they increase property value while being environmentally friendly due to their recyclability and longevity.

Float or Frosted?
Frosted (matte) glass
Float (transparent) glass
Glass types
About ecosteel

EcoSteel: Where Minimalist Design Meets Unlimited Customization

EcoSteel, our premium brand at EcoWindows, specializes in custom-crafted steel windows, doors, facades, and partition systems that combine minimalist elegance with exceptional functionality for both interior and exterior applications. Each product is meticulously designed using high-quality materials, premium hardware, and cutting-edge technology. Our steel systems feature narrow face widths and expansive glass areas, creating maximum transparency for contemporary spaces while providing robust exterior solutions for architectural facades. We offer comprehensive design approaches for both interior divisions and exterior envelopes, enhancing building aesthetics while maintaining an open, communicative atmosphere. With our modern construction solutions that create large glazed areas, EcoSteel transforms both architectural exteriors and interior spaces through customizable systems available in virtually unlimited color options and configurations. Our exterior steel solutions deliver outstanding thermal performance with advanced glazing technologies that keep interiors comfortable year-round.
