Home » Eco Steel » CPX TB Interior Steel and Stainless Steel Doors & Windows

CPX TB Interior Steel and Stainless Steel Doors & Windows

Design Innovation and Flexibility

The CPX system represents a breakthrough in customizable interior steel door and window profiles, offering both thermal barrier and non-thermal barrier options in steel and stainless steel materials. This innovative system empowers architects and specialized window manufacturers to create distinctive designs that transcend standard offerings.

Features:

Steel or stainless steel flanges with sharp corners
Customized design
Self-adhesive non-shrinking gaskets
Accommodates double and triple glazing
Thermal barrier in fiberglass-reinforced polyamide or solid steel
Compatible with different glazing beads
Compatibility with existing fittings

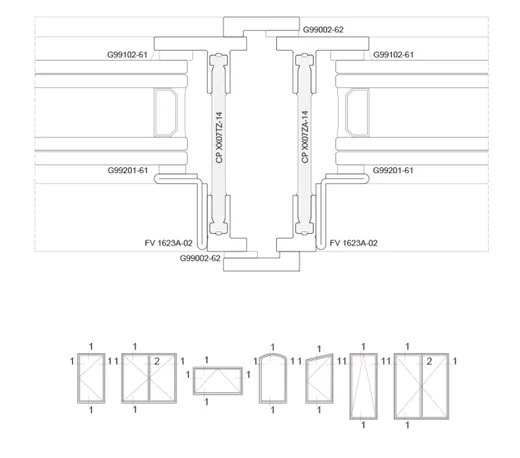

Fixed glazing, single-sash and double-sash, side-hung and bottom-hung windows opening inwards and outwards, top-hung, vertical and horizontal pivoting windows, window and doors opening inwards and outwards

Profile

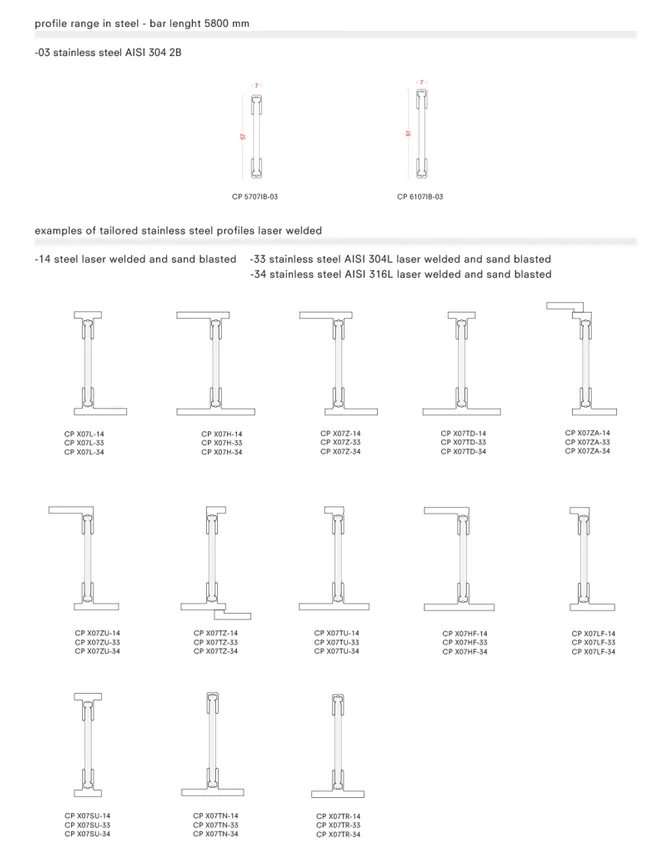

Customization Capabilities

Complete control over profile dimensions, including custom thickness and width specifications
Freedom to design unique outer flange contours
Advanced web construction featuring high-performance fiberglass-reinforced polyamide
Mechanical steel adapter integration in CPX TB models
Non-thermal barrier option utilizing full steel construction (CPX)
Precision laser line technology connecting outer flanges to the web

Technical Considerations

While the CPX and CPX TB systems offer unlimited design possibilities, they require specific certification processes. Unlike standard profile systems, these customized solutions need country-specific or project-specific certification. Our team provides comprehensive support for testing and certification requirements.

Technical Features

Adaptable profile thickness to meet project requirements
Customizable width specifications
Flexible outer flange design options
High-performance thermal barrier construction
Advanced mechanical connections
Precision laser-line joining technology
Full engineering support services

Benefits of Steel Doors and windows

Steel doors and windows offer exceptional durability and strength, resisting warping and weather damage while requiring minimal maintenance. Their slim profiles provide maximum glass area, allowing abundant natural light and creating sleek, contemporary aesthetics. They excel in security with superior break-in resistance and fire-resistant properties. Energy efficiency is enhanced through excellent insulation and weather-tight seals. The design versatility allows custom sizes and finishes to match any architectural style. As a long-term investment, they increase property value while being environmentally friendly due to their recyclability and longevity.

Float or Frosted?

Frosted (matte) glass

Float (transparent) glass

Glass types

About ecosteel

Experience the ultimate in personalization with Ecosteel SF’s made-to-measure steel doors. Our expert craftsmen work with you to create doors that perfectly match your vision, from size and style to finish and hardware. Whether you prefer minimalist designs or elaborate multi-panel configurations, we bring your ideas to life.
