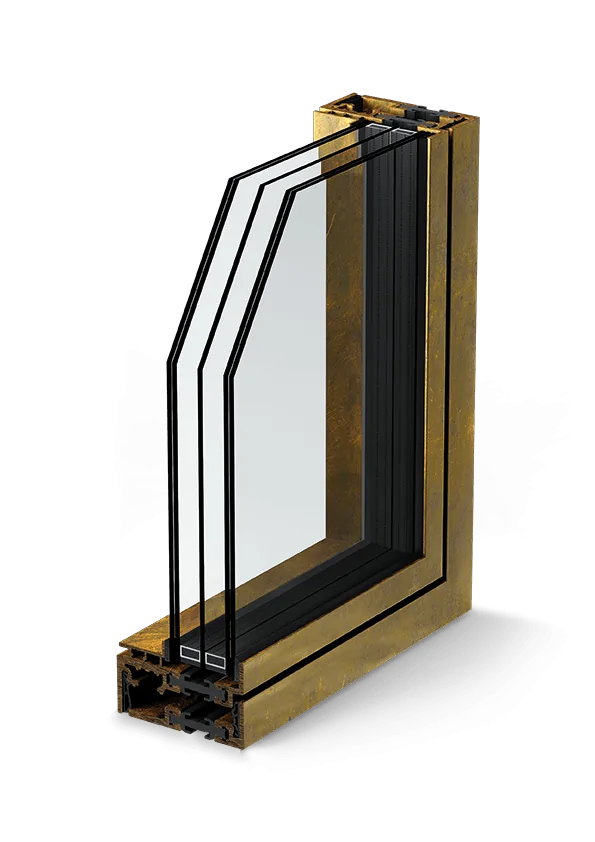

The B75TB Architectural Bronze Profile System represents the pinnacle of luxury window and door design, crafted for projects demanding uncompromising prestige. This living material offers unlimited patination possibilities, creating windows and doors with incomparable character that evolves beautifully over time.

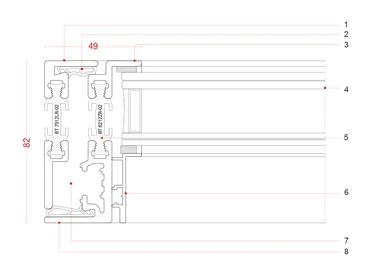

With a substantial 2.95-inch profile depth, the B75TB system accommodates advanced insulating glass up to 2.05 inches thick. The sophisticated fiberglass-reinforced polyamide thermal break delivers exceptional insulation performance, making it the ideal choice for projects in regions with demanding climate conditions and stringent energy efficiency requirements.

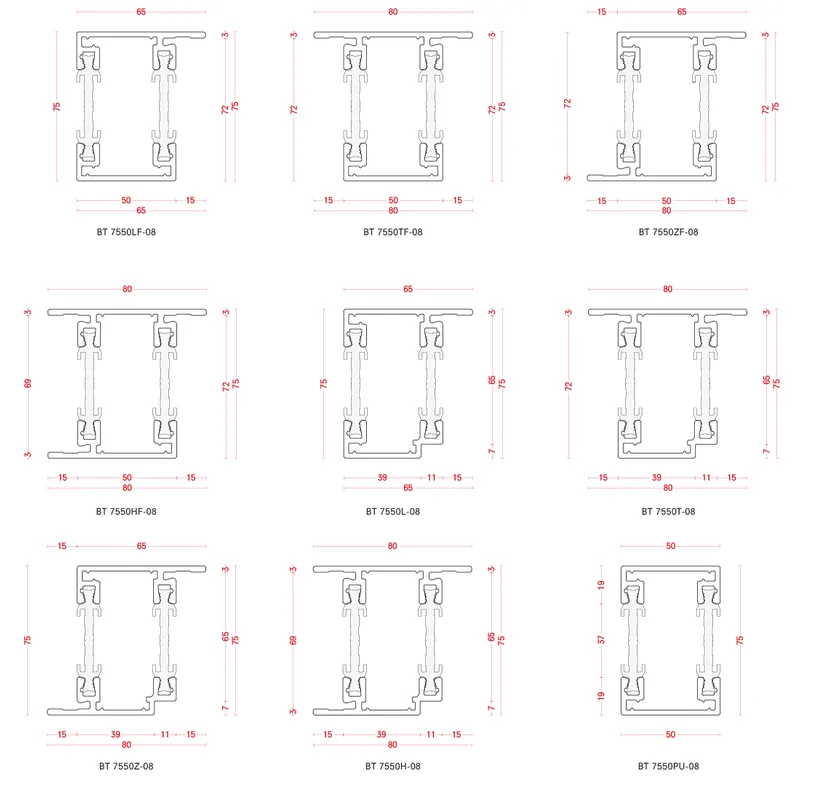

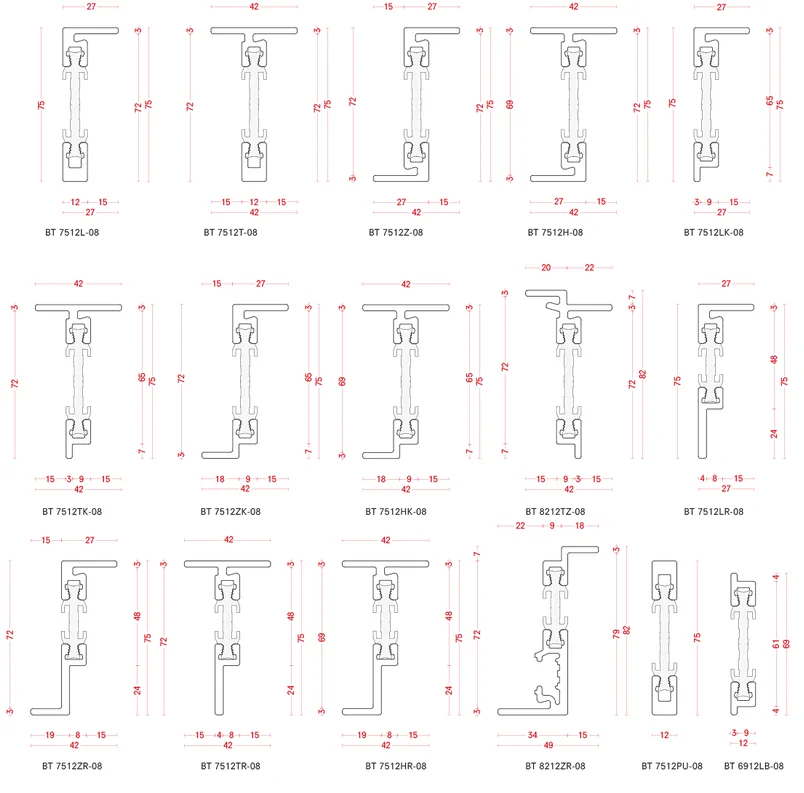

The system utilizes solid extruded profiles engineered for durability and precision. Whether specified in flush or overlapping designs, the B75TB maintains remarkably slim sightlines while supporting high-performance glazing. The integration of mechanically fixed rebate gaskets ensures superior weatherproofing and longevity.
Architects can choose from an extensive selection of square and angular glazing beads, complemented by both visible and concealed hardware options. The system supports diverse configurations including fixed glazing, single and double-sash designs, side-hung and bottom-hung windows with inward or outward opening capabilities, top-hung applications, tilt and turn functionality, and vertical or horizontal pivoting options. This versatility extends to both windows and doors.
Each installation features exclusive fittings and accessories faithfully reproduced from original modern-era designs. This attention to historical detail ensures that contemporary performance requirements never compromise architectural authenticity.
The advanced thermal barrier system, powered by fiberglass-reinforced polyamide technology, delivers superior insulation properties that exceed stringent energy conservation standards. This makes the B75TB particularly valuable for projects in regions with extreme weather conditions or strict environmental regulations.
The B75TB Architectural Bronze System stands as the definitive choice for prestigious architectural projects where exceptional thermal performance must harmonize with timeless bronze aesthetics. Its versatile design possibilities and superior engineering make it equally suitable for high-end contemporary construction and historical renovation work.
Benefits of Steel Doors and windows
Steel doors and windows offer exceptional durability and strength, resisting warping and weather damage while requiring minimal maintenance. Their slim profiles provide maximum glass area, allowing abundant natural light and creating sleek, contemporary aesthetics. They excel in security with superior break-in resistance and fire-resistant properties. Energy efficiency is enhanced through excellent insulation and weather-tight seals. The design versatility allows custom sizes and finishes to match any architectural style. As a long-term investment, they increase property value while being environmentally friendly due to their recyclability and longevity.
Float or Frosted?
Glass types
About ecosteel
Experience the ultimate in personalization with Ecosteel SF’s made-to-measure steel doors. Our expert craftsmen work with you to create doors that perfectly match your vision, from size and style to finish and hardware. Whether you prefer minimalist designs or elaborate multi-panel configurations, we bring your ideas to life.
