Premium Aluminum Pergolas with Rotating Slats | ECO Luxe & Skyline Systems

Why Choose ECO Pergola Systems?

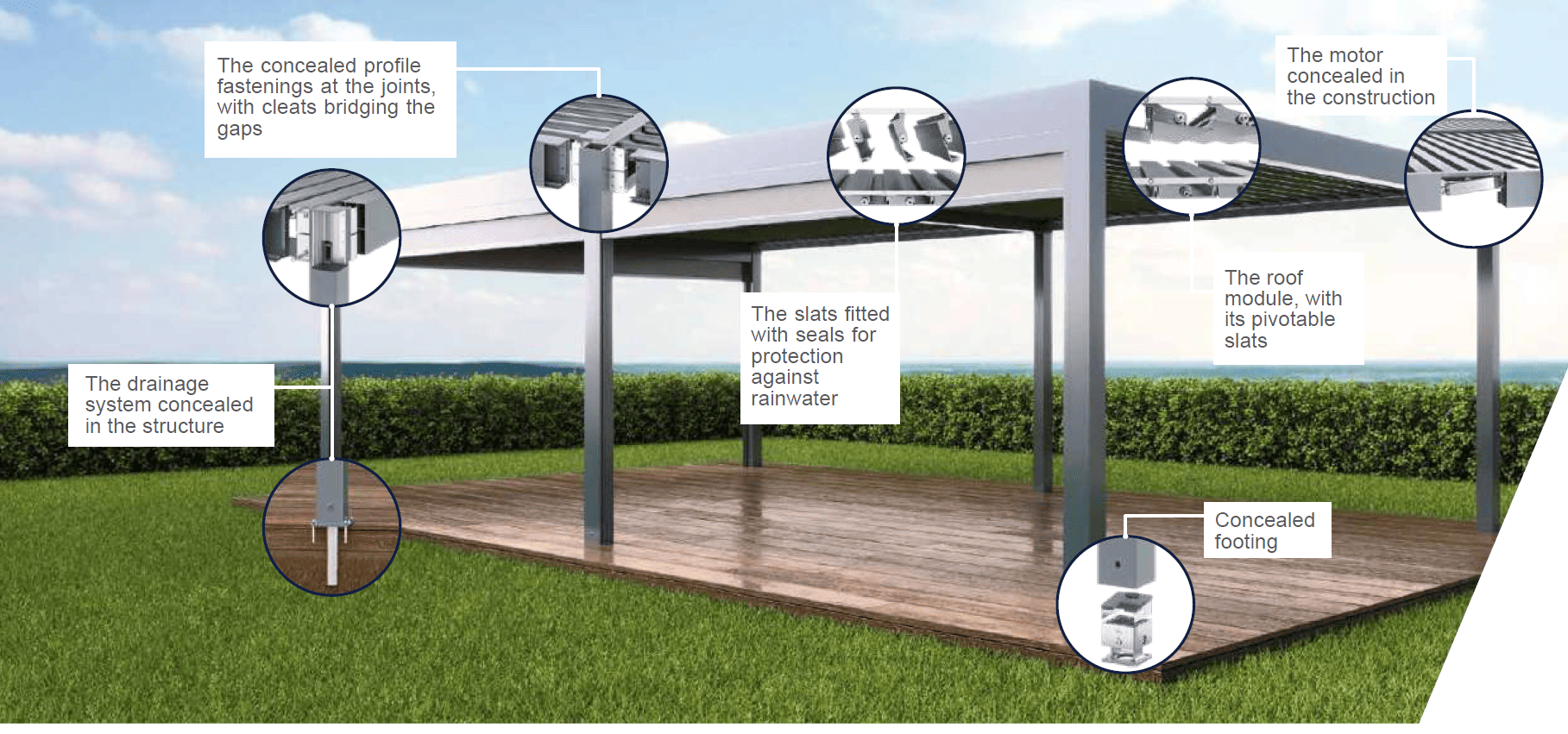

Advanced Weather Protection Technology

  • Motorized aluminum slats rotate 0° to 135° for precise sun and rain control
  • Integrated weatherproof sealing system with gaskets
  • Built-in drainage system concealed within posts
  • Wind resistance up to 62 mph (100 km/h)

Versatile Installation Options

  • Free-standing pergolas up to 22’11½” x 16’4⅞”
  • Wall-mounted systems with insulated wall brackets
  • Single-bay and two-bay configurations available
  • Corner and oblong installation options

Smart Home Integration

  • Remote control and smartphone app operation
  • Weather sensors (rain, wind, temperature)
  • Integration with home automation systems
  • LED lighting with adjustable intensity

Premium Outdoor Living with Eco Pergola Systems

Transform your outdoor living space with ECO’s innovative aluminum pergola systems featuring motorized rotating slats. Our premium bioclimatic pergolas offer the perfect blend of style, functionality, and weather protection for residential and commercial applications.

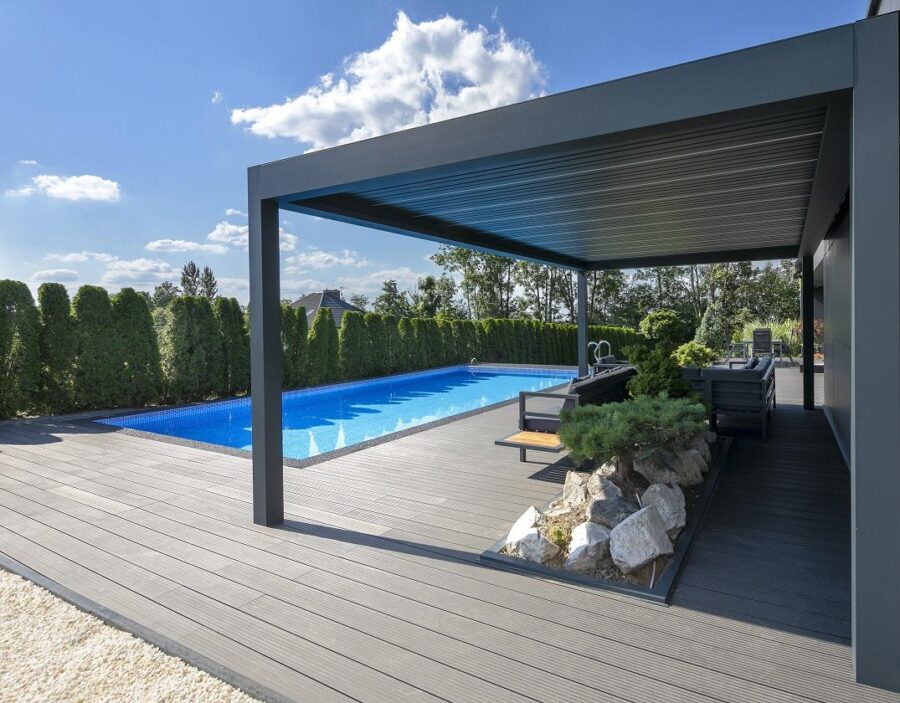

Eco Skyline Pergola System Modern Elegance Meets Engineering Excellence

Designed for larger outdoor spaces, the ECO Skyline pergola system combines exceptional durability with elegant aesthetics. The robust aluminum construction features square 5.5″ (140mm) posts and can withstand significant snow and wind loads, making it ideal for both residential patios and commercial applications.

Key Specifications:

  • Maximum dimensions: 22’11½” x 16’4⅞” x 9’10⅛”
  • Snow load capacity: 41 lbs/ft² (200 kg/m²)
  • Wind resistance: 59 mph simultaneous with snow load
  • Slat rotation: 0° to 135°
  • Post dimensions: 5.5″ (140mm) square

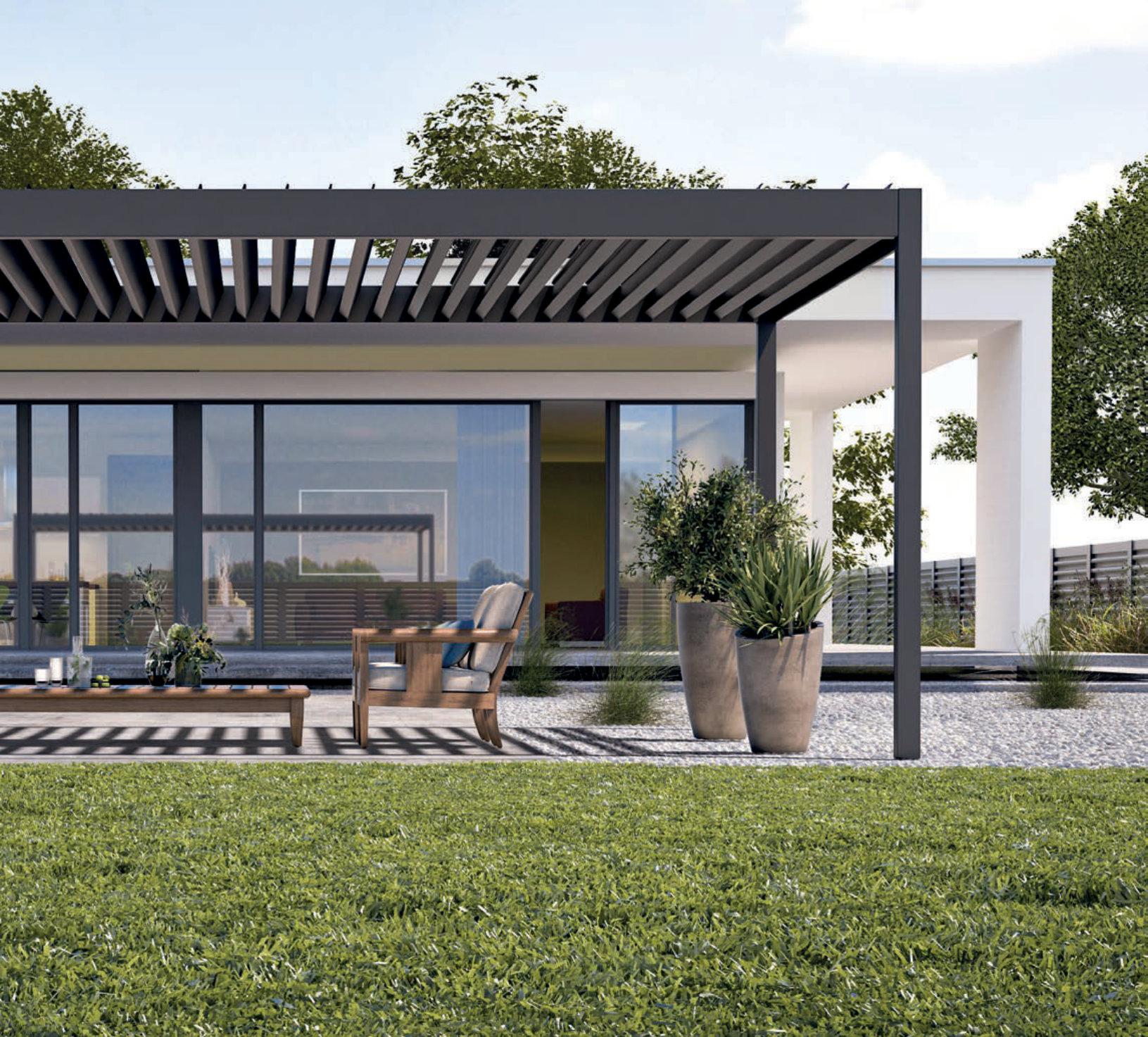

Eco Luxe Pergola System
Versatile Comfort with Timeless Design

The ECO Luxe pergola system represents the pinnacle of outdoor living comfort, featuring automatically rotating aluminum slats that provide natural ventilation while protecting against sun and rain. Available in both free-standing and wall-mounted configurations, this versatile system adapts to any architectural style.

Key Specifications:

  • Maximum width: 13’1″ (4000mm)
  • Maximum outreach: 23’0″ wall-mounted, 22’6″ free-standing
  • Maximum height: 9’10” (3000mm)
  • Blade rotation: 0° to 110°
  • Wind resistance: 500 Pa (62 mph winds)

Free-standing or wall-mounted?

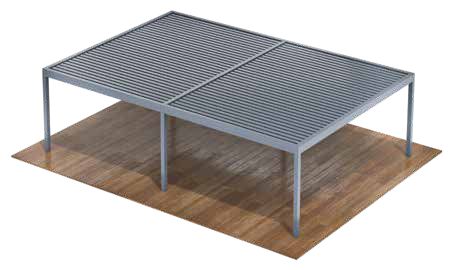

Transverse, free-standing, two-bay pergola

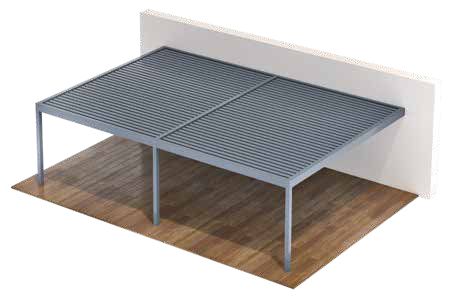

Oblong, wall-mounted, two-bay pergola

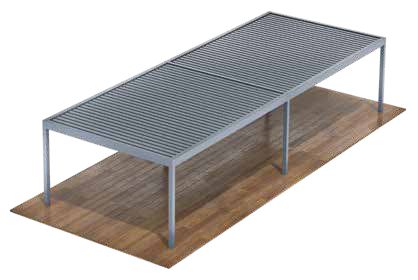

Oblong, free-standing, two-bay pergola

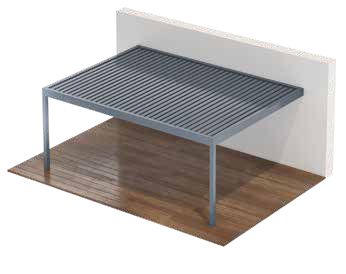

Wall-mounted pergola

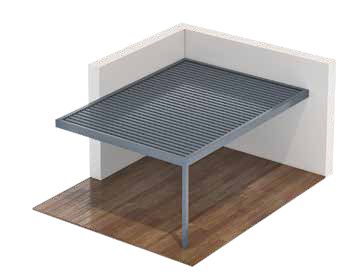

Corner, wall-mounted pergola

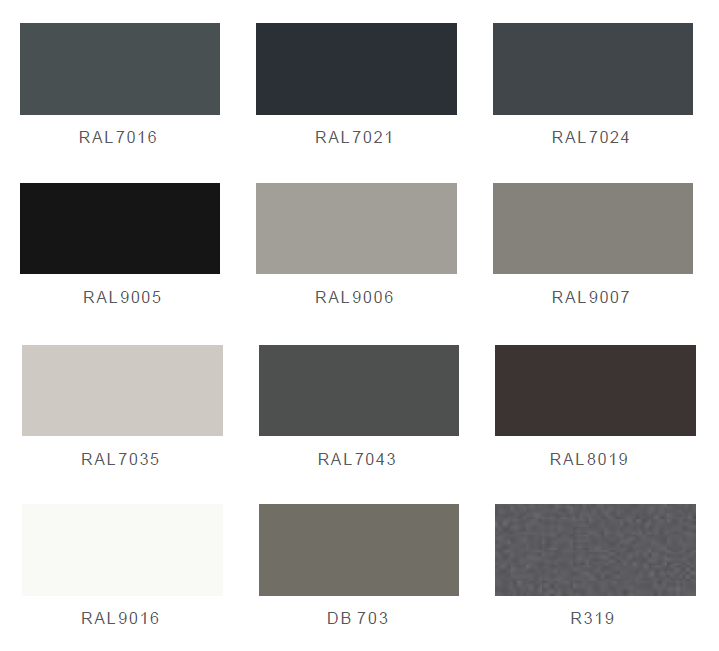

STANDARD COLORS

Basic color range includes matt or structural coatings according to Eco Windows price lists. The colors shown above are for illustrative purposes only,and the actual appearance may differ from the color shown in photographs.

Ready to Transform Your Patio?

Additional elements

Zip screen roller shutters

Zip screen sunshades: High-quality
translucent and opaque fabrics in a wide
range of colors allow perfect adaptation
of the roller shutter to the building design.

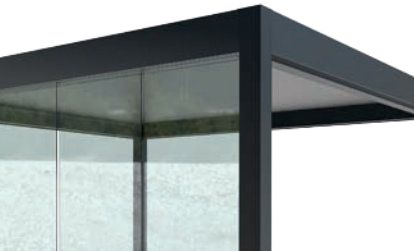

Glazing

Slide Glass: The system features minimal
visibility of aluminum profile edges,
ensuring transparency and visual simplicity
of the construction.

Lighting

Linear lighting: Located in the pergola slats
and on the construction frame. Available in white linear lighting. Cabling is aesthetically concealed within the construction.  Additional option for adjustable luminous intensity. Remote-controlled or controllable
via an app.

Weather sensors

Weather sensors ensure comfort and safety. The rain, wind, and snow sensors automatically send signals during adverse weather conditions, causing the roller shutters to close and protect the terrace equipment. The pergola equipped with weather sensors features intelligent technology that responds to changing weather conditions.

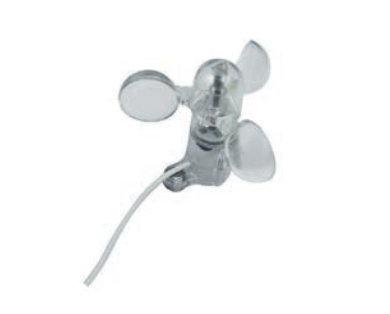

wind sensor

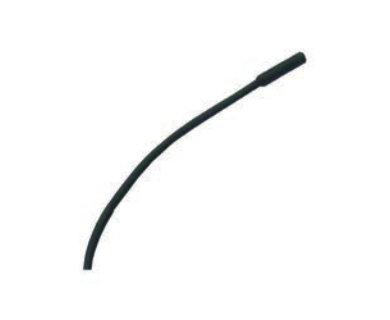

temperature sensor

rain sensor

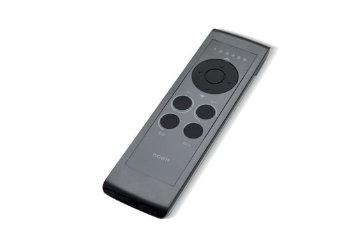

SMART MANAGEMENT AT YOUR FINGERTIPS

Both  Pergola Systems feature a fully electric roof control mechanism that’s completely concealed within the frame. The slat angle adjusts smoothly from 0° to 135°, giving you precise control over both sunlight and natural ventilation. You can operate the system with a remote control, a wall switch, a smartphone app, or through scenes programmed into a smart-home control system. Optional accessories include wind, rain, and sun sensors to enhance comfort. If side shades or panels are installed, they can be fully integrated with the roof control system, allowing you to control the entire pergola from a single device.

Premium Eco Pergola Systems FAQ:

Eco Pergola slats are designed with intelligent weather response capabilities:

Sunny Conditions:

  • Slats can be adjusted from 0° to 110°/135° to control sunlight exposure
  • Partial closure provides filtered light while maintaining ventilation
  • Full closure creates complete shade protection

Rainy Weather:

  • Slats close completely to form a weatherproof roof
  • Integrated gasket sealing system prevents water penetration
  • Built-in drainage channels direct water through posts to storm drains
  • Optional rain sensors automatically close slats when precipitation is detected

Windy Conditions:

  • Systems tested for wind loads up to 62+ mph
  • Wind sensors can automatically adjust slats to reduce wind resistance
  • Slats can be positioned to minimize wind uplift while maintaining protection

Snow and Ice:

  • Skyline system supports up to 41 lbs/ft² snow load
  • Slats can be kept closed to prevent snow accumulation in mechanisms
  • Heating accessories available to prevent ice formation
  • Temperature sensors help optimize slat positioning for weather conditions

Automated Weather Response: Weather sensors (rain, wind, temperature) provide automatic protection by adjusting slats and closing zip screens when adverse conditions are detected.

Eco Aluminum Pergolas are designed for minimal maintenance:

Regular Maintenance (Monthly):

  • Visual inspection of slat operation and motor function
  • Clean debris from drainage channels and gutters
  • Check for any loose fasteners or connections
  • Test remote control and automation systems

Seasonal Maintenance (2-3 times per year):

  • Wash aluminum surfaces with mild soap and water
  • Lubricate moving parts according to manufacturer specifications
  • Clean and inspect weather seals and gaskets
  • Remove leaves, snow, or debris from slat mechanisms
  • Check zip screen fabric for wear or damage (if applicable)

Annual Professional Maintenance:

  • Motor and automation system inspection
  • Electrical connection testing
  • Structural integrity assessment
  • Weather sensor calibration
  • Replacement of wear parts as needed

Cleaning Tips:

  • Use non-abrasive cleaners only
  • Avoid pressure washing directly into motor housing
  • Clean glass panels (if installed) with standard glass cleaners
  • Powder-coated aluminum finish is fade and corrosion resistant

Yes, Eco Pergolas can be installed on existing patios with proper planning:

Surface Requirements:

  • Concrete patios: Ideal foundation for anchoring posts
  • Stone/brick patios: Suitable with proper fastening systems
  • Composite decking: May require structural reinforcement
  • Minimum concrete thickness: 4″ for residential, 6″ for commercial applications

Installation Options:

Free-Standing Installation:

  • Posts anchored directly into existing concrete
  • Requires core drilling for anchor bolts
  • Minimal disruption to existing patio surface
  • Can be positioned to work around existing features

Wall-Mounted Installation:

  • One side attaches to existing structure
  • Reduces number of posts needed
  • Requires structural wall assessment
  • Special brackets available for insulated walls

Eco Pergolas integrate with most major smart home platforms and automation systems:

Control Methods:

  • Dedicated remote control (included)
  • Smartphone app for iOS and Android
  • Wall-mounted control switches
  • Integration with home automation panels

Compatible Smart Home Systems:

  • Amazon Alexa integration
  • Google Home compatibility
  • Apple HomeKit support (varies by model)
  • KNX/EIB building automation systems
  • Most Z-Wave and Zigbee controllers
  • Custom home automation systems

Smart Features Available:

  • Voice control: “Alexa, close the pergola”
  • Scheduled operation: Automatic daily routines
  • Scene programming: Preset combinations of slats, screens, and lighting
  • Geofencing: Automatic operation based on location
  • Weather-based automation: Response to local weather conditions

Sensor Integration:

  • Rain sensors: Automatic closure during precipitation
  • Wind sensors: Adjustment for high wind conditions
  • Temperature sensors: Climate-responsive operation
  • Sun sensors: Automatic shading based on sunlight intensity

Installation timeframes vary based on system complexity and site conditions:

Standard Installation Times:

  • Free-standing: 1-2 days
  • Wall-mounted: 1 day
  • Single bay: 1-3 days
  • Two-bay configuration: 2-4 days
  • Large commercial installations: 3-7 days

    Includes basic electrical connections and testing.

Yes, both zip screens and sliding glass panels can be added to existing Eco Pergola installations:

While retrofit is possible, planning for desired accessories during initial installation is more cost-effective and ensures optimal integration with the pergola’s design and control systems.
