W75 Premium Steel Window Door System

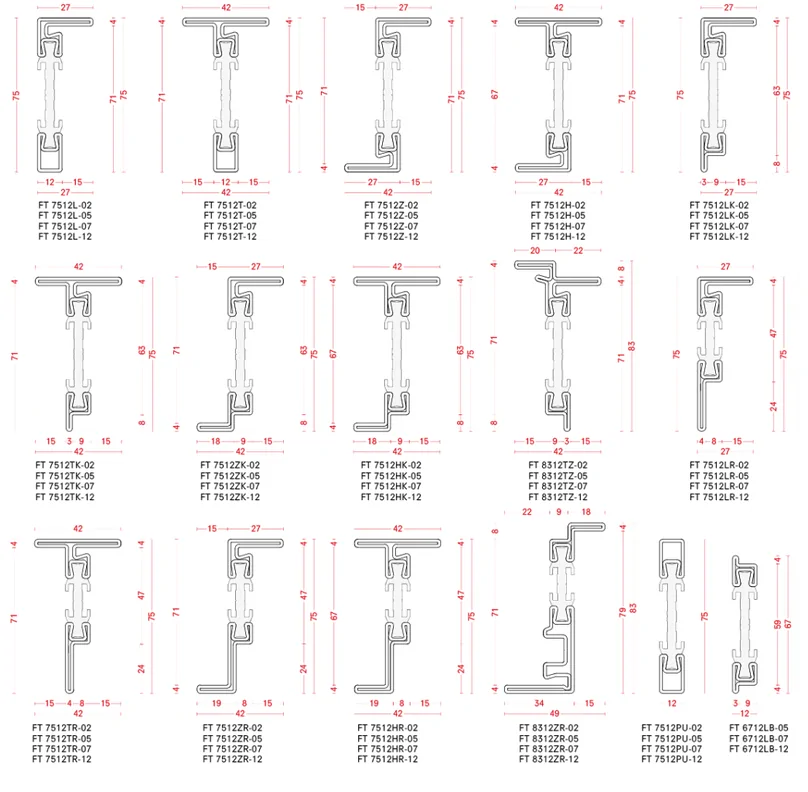

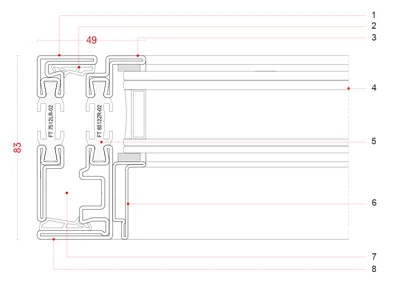

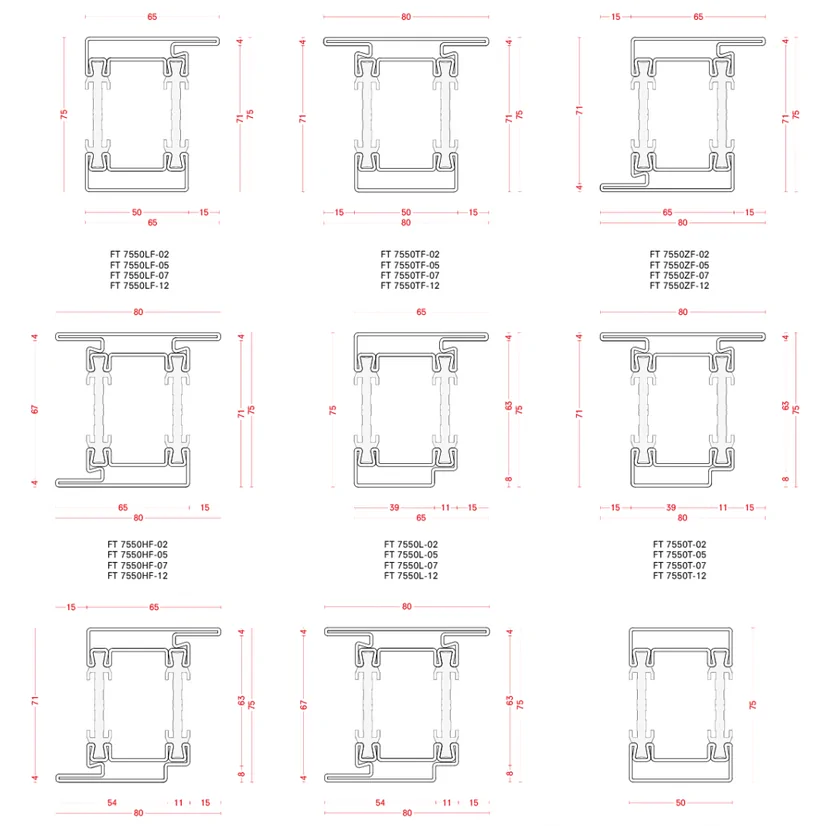

The W75 system represents our most advanced thermally insulated steel window solution, featuring slim profiles and distinctive surface textures. With a 2.95-inch profile depth and 25 unique profile geometries, this system accommodates high-efficiency insulating glass up to 2.05 inches thick.

Technical Features

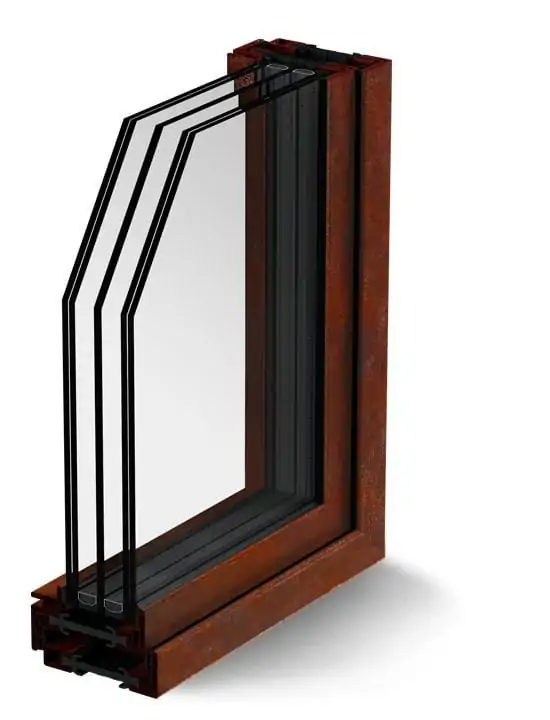

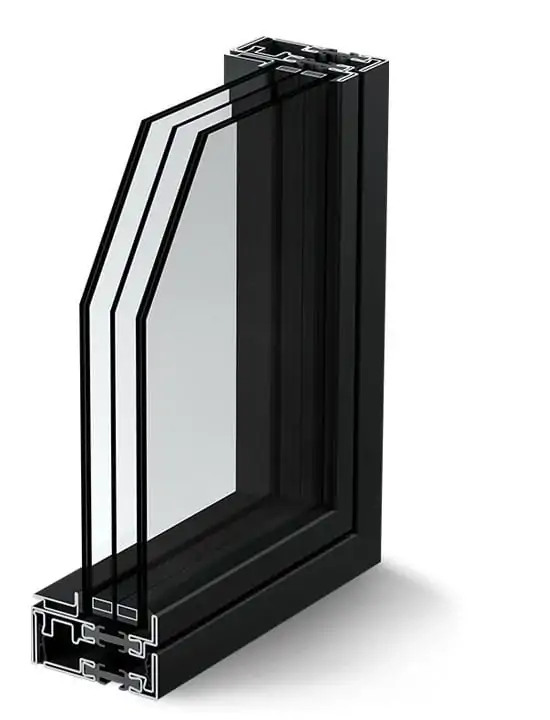

  1. Tubular profiles (0.059-inch thickness) available in:
    • Bright steel (non-galvanized)
    • Galvanized steel
    • Cor-ten steel
    • Stainless steel (grade 1.4404)
  2. Fiberglass-reinforced polyamide thermal barrier
  3. Mechanically secured weatherstripping
  4. Slim-line flush or overlapping designs
  5. High-performance glazing compatibility
  6. Premium thermal insulation properties

Design Options

  1. Multiple window configurations:
    • Fixed glazing
    • Single and double-sash designs
    • Side-hung operation
    • Bottom-hung functionality

Ideal for projects in demanding climates with strict energy-efficiency requirements, this system combines historical authenticity with modern performance standards.

Benefits of Steel Doors and windows

ecosteel-s20

Steel doors and windows offer exceptional durability and strength, resisting warping and weather damage while requiring minimal maintenance. Their slim profiles provide maximum glass area, allowing abundant natural light and creating sleek, contemporary aesthetics. They excel in security with superior break-in resistance and fire-resistant properties. Energy efficiency is enhanced through excellent insulation and weather-tight seals. The design versatility allows custom sizes and finishes to match any architectural style. As a long-term investment, they increase property value while being environmentally friendly due to their recyclability and longevity.

Float or Frosted?

Frosted (matte) glass
Float (transparent) glass

Glass types

About ecosteel

Experience the ultimate in personalization with Ecosteel SF’s made-to-measure steel doors. Our expert craftsmen work with you to create doors that perfectly match your vision, from size and style to finish and hardware. Whether you prefer minimalist designs or elaborate multi-panel configurations, we bring your ideas to life.
