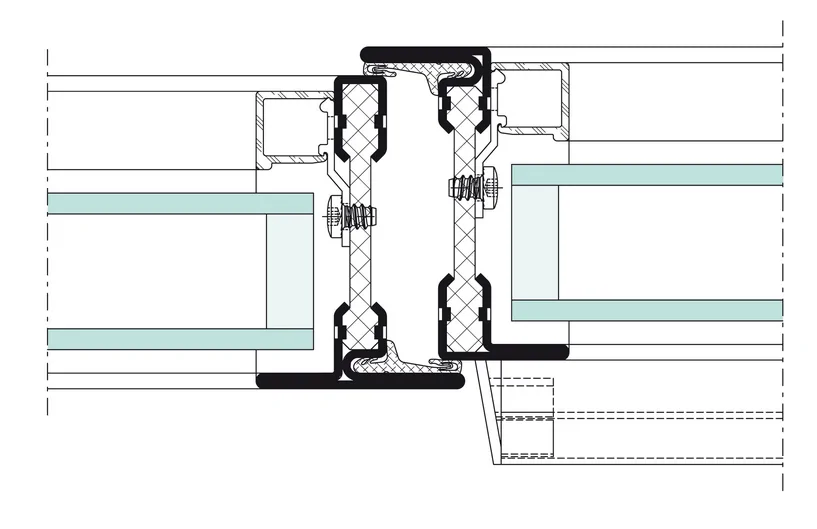

Discover the perfect blend of historic charm and modern performance with Janisol Arte 2.0, an advanced steel window and door system specifically engineered for heritage renovations and contemporary architectural projects. This innovative second-generation system delivers exceptional thermal performance while maintaining authentically slender sightlines.
The system offers unprecedented material flexibility with:
The innovative design includes:
Janisol Arte 2.0 excels in:
Perfect for:
Features include:
The system delivers:
The Janisol Arte 2.0 system offers:

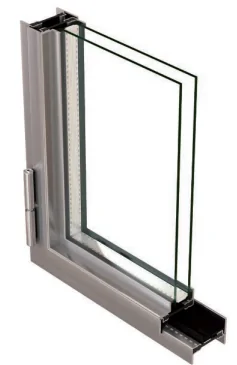

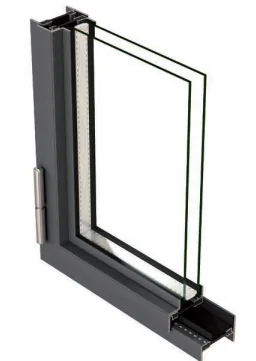

Material | Finish Options |
|---|---|
Strip-galvanized steel | Powder coating or stove-enameling |
Stainless steel 1.4401 | Uncoated or polished |

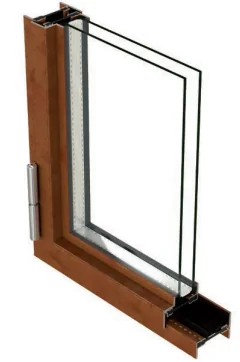

Corten steel | Natural weathering finish |
Windows
Feature | Specification | Standard Units |
|---|---|---|
Fixed glazing width | 25mm | 63/64″ |
Faceplate width | 60mm | 2 3/8″ |
Basic depth | 60mm | 2 3/8″ |
Max sash size | 970 x 2970mm | 3’2 5/32″ x 9’4 23/32″ |
Burglar resistance | Up to RC2 | – |
Side-hung (single/double sash)
Bottom-hung (inward)
Top-hung (outward)
Pivot (horizontal/vertical)
French windows
Fixed glazing
Casement windows
Doors
Feature | Specification | Standard Units |
|---|---|---|
Basic depth | 60mm | 2 3/8″ |
Face width | From 45mm | From 1 3/4″ |
Max leaf height | 2489mm | 8’2″ |
Max weight per leaf | 150kg | 331 lbs |
Durability | 500,000 cycles | Class 7 |
Single/double doors
With/without side lights
With/without top light
Sheet metal clad
Barrier-free options
Zero threshold
|
Property |
Windows |
Doors |
|---|---|---|
|
Thermal transmittance |
Uf from 1.9 W/m²K |
UD > 1.9 W/m²K |
|
Sound insulation |
Up to 45 dB |
Up to 45 dB |
|
Wind load |
C5 (2000 Pa) |
C5/B5 (2000 Pa) |
|
Watertightness |
9A (600 Pa) |
8A (450 Pa) |
|
Air permeability |
Class 4 (600 Pa) |
Class 4 (600 Pa) |
|
Durability cycles |
50,000 |
500,000 |
|
Application Type |
Features |
|---|---|
|
Historic renovation |
Period-accurate profiles, heritage compatibility |
|
Modern construction |
Contemporary aesthetics, high performance |
|
High-traffic areas |
Durable (500k cycles for doors) |
|
Security requirements |
Up to RC2 burglar resistance |
|
Special shapes |
Arched windows with CE marking |
|
Benefit |
Description |
|---|---|
|
Ultra-slim profiles |
25mm fixed glazing maximizes glass area |
|
Material flexibility |
Steel, stainless steel, or Corten options |
|
System compatibility |
Works with Janisol Arte 66 systems |
|
Easy fabrication |
Integrated weatherstrip groove |
CE marking (EN 14351-1)
DIN 18008-4 (Safety glazing)
Various performance class certifications
Environmental Product Declaration (EPD) available
Steel doors and windows offer exceptional durability and strength, resisting warping and weather damage while requiring minimal maintenance. Their slim profiles provide maximum glass area, allowing abundant natural light and creating sleek, contemporary aesthetics. They excel in security with superior break-in resistance and fire-resistant properties. Energy efficiency is enhanced through excellent insulation and weather-tight seals. The design versatility allows custom sizes and finishes to match any architectural style. As a long-term investment, they increase property value while being environmentally friendly due to their recyclability and longevity.
EcoSteel: Where Minimalist Design Meets Unlimited Customization
EcoSteel, our premium brand at EcoWindows, specializes in custom-crafted steel windows, doors, facades, and partition systems that combine minimalist elegance with exceptional functionality for both interior and exterior applications. Each product is meticulously designed using high-quality materials, premium hardware, and cutting-edge technology. Our steel systems feature narrow face widths and expansive glass areas, creating maximum transparency for contemporary spaces while providing robust exterior solutions for architectural facades. We offer comprehensive design approaches for both interior divisions and exterior envelopes, enhancing building aesthetics while maintaining an open, communicative atmosphere. With our modern construction solutions that create large glazed areas, EcoSteel transforms both architectural exteriors and interior spaces through customizable systems available in virtually unlimited color options and configurations. Our exterior steel solutions deliver outstanding thermal performance with advanced glazing technologies that keep interiors comfortable year-round.
